RAYBESTOS 780255R2 Part Description
Manufacturer
Product Description

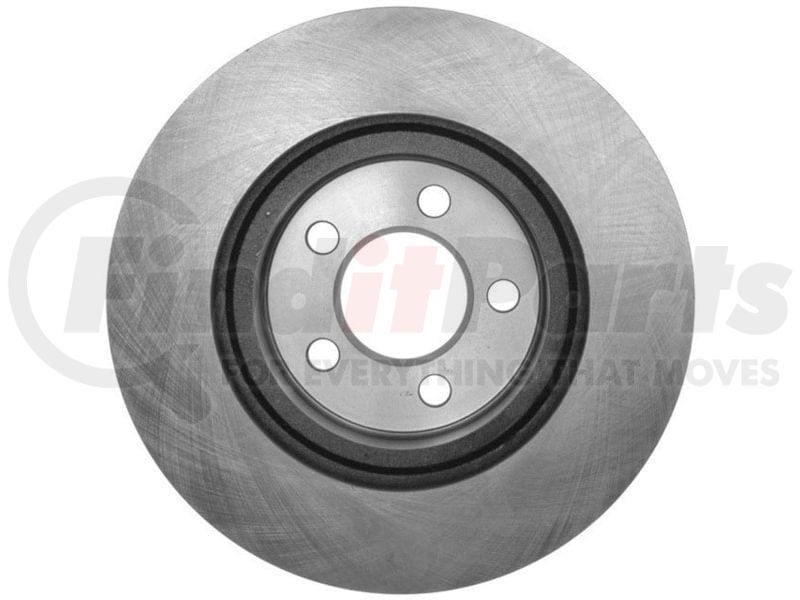

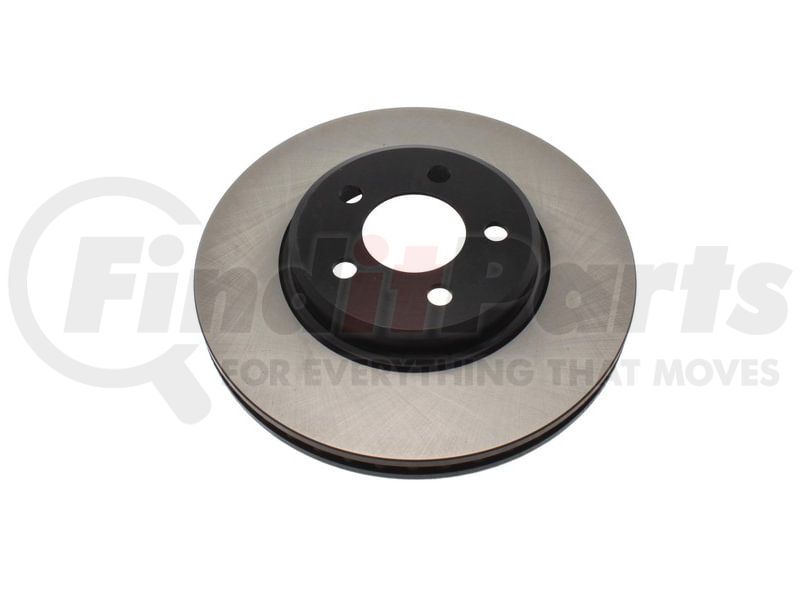

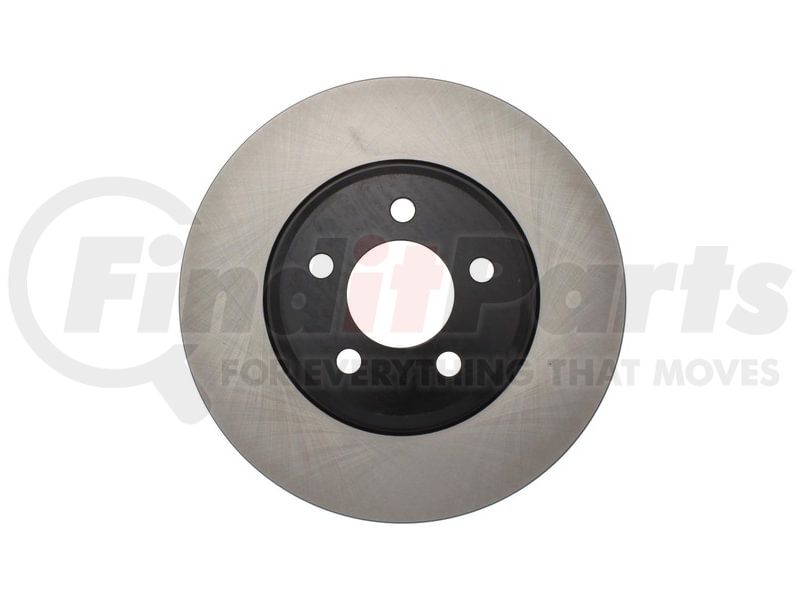

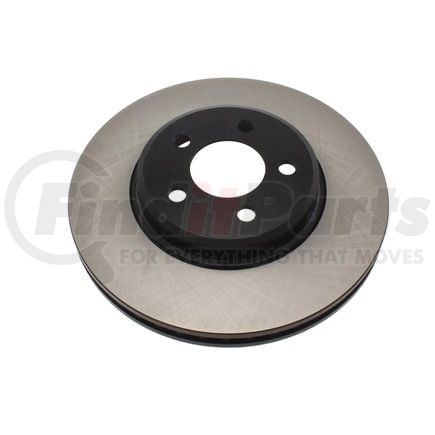

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 780255R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.86 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.043 IN |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Outside Diameter | 12.598 IN |
| Overall Height | 2.15 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 72.65 MM |
| Discard Thickness | 26.5 MM |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Nominal Thickness | 28 MM |
| Outside Diameter | 320 MM |
| Overall Height | 54.6 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213446982 |
RAYBESTOS 780255R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH145650, YH145650C, YH145650P |
| AutoZone | 43086DG, DL53022, 43086DL |
| Autopartsource | 591015 |
| Autoxtra | AX53022, AX901036, AX53022P, AX901036P |
| Bendix | 145650, PRT5650 |
| Bosch | 16010192 |
| BrakeBest | 16010192, 780255, 780255FZN, 780255R, 780255RGS |
| Brembo | 09.A402.10, 27352 |
| Casting Numbers | 204262324, 2042K2036, 211651-C, 326232 |
| Centric Parts | 120.63059, 120.63059CRY, 121.63059, 125.63059, 125.63059CRY, 126.63059CSL, 126.63059CSR, 126.63059SL, 126.63059SR, 127.63059CL, 127.63059CR, 127.63059L, 127.63059R, 128.63059CL, 128.63059CR, 128.63059L, 128.63059R, 227.63059L, 227.63059R, 320.63059, 321.63059 |
| Chrysler | 04779196AB, 04779196AD, 04779196AG, 4755537AA, 4779196AA, 4779196AB, 4779196AD, 4779196AE, 4779196AF, 4779196AG, 4779196AG001 |
| Dura Corp | BR53022, BR5302202, BR901036 |
| DuraGo | 900240, BR53022, BR5302202, BR90240, BR53022-02, BR901036 |
| Mighty Distributing System | 53022 |
| Monroe Brakes | BD126263 |
| Newtek Automotive USA | 53022, R1036 |
| Omnicraft | QBRR89 |
| PowerStop | AR8358EVC |
| Promax | 14-53022, 20-53022 |
| Qualis | 43086 |
| TopNotch | TN780255GEO |
| UAP | 2053022, 53022 |
| Ultra Brake | 53212 |
| WABCO - Archived | PS126263 |
| WORLDPAC | 1407-26856, 1427-499319 |
| Wagner Brake | BD126263, BD126263E |
| Winhere | 6620568 |
RAYBESTOS 780255R2 Fits Vehicles
- Dodge Challenger (2009-2023)
- Dodge Magnum (2005-2008)
- Dodge Charger (2006-2023)
- Chrysler 300 (2005-2023)
