(888) 312-8812 Login SignupCENTRIC 120.63059 Centric Premium Brake Rotor
Tap to view 4 more
$94.51
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.63059 Part Description
Manufacturer
Product Description

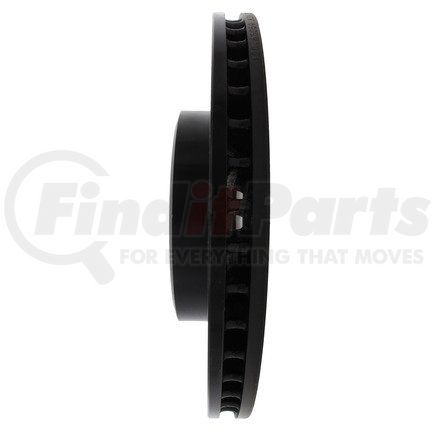

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.63059 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.380 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 20.650 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 26.500 MM |
| Discard Thickness | 1.043 IN |
| Nominal Thickness | 1.106 IN |
| Nominal Thickness | 28.100 MM |
| Hat Finish | Painted |
| Overall Height | 54.700 MM |
| Overall Height | 2.154 IN |
| Outside Diameter | 320.000 MM |
| Outside Diameter | 12.598 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 72.500 MM |
| Center Hole Diameter | 2.854 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.657 IN |
| Stud/Lug Hole Diameter | 16.700 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890210450 |
CENTRIC 120.63059 Cross References
| Brand | Part Number |
|---|---|
| 780255, BD126263 | |
| ADVICS | P6F200U |
| N/A | BD126263, BD126263E, E125-68-064, BR5302202, 43086, 43086G, 4779196AA, 4779196AB, 4779196AD, 4779196AE, 4779196AF, 4779196AG, 145650, 53022, 880255, E12568064, 43086HC, 120.63059, 43086GT, 0204262324, 02042K2036, 43086DSR, 1407-26856, YH145650, 43086DSL, 27352, 780255P, 2053022, 19367, 90039015 |
| NEOTEK | 107079GF |
| Neotek Premium Drums and Rotors | 107079GF |
| PRONTO | BR5302202 |
| RAYBESTOS | 780255, 780255FZN, 780255R, 780255R2 |
| Raybestos Brakes | 780255FZN, 780255R, 780255 |
| WAGNER | BD126263E, BD126263 |
CENTRIC 120.63059 Fits Vehicles
- Dodge Magnum (2005-2008)
- Dodge Charger (2006-2022)
- Dodge Challenger (2009-2022)
- Chrysler 300 (2005-2022)
