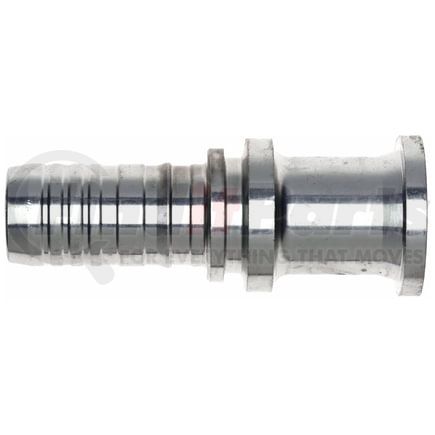

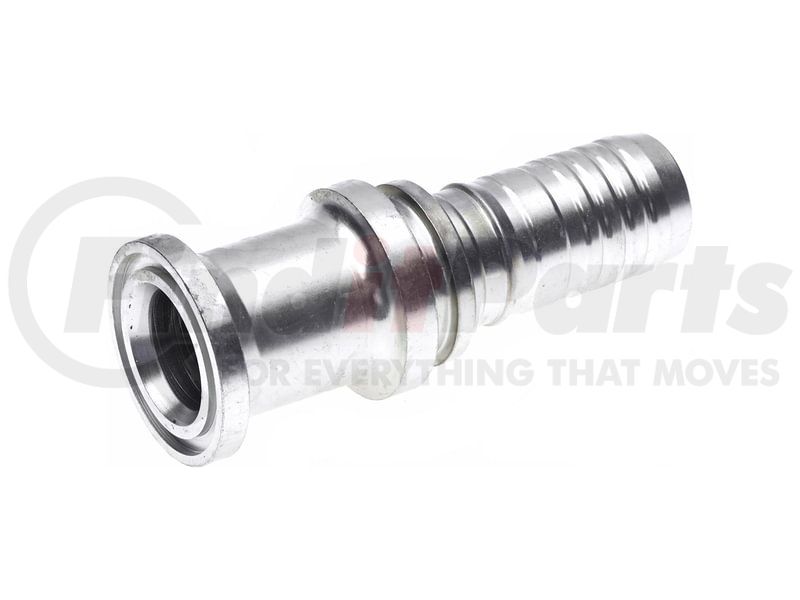

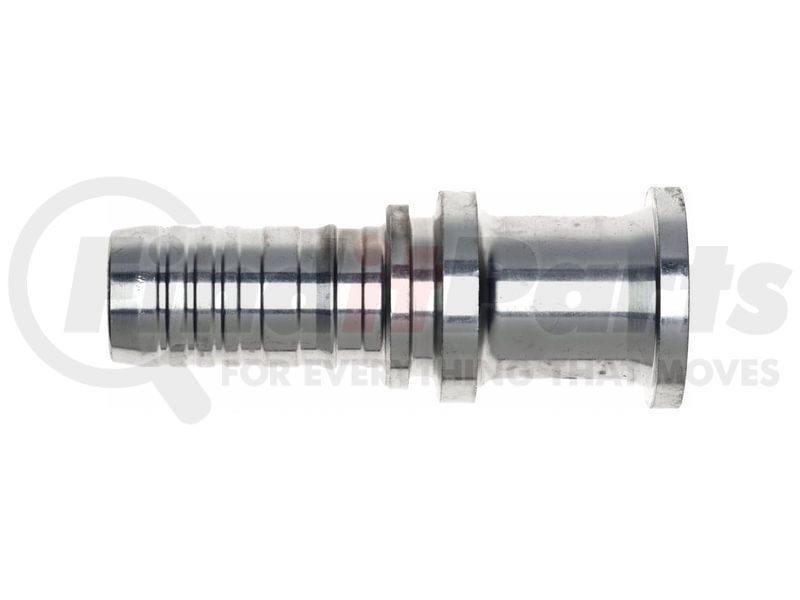

Gates G22300-3224 - Code 61 O-Ring Flange (GlobalSpiral Plus)
$14949
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes

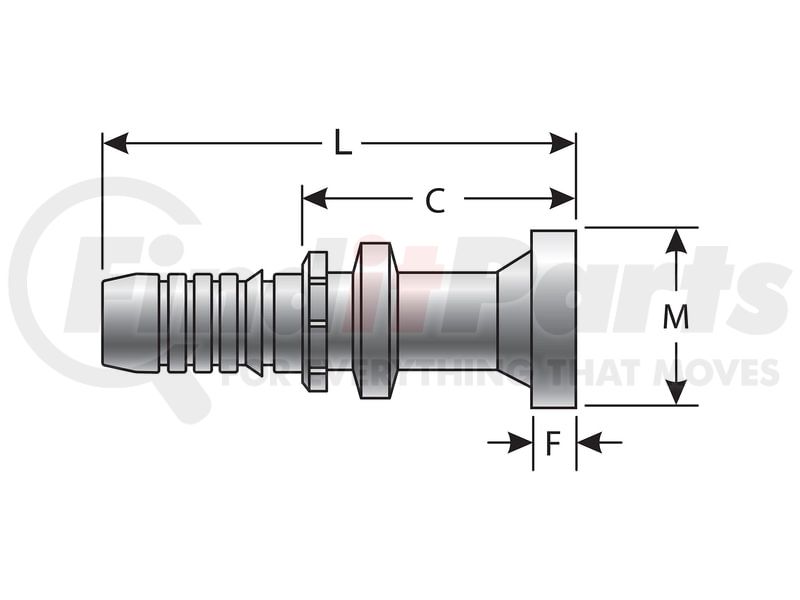

| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange |
| Industrial Description | 32GSP-24FL |
| Inside Diameter | 2 IN |
| 9952 | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Maximum Working Pressure | 3000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| 9929 | 3.19 IN |
| Length | 6.53 IN |
| Inside Diameter | 50.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| 9929 | 80.9 MM |
| Length | 165.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075424857 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
