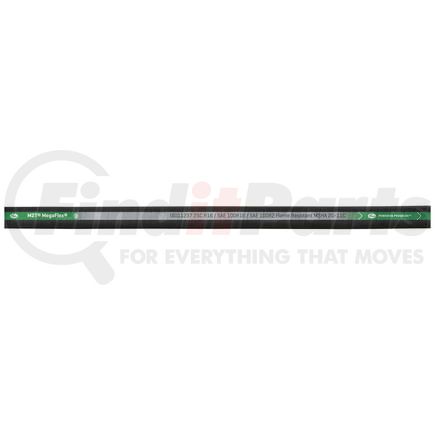

(888) 312-8812 Login SignupGATES 70393 WIRE HOSE
Tap to view 2 more
$1499
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 21
GATES 70393 Part Description
Manufacturer
Product Description
M2T MegaFlex 2-Wire Braid Hose - SAE 100R16
Features & Benefits
- Compatible with GlobalSpiral G20, GlobalSpiral Plus G22, MegaCrimp G25, and Stainless Steel G17 or G18 couplings
- Provides bend radius up to one third of the SAE specification for significantly easier routing in tight compartments
- Tested to an industry-leading 600,000 impulse cycles for maximum reliability in high cycle hydraulic applications
- XtraTuff hose cover technology lasts up to 25 times longer than standard hose materials for extended service
- MegaTuff cover lasts up to 300 times longer than standard hose during rigorous ISO 6945 abrasion testing
- Meets Flame Resistance Acceptance Designation MSHA 2G while offering superior resistance to ozone and environmental weathering
- Maintains consistent performance across a broad temperature range from -40 to 212 degrees Fahrenheit
Gates M2T MegaFlex Hydraulic Hose
The Gates M2T MegaFlex Hydraulic Hose delivers consistent power for high-cycle equipment operating under constant pressure. This wire-braid Gates 70393 hose fits perfectly into tight chassis layouts without kinking or restricting critical fluid flow. Its rugged exterior prevents failure from constant contact with frame rails or mounting brackets during operation. This heavy-duty build ensures hydraulic systems stay pressurized and productive through every hour of service.
GATES 70393 Specifications
Product Attributes
| Product Type | M2T MegaFlex 2-Wire Braid Hose - SAE 100R16 |
| Industrial Description | 10M2TXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3800 PS |
| Burst Pressure | 15200 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .95 IN |
| Bend Radius | 3 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R16 |
| EN Standard | 857 2SC, 853 2SN |
| ISO Standard | 11237 2SC R16, 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | MX |
| Stock Status | S |
| UPC | 00072053318951 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70393 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | FC310-10, FC310-10RL, GH781-10R250, FC640-10RL |
| Dayco | 011460, 11460 |
| Goodyear | GR16-10X250, GR16-10X250RL, GR16-10X50, GR16-10X50BX, GR16SC10X250 |
| N/A | 04029957, EC215-10 |
| NAPA | 70393 |
| Parker | 431-10, 431-10-BX, 431-10-RL |
| Weatherhead | H24510250R, H28010250R, H29010250R, H29010, H28010-250R, H24510-250R |
