(888) 312-8812 Login SignupGATES 38671 TENSIONER
Tap to view 14 more
$21949
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 29
GATES 38671 Part Description
Manufacturer
Product Description

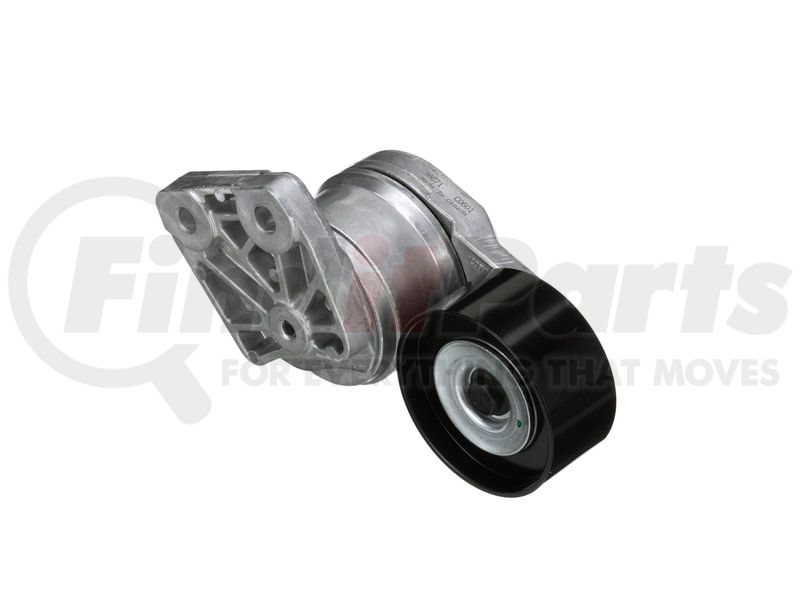

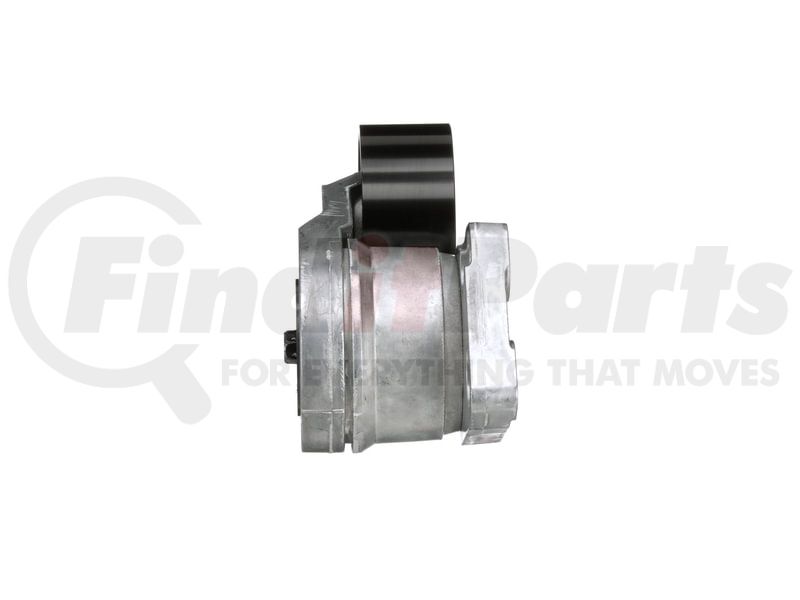

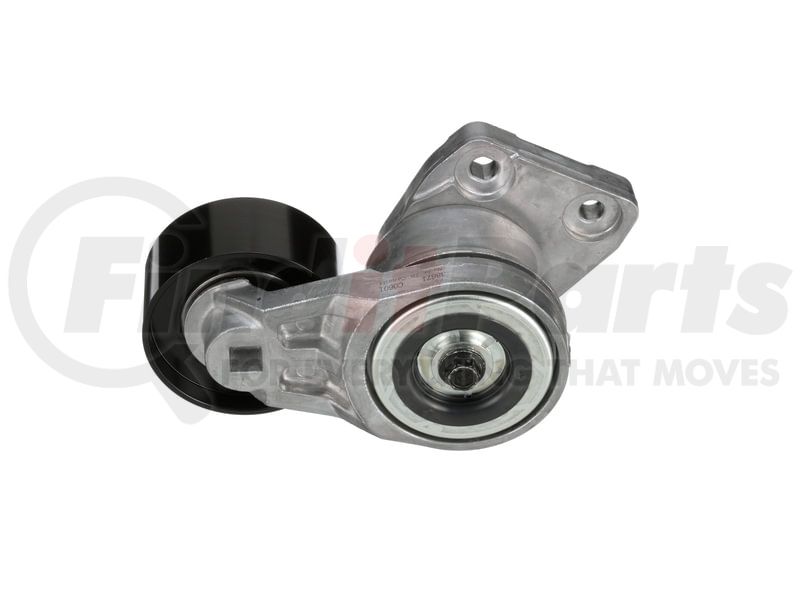

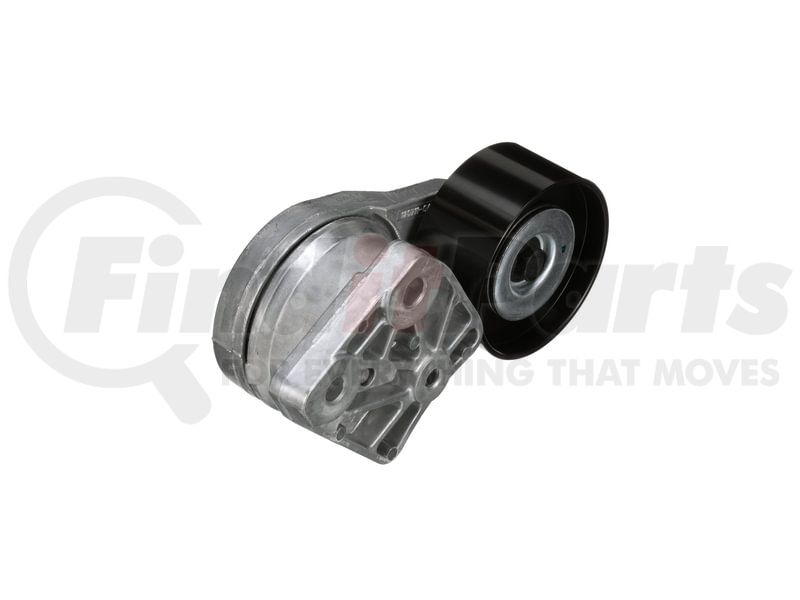

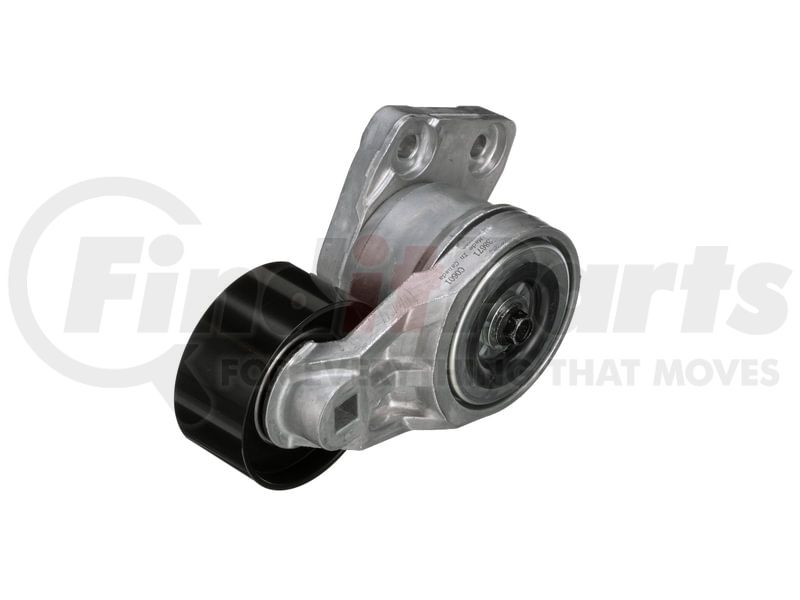

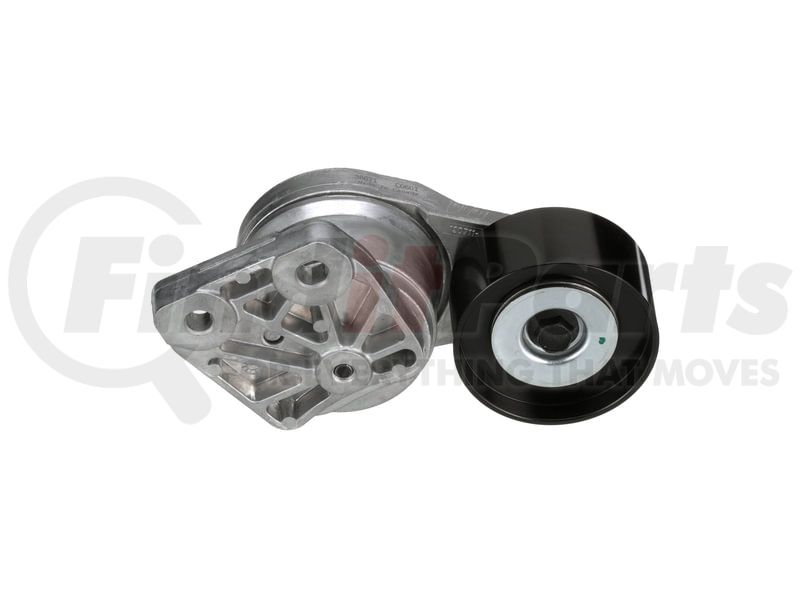

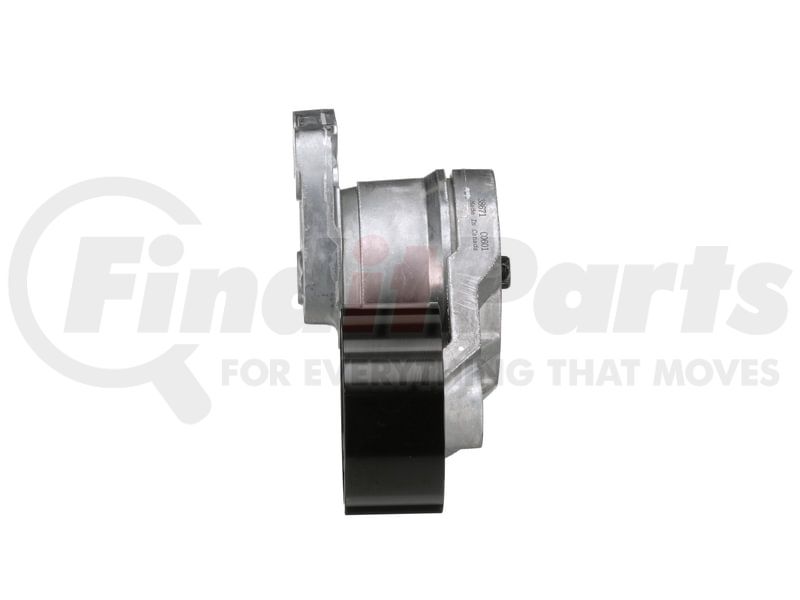

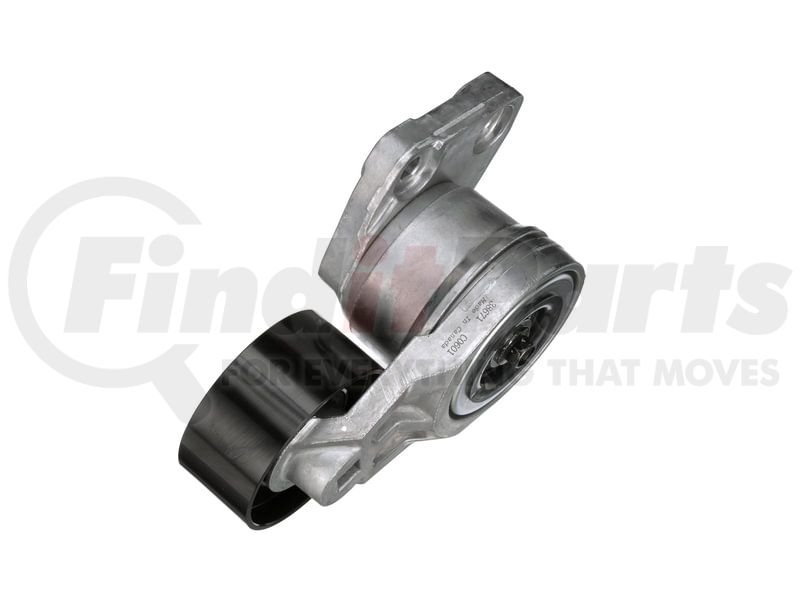

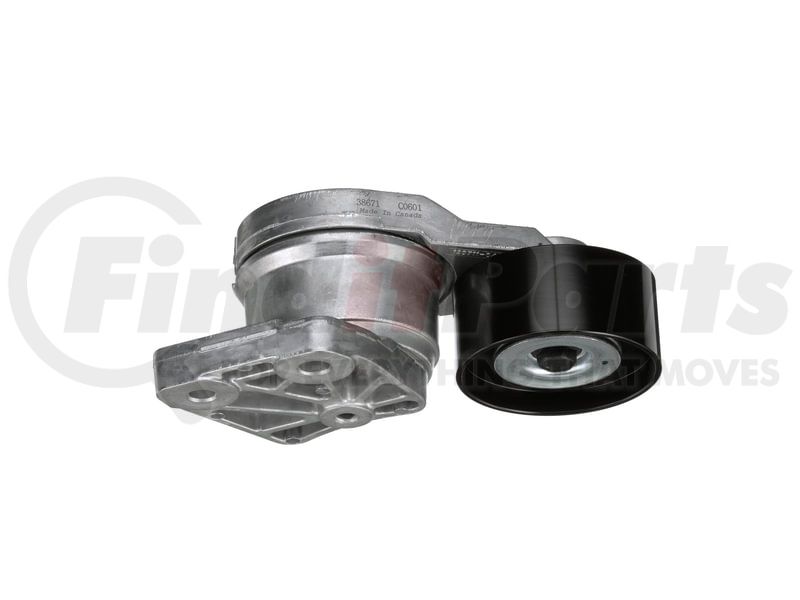

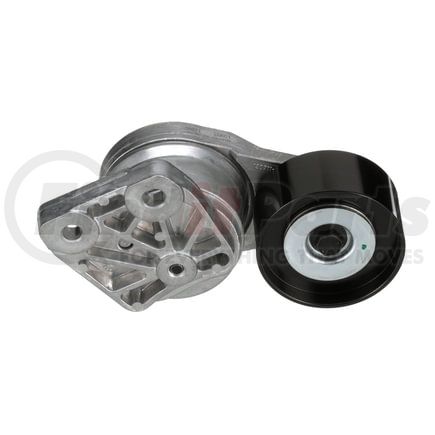

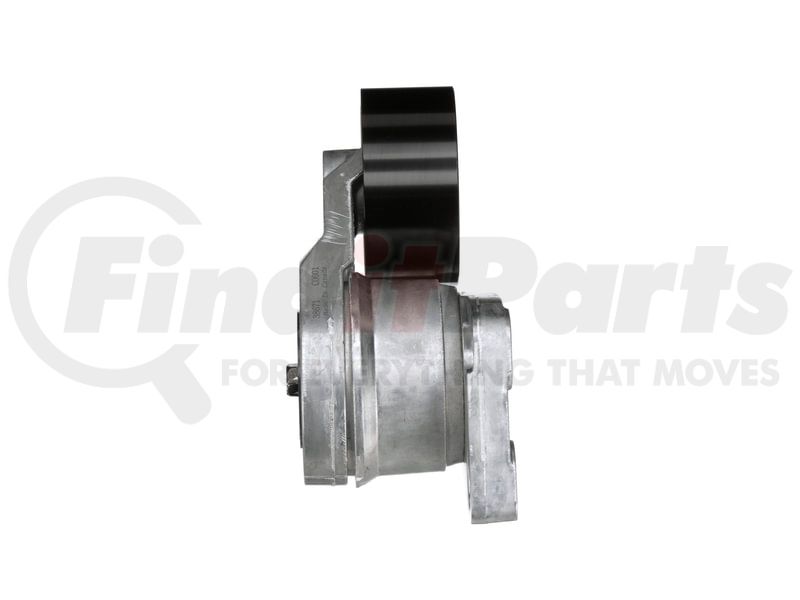

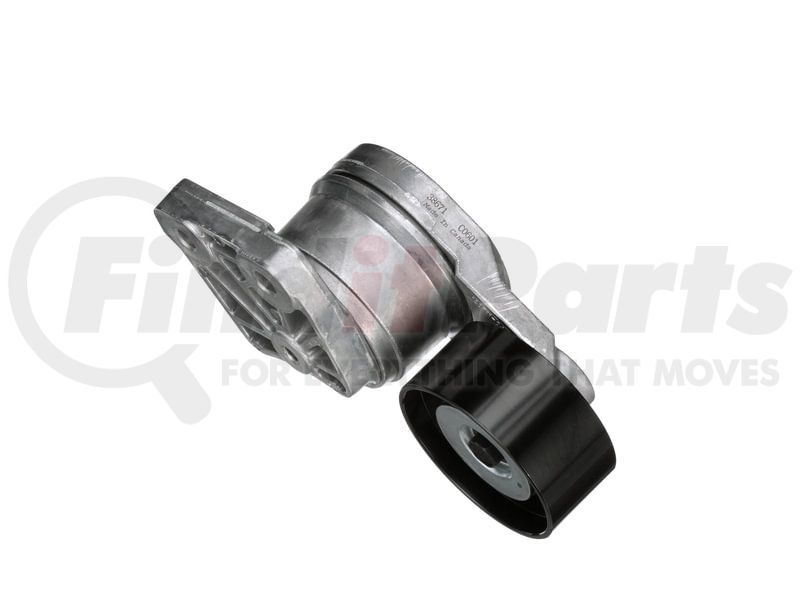

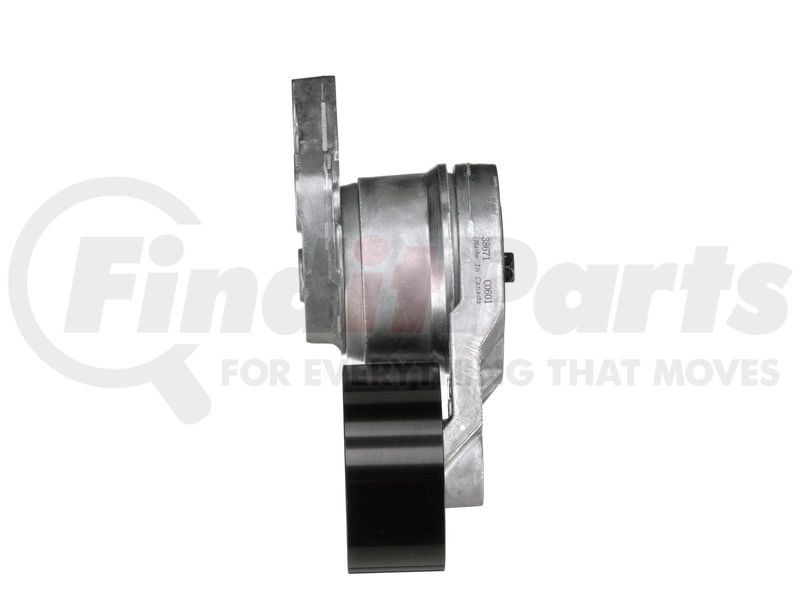

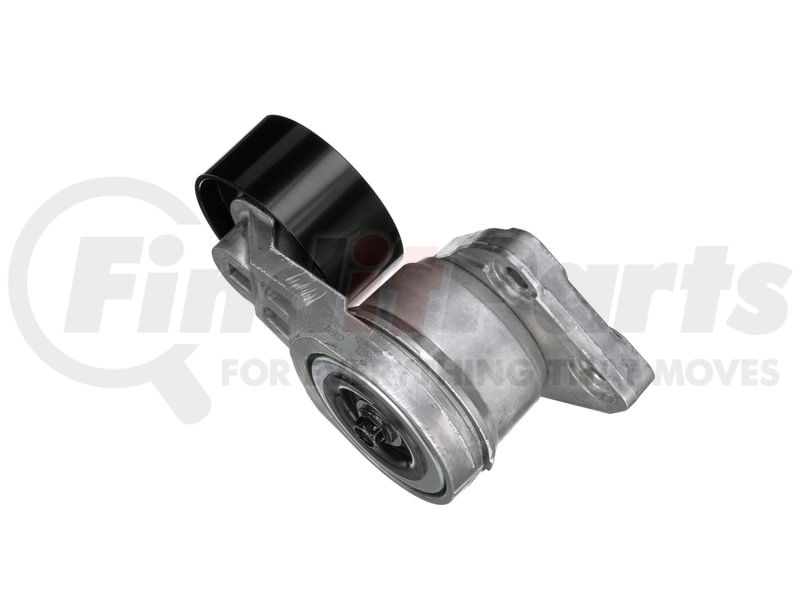

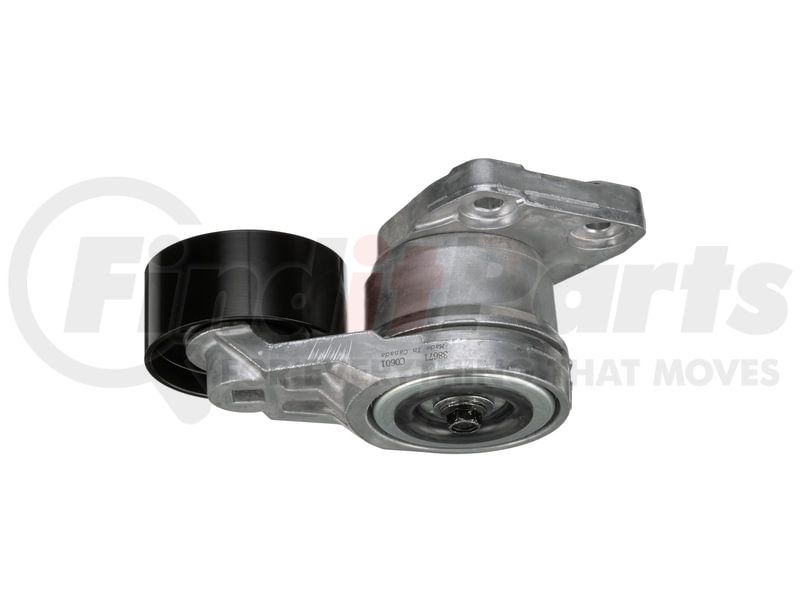

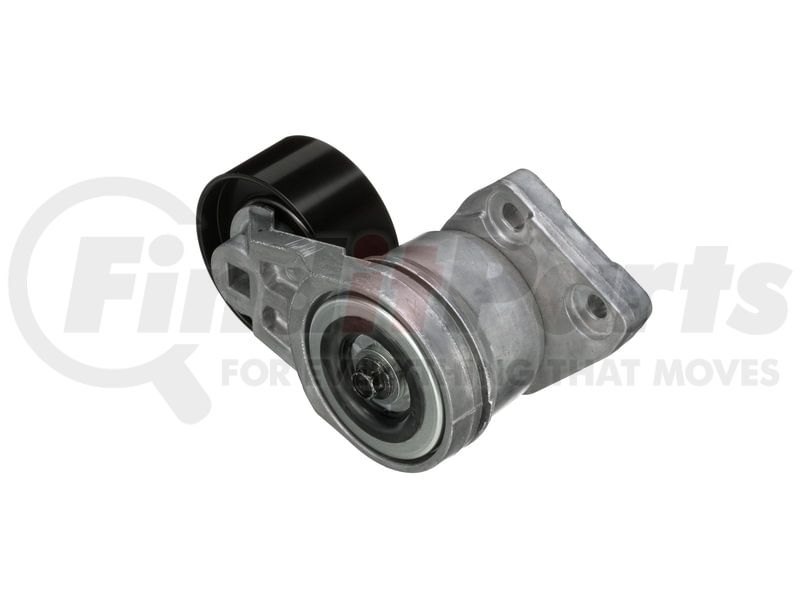

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
Application Summary
2017-07 Volvo, VN Series, Volvo D13 Diesel, Tensioner Assy. - Alt. & A.C.
Features & Benefits
- Spring-loaded arm applies steady pressure against the belt during operation
- Pulley wheel provides a smooth contact surface for belt movement
- Metal housing contains the internal tensioning mechanism
- Pre-assembled unit reduces setup time compared to separate components
- Bracket interface aligns with the engine-side belt routing points
Gates Accessory Drive Belt Tensioner
The Gates Accessory Drive Belt Tensioner keeps the belt system properly tensioned so engine-driven accessories continue operating without interruption. It works alongside pulleys and belts to manage slack and maintain contact across rotating components. In setups where multiple accessories depend on a single belt, consistent tension helps avoid slipping and uneven wear. This assembly supports steady belt tracking across the drive system. The Gates 38671 fits into that belt drive position where controlled tension is required.
GATES 38671 Specifications
Product Attributes
| Grade Type | OE Improved |
| Pulley Quantity | 1 |
| Groove Quantity | 0 |
| Material | Steel |
| Contact Surface | Smooth/Backside |
| Pulley 1 Flanged | No |
| Outside Diameter | 3.41 IN |
| Bearing Bore Inside Diameter | 1.18 IN |
| Width | 1.57 IN |
| Belt Type | V-Ribbed |
| Mounting Hole Quantity | 2 |
| Contents | Tensioner Assy., 2 Bolts |
| Pulley 1 Groove Quantity | 0 |
| Outside Diameter 1 (in) | 3.41 |
| Outside Diameter 1 (mm) | 86.5 |
| Width 1 (in) | 1.57 |
| Width 1 (mm) | 40 |
| Bearing Bore Inside Diameter | 30 MM |
Additional Information
| MSDS Sheet Number | 1330255 |
| Country of Origin (Primary) | CA |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Stock Status | S |
| UPC | 00770075526254 |
| VMRS Code | 042003076 |
| UNSPSC | 26111805 |
GATES 38671 Cross References
| Brand | Part Number |
|---|---|
| GT38671, HL3Z1813000DA | |
| ACDelco | 38671 |
| BANDO | 680032 |
| BWP-NSI | CT49601 |
| CARQUEST | 38671 |
| CONTINENTAL AG | 49601 |
| Dayco | 89477 |
| Dorman | 419-1004 |
| GOODYEAR BELTS | 55176 |
| Goodyear | 49601 |
| KIT MASTERS | 638671, 689477 |
| Litens | 910582A |
| Mack | 21454379 |
| NAPA Belts/Hose | 38671 |
| NAVISTAR | FLT638671 |
| Tendeco | 910582 |
| Volvo Cars | 20762060, 21404578, 21454379, 23669027, 20935523 |
GATES 38671 Fits Vehicles
- Volvo VNR 300 (2017)
- Mack LR600 (2016)
- Volvo VNL 760 (2017)
- Volvo VNL 300 (2016-2017)
- Volvo VNL 670 (2015-2016)
- Mack Pinnacle (2018)
- Volvo VNR 640 (2017)
- Volvo VNR 400 (2017)
- Volvo VNL 740 (2017)
- Volvo VNL 400 (2017)
- Volvo VAH 430 (2017)
- Volvo VNL 860 (2017)
- Volvo VNL 630 (2015-2016)
- Volvo VNL 430 (2015-2016)
- Mack TerraPro (2015-2017)
- Volvo VNM (2007-2017)
- Volvo VNL (2007-2017)
- Volvo VAH (2011-2017)
- Volvo VHD (2007-2017)
- Mack CHU (2008-2018)
- Mack GU8 (2008-2017)
- Mack CTP (2007)
- Mack GU7 (2008-2017)
- Mack CXP (2007)
- Mack CXU (2008-2018)
- Mack LEU (2008-2016)
- Mack MRU (2008-2017)
GATES 38671 Customer Reviews
No reviews yet
Be the first to review this product!
GATES 38671 Manufacturer Information
The Gates Corporation® helps keep the industry running by providing top-of-the-line solutions that minimize downtime and lost production. From trucking and automotive to mining and specialty manufacturing, Gates provides best-in-class belts and power transmission solutions that maximize the production and capabilities of top companies, making them outshine the competition. Gates Corporation had its beginnings in 1911, when Charles C. Gates purchased a tire and rubber company and established a shop in Denver, Colorado. More than 100 years later, the small, family-owned company has grown into a global leader, employing over 15,000 people in its 100 facilities in 30 countries. Gates Corporation’s product portfolio includes power transmission parts, fluid power solutions, and many other products for various applications including automotive, construction, bicycles, consumer equipment, heavy-duty industrial equipment, food and beverage, and HVAC equipment.
GATES 38671 Questions & Answers
No questions yet
Be the first to ask a question about this product!
