GATES 9480 Automotive XL High Capacity V-Belt

★★★★★ (0) Write a Review

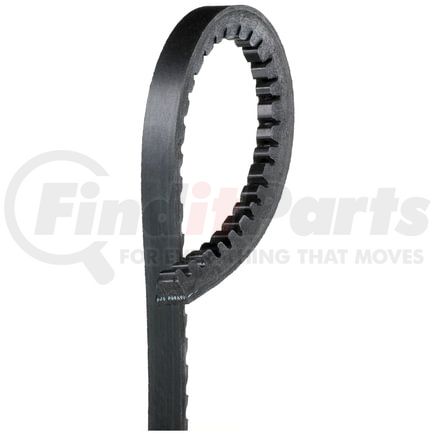

9480 by GATES - Automotive XL High Capacity V-Belt
GATES
Tap to view 1 more

MSRP: $75.32

$23.99

Save $51.33

Limited availability at this price!

In Stock

Get it by Thursday, Jan 8
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

GATES 9480 Part Description

Manufacturer

GATES

Product Description

Automotive XL High Capacity V-Belt

Application Summary

1995-1990 Toyota, Pickup, V-6 3.0 L, P.S.

Features & Benefits

  • Fiber-loaded rubber stock adds flexibility along the length of the belt and provides greater lateral stability in the pulley
  • Form-ground to ensure precise top width and sidewall dimensional control for proper fit to the pulley
  • Thermally-active tensile cords for maintenance-free performance when properly installed and tensioned
  • Resists oil, heat, ozone, weather and aging for improved belt life
  • Meets or exceeds SAE J636C specifications

GATES 9480 Specifications

Product Attributes

Type High Capacity V-Belt (Standard)
Cross Section Designation HC50
Angle 36
Strand Quantity 1
Top Width .47 in
Outside Circumference 48.61 in
Effective Length 48 in
Construction Notched
Notched Yes
Belt Material EPDM
Cord Material Polyester
Top Width 12 mm
Outside Circumference 1235 mm
Effective Length 1219 mm

Additional Information

Harmonized Tariff Code (Schedule B) 4010323000
Country of Origin (Primary) US
UPC 00072053312201
VMRS Code 065005003
UNSPSC 26111801

GATES 9480 Part Interchanges

Brand Part Number
Beck/Arnley 141-0877, 145-041225
Bosch 1987947664, 910416-2245, 916416-2245
Carlisle CR400344
Carquest Red 17480
Mopar B-17481-A, B-17484-A, BH-140
Motorcraft EJE-122, EJE-123, EJM-480, EJW-483, JC-481, JC-483, JC-483-L
Mighty 17480
Sierra 18-17480
White 027000345, 027015399, 027016057, 027018399, 027018526, 027070989, 027074377, 027131286, 027137174, 049038205, 1068262, 1BM0510, 206373, 235291, 235291A, 3110K145, 3110K162, 311679590, 35A8524, 35A8786, 400004631, 48375B, 6311333, 6406042, 81691A
ACDelco 9480HD, 17480
Dayco 13V1220, 17480, 17480DR, 17483, 175M, 422889, 425047, 425450, 426963, 427684, 427971, 429465, 429600, 430316, 43091, 432694, 432953, 432972, 432976, 433896, 433961, 434561, 434732, 434980, 439020, 43919, 446, 45607, 47767, 47790, 47939, 47949, 48017, 48030, 48202, 48232, 48240, 48353, 48447, 48458, 48471, 48493, 48622, 49222, 49438, 49914, 50972, 51109, 51119, 51382, 51875, 53186, 53400, 53679, 54089, 54125, 54134, 54571, 54873, 55041, 55091, 55155, 55193, 55284, 55286, 56590, 56713, 57073, 57347, 57378, 57382, 58072, 58301, 58335, 58345, 58356, 58549, 58603, VT1231
BF Goodrich 16484, 239
Firestone 51308093
Ingersoll/Rand 35360791
Leece-Neville 53984
Carquest 9480HD, 9480
WABCO 508344, SA46
AM General MS5106648
Acme Machine A46HC
AGCO 70227471, 70227471V, 71152788V, 71369747
Allis Chalmers 1011991, 1152788, 199281, 227470, 227471, 256935, 303526658, 4512419, 4783652, AX64218, 4028740
American Marc 11200
American Motors Corp (AMC) 3143343, 3157290, 3158585, 3187099
Armormark 17480
Atlas (Canada) A16484
Bando 3470, 4480, B3470, RPF4480
Bendix-Westinghouse 236822
Carrier Transicold 500020401, 773100516, A3100516, KR60AC048
Case Tractor 378113R2, A135265, A35980, L104202, L112651, S86213
Caterpillar 1H9348, 2552927, 344212, 619515, 6L6161, 6L6554, 7M6103, 9480, 9L0619, 9L2209, 9L2248, 9L619
Checker Motors 704082
Chris Craft 169707552, 7552
Chrysler 1617784, 1617785, 2829321, 2829322, 2846023, 2846939, 4106234, J3143343, J3157290, J3158585, L50480A46
Clark Equipment 100C1585B, 100C1585D, 1320218A, 352780, 355029, 5204061, PGF15038, PGF16698, PGF16698A, PGF18632
Climax Engr 41267, 412674
Columbus 17480
Continental Belt 6578720, 6578762, 6587473, 6588135, AV13-1225, AV13-1230, AV13-1675, V603
Coolaire 1905
Cummins 178386, 239495, 3040307, 69393
Datsun/Nissan 11720V2010, 1175007W00, 11750V2010, 11750Y4015
Deutz 1161699, 1161701, 1161746, 1168321
Deutz-allis 70199281, 70227470, 71152788, 72161393, 74512419
Diamond Reo 3854B1480, 3855B1480
Dresser 188839H1
Dunlop 3480
Elgin Sweeper S7864, S9066
Epton 16484, 239
FiatAllis 71011991
First Products 17-480
Fleetrite ZAH17480, ZJG17481, ZJG17484
Frigiking 0401483, 116246
Generac 30885
General Motors 0312857, 11502364, 1951949, 2386146, 2430929, 3724317, 5007864, 5126765, 5133760, 5134212, 5155591, 5177316, 6326788, 9164085, 9201651, 9433901, 5133319, 9005142
ContiTech 13X1225, AV5480
MasterPro 17480, 9480
Ford 69MF 8A615 BAA, 725F 8620 BAA, 74TF 8620 EA, 82MF 8A615 AA, C1TE 8620 S, C1TE 8A615 R, C2OE 8620 L, C2TE 8620 R, C9PZ 8620 CD, D0HA 8620 AJ, D0HA 8620 AU, D0HA 8620 JA, D0TE 8620 F, D0TE 8620 L, D0TZ 8620 D, D2TE 8620 AR, D2TE 8620 ARA, D2TE 8A615 FA, D2TE 8A615 JA, D3HA 8620 BA, D3HE 8620 BA, D3NN 10C318 E, D4HE 8620 CA, D4TZ 8620 D, D5TE 8A615 AB, D9TE 8A615 DA, F6HT 8620 ACA, F6HT 8620 ANA
Toyota 9091602196, 909160219683, 9932201210, 9932201220, 9933201200, 9933201210, 9952211210, 9952211218, 9952211240
Honda 38920PA1003, 38920PA1004
Sterling D0HA8620AJ
Mitsubishi MB378449
Mercedes-Benz 0080329030
Subaru (cars) 73036GA290, 73036GA290PSC, SOA438A444
Volvo Cars 958544, 966395, 967125, 967126, 967189, 967252, 967253, 978756, 978757, 978758
International Harvester (IHC) 146936R1, 149636K11, 149636R1, 149636R11, 149636R2, 149636R21, 186914H1, 188839, 243607R1, 310081R1, 310081R2, 358326C91, 372596R1, 378113R1, 4052693R1, 686615C91, 998233R1, L17481
John Deere RE25563A
Massey Ferguson 1030166M1, 3324169M1, 525906M1, 525906M1A
Hyster 104728, 108024, 168315
Oshkosh 1349470, 68658A
Towmotor B66694C3, C629028C7, C629029C33, C629029C47
Western Auto 77-9801-0
Hall Scott 311333
Hesston 700707211
Komatsu 358236C91
Kysor 300089
Lathrop P2646
Lazorlite L38-1170
Lehman A1200
Leroi 4145
Lincoln Electric T14162
Mac-Don K258561
MAN 06580722302, 06580722312
Minneapolis Moline 35A8796
Mitsuboshi MF6470, RECMF2485, RECMF6470, REMF2485, REMF6470
New Holland 259346, 616163
New Idea 735416
Optibelt 2245
Pacific Car & Foundry 17484, 2800044481
Petro-Canada 13G1220
Roadmax 17480AP
Sears 67624
Steiger Tractor 061582, 903513T1
Terex 15018948
Thermo-King 07604, 07798, 2028B89H36, 2028B89H38, 78204
Thomas Built Buses 61160534
Ultralast 17480
Flennor AVX13X1225LA
Waukesha 159059, A135303, A159059, A1590591, A163585, WS208981, 135303, 135303B, 412675
Mack 88GB177P4, 88GB29301P5
Freightliner Trucks 17482, 2310001067, GAF1891310
Miller 033212, 033213
Palmer 13253
Goodyear 1146H, 1251225, 1340H, 13AV1225, 17480MK, 17481
Volvo GM Heavy Truck V1090820, V1090977
Parts Master 17480
NAPA Belts/Hose 25-9480HD, 25-9480
Cadna Belts and Hose 17480
Alliance Truck Parts GT17482E, GAF1891310E, GT17482, GTFLN9480
ARA Manufacturing 0110046
Autopar FB17480, FB222
Durkee-Atwood 16-482, 17-482, 17-484
FMC 54590
Globe Lifeline 4848
John E. Mitchell 11392, 11393, 12492, 12599, JEM46
Kiekhaefer 5714458
Lift Parts 15617484
Marmon MP0849
MBL Three Stars 17480
NAPA 17480, 25-12205, 401-9480
PIX A-259346, A-311679590, A-525906M1, A-71152788
Powertest P848
Pro-1 P9480
Service King 6248
Teledyne Continental F224K231, F226K285, F226K286, F244K231
Temp Con 0200103
Thew B56889, D56889
U.S. Government 3030002570727, 3030008324312, 8331377, 8333137, MS51066P48
United Tractor 36252
Volvo White 208045075, 208045121
Yale 500400920, 900534806
Perkins 0070119, 2612419, 2614B045, 2614B046, 2614B145, 2614B146
HD Value 17480HDV
<Unknown> 0000323722, 0023255195, 0029979892, 0034939800, 007014, 0227470, 06580432230, 06580452230, 06580470230, 06580472230, 068260849E, 068903137AE, 0857509200, 12B307, 1320218, 1475778, 149636R22, 1496918, 1542571, 1608672, 1608673, 163721301071, 1PS398, 206373A, 208981, 215523, 23223133, 23223136, 23223279, 2400044481, 243607R11, 246307R1, 246307R11, 2612420, 265135, 2672479, 2899321, 3014841, 3026011, 3052279, 3081850, 323879, 357280, 400004608, 41129, 4164774, 4766720100, 487, 489318382, 4946, 5000041514, 5000043202, 5000182325, 5000666898, 5000686895, 50480A46, 5207156, 535698, 6025814, 6109565, 674E8620, 7013300189, 705411, 720500201, 7B7974, 814195, 82401269, 83TF6C301CA, 90003142543, 9059759, 912248, 958499, 960972M1, 971180029, 976252, 9867788, 9952211232, 9L4428, A0029979892KZ, A113527, A168315, B76703, B78087, C1TE 8A615 E, C1TE8622N, D0TE 8A615 A, D9368, J20119N, PGF19429B, RE25617, SA3986, SA4166
Metric 11.9X1214LA, 13A1220
Size Designation 125X1225

GATES 9480 Fits Vehicles

  • Kenworth K300 (1995-1996, 2000-2001)
  • Freightliner FLB (1994-1995)
  • Freightliner FLA086 (1989-1994)
  • Autocar C / DC (1985)
  • Freightliner FLD120 (1989-1996)
  • Freightliner FLC112 (1989-1996)
  • Freightliner FLD112 (1991-1996)
  • Volvo VN (1998)
  • Western Star 6900 (1989-1990)
  • Western Star 4900 (1981-1990)
  • Western Star 4800 (1981-1990)
  • Peterbilt 379 (1987-1994)
  • Peterbilt 378 (1988-1995)
  • Peterbilt 377 (1992-1994)
  • Peterbilt 359 (1984-1987)
  • Kenworth C500 (1988-1990)
  • Peterbilt 375 (1987-1993)
  • Peterbilt 357 (1987-1995)
  • Peterbilt 270 (2001)
  • Freightliner XC (2004)
  • International 1824 (1982-1984)
  • International 1724 (1982-1984)
  • Freightliner FL80 (1992-1994, 1997, 1999-2000, 2003-2005)
  • Freightliner FL50 (1997-2000)
  • Freightliner FL60 (1992-1994, 1997-2000, 2003-2004)
  • Freightliner FL70 (1992-1994, 1997-2000, 2003-2005)
  • Mack MS300T Mid-Liner (1981-1991)
  • Mack MS300P Mid-Liner (1981-1991)
  • Mack CS300T Mid-Liner (1986-1991)
  • Mack CS300P Mid-Liner (1986-1991)
  • International S1824 (1982-1984)
  • International S1724 (1982-1984)
  • International S1723 (1981-1985)
  • International S1624 (1982)
  • Jeep Willys (1950-1957)
  • Ford Fairlane (1962)
  • Ford M-450 (1974)
  • Ford M-400 (1973)
  • Fargo A100 Van (1967-1968)
  • American Motors Classic (1961)
  • American Motors American (1960-1962)
  • American Motors Rambler (1960)
  • Jeep FA-134 (1958-1960)
  • Jeep 475 (1956)
  • Hudson Wasp (1955)
  • Jeep FJ3 (1964)
  • Jeep CJ5A (1966-1968)
  • Jeep Commando (1967)
  • Jeep Utility (1961-1962)
  • Ford LT9513 (1996)
  • Sterling Truck LT7500 (2001)
  • Dodge M300 (1969-1973)
  • Fargo A108 Van (1967-1968)
  • Jeep F4-134 (1957-1962)
  • Ford LN600 (1980-1985)
  • Ford LN800 (1980-1984)
  • Ford LN700 (1980-1985)
  • Ford L800 (1980-1985)
  • Ford F-800 (1980-1991, 1997-1998)
  • Ford F-700 (1980-1998)
  • Ford F-600 (1980-1994)
  • Mitsubishi Fuso FE (1990-1995)
  • Mitsubishi Fuso FG (1990-1993)
  • Jeep CJ6A (1966-1968)
  • Jeep F-134 (1963-1965)
  • Jeep FJ3A (1961-1964)
  • Mercury Villager (1962)
  • Ford F-700 LPO (1990-1998)
  • Toyota Crown (1968-1970)
  • Ford L900 (1981)
  • Ford LT800 (1981-1984)
  • Ford LN900 (1981)
  • Ford LNT900 (1981)
  • Ford LNT800 (1981-1984)
  • Mercury Meteor (1962)
  • Jeep Universal (1961-1967)
  • Jeep Jeepster (1967-1971)
  • Sterling Truck Acterra (2004-2007)
  • Jeep F4 (1957-1960)
  • Jeep DJ6 (1965-1968)
  • Jeep DJ5 (1965-1971)
  • Jeep DJ3 (1959-1966)
  • Jeep Dispatcher (1961-1967)
  • Ford FT800 (1983-1990)
  • Jeep CJ6 (1959-1971)
  • Sterling Truck ST9500 (1999-2000)
  • Jeep CJ5 (1959-1971)
  • Jeep CJ3 (1959-1968)
  • Ford F-600 LPO (1990-1994)
  • Ford Ranchero (1961-1962)
  • Ford LNT9000 (1981-1984, 1987-1997)
  • Ford LTL9000 (1982-1990, 1992-1995)
  • Ford LN9000 (1981-1984, 1986-1997)
  • Ford LL9000 (1987-1990, 1992)
  • Ford LTLS9000 (1992-1993, 1996-1997)
  • Ford LTS9000 (1981-1997)
  • Ford LTLA9000 (1992-1993, 1996-1997)
  • Ford LTA9000 (1990-1997)
  • Ford LT9000 (1981-1997)
  • Ford LS9000 (1990-1997)
  • Ford LLA9000 (1992, 1996-1997)
  • Ford LA9000 (1990-1997)
  • Ford L9000 (1981-1997)
  • Ford CLT9000 (1981-1986)
  • Ford CL9000 (1981-1986)
  • Sterling Truck L9513 (1999-2000)
  • Sterling Truck L9511 (1999)
  • Sterling Truck L9501 (1999-2000)
  • Sterling Truck A9513 (2000)
  • Sterling Truck AT9522 (1999-2000)
  • Sterling Truck LT9522 (1999-2000)
  • Sterling Truck LT9513 (1999-2002)
  • Sterling Truck LT9511 (1999-2000)
  • Sterling Truck LT9501 (1999-2000)
  • Sterling Truck AT9513 (1999-2000)
  • Sterling Truck L9500 (1999-2003)
  • Sterling Truck LT9500 (1999-2003)
  • Sterling Truck AT9500 (1999-2003)
  • Sterling Truck A9500 (2000-2003)
  • Nissan Maxima (1984)
  • Dodge MB300 (1970-1973)
  • Dodge RM300 (1971)
  • Dodge RM350 (1971)
  • AM General DJ5 (1969-1971)
  • Sterling Truck Acterra 7500 (2004-2007)
  • Sterling Truck Acterra 6500 (2004-2007)
  • Sterling Truck Acterra 5500 (2004-2007)
  • Ford Falcon Sedan Delivery (1961-1962)
  • Ford Falcon (1961-1962)
  • Dodge A100 Truck (1967-1968)
  • Toyota T100 (1993-1994)
  • Nissan 720 (1981-1983)
  • Toyota Pickup (1988-1995)
  • Toyota 4Runner (1988-1995)
  • Lincoln Continental (1977-1979)
  • Ford Maverick (1976)
  • Mercury Marquis (1978)
  • Mercury Grand Marquis (1978)
  • Mercury Monarch (1976-1977)
  • Lincoln Mark V (1977-1979)
  • Mercury Comet (1961-1962, 1976)
  • Ford Granada (1976-1977)
  • Ford LTD (1978)
  • Subaru RX (1988-1989)
  • Subaru Loyale (1990)
  • Subaru GL (1988-1989)
  • Subaru GL-10 (1988-1989)
