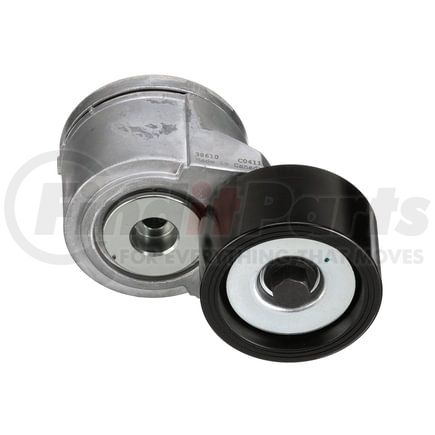

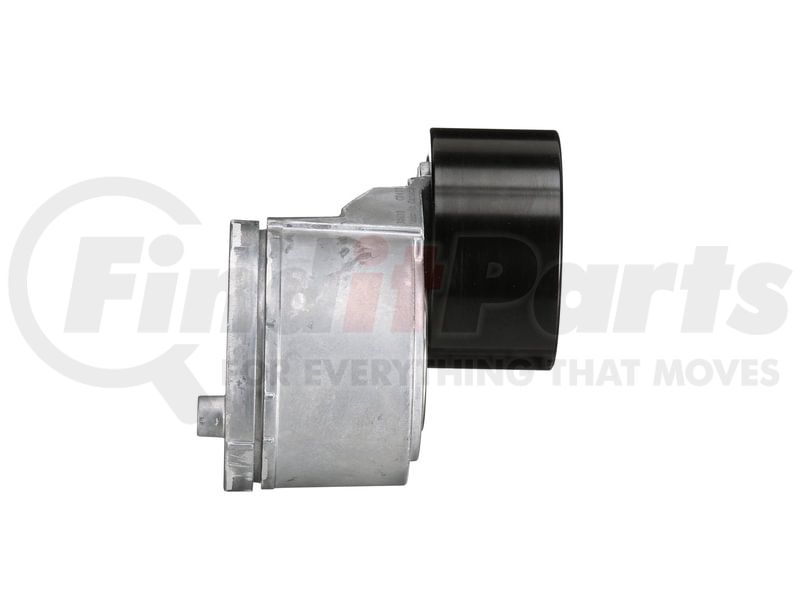

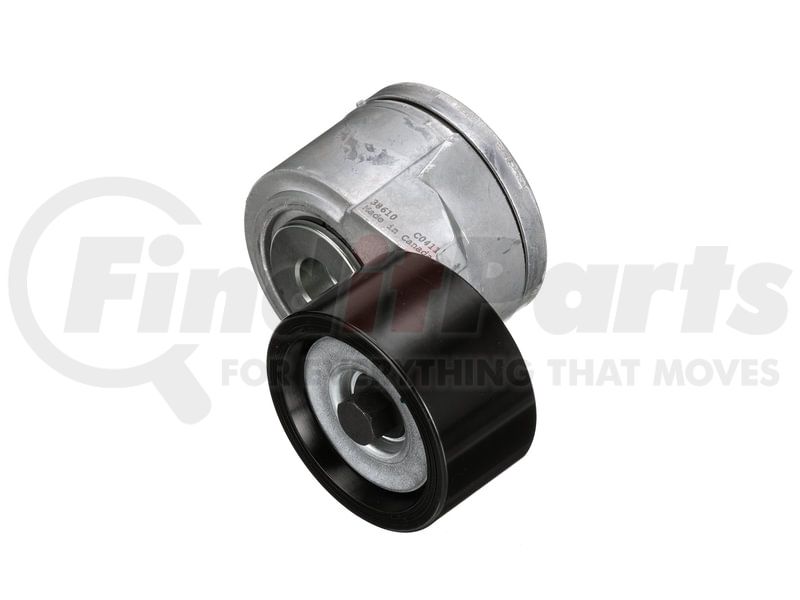

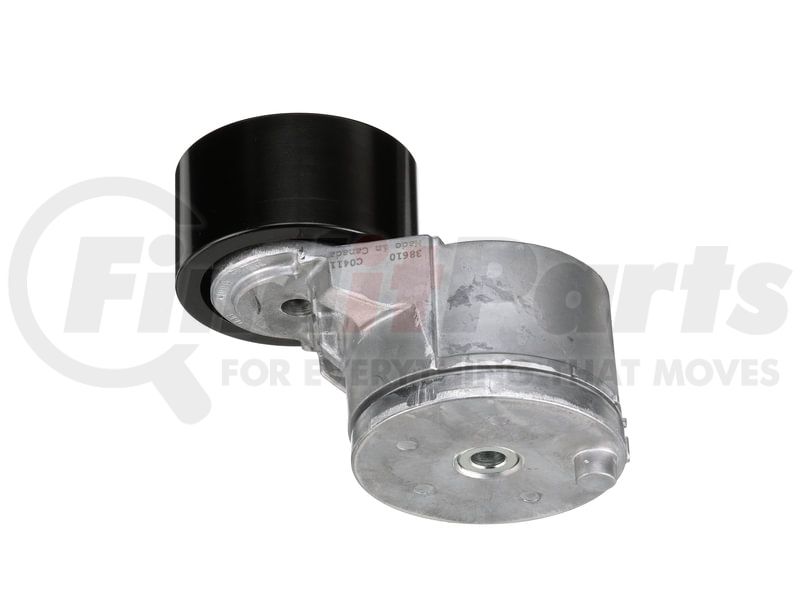

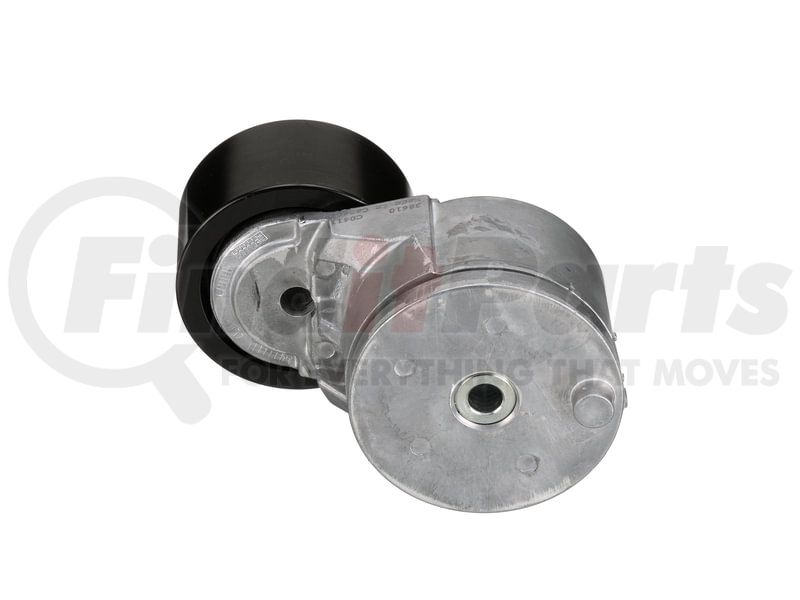

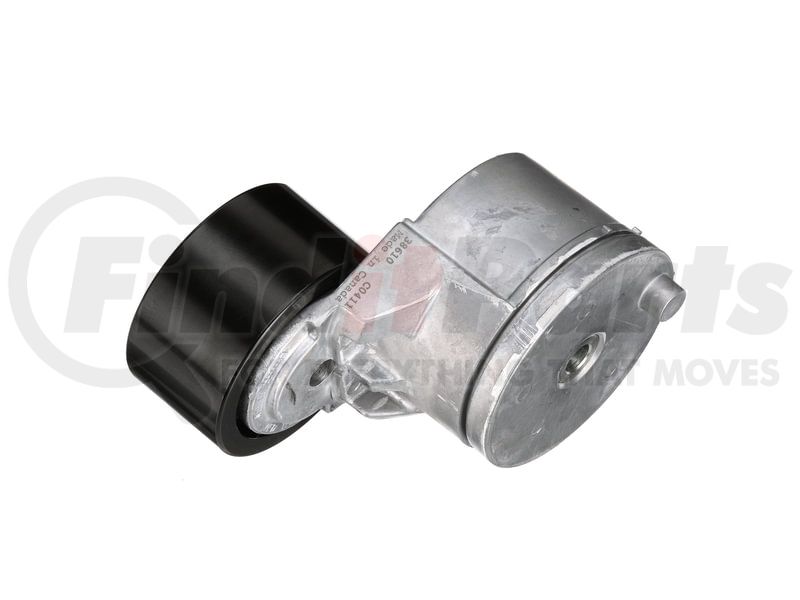

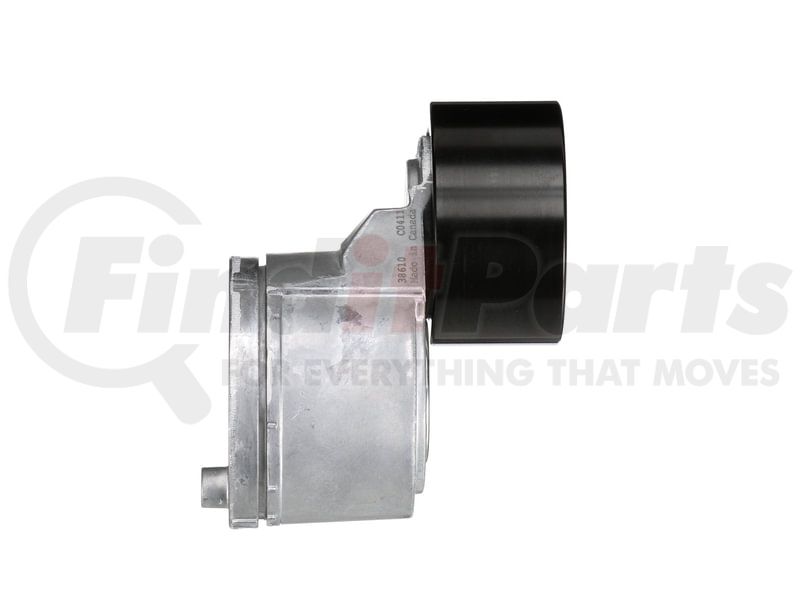

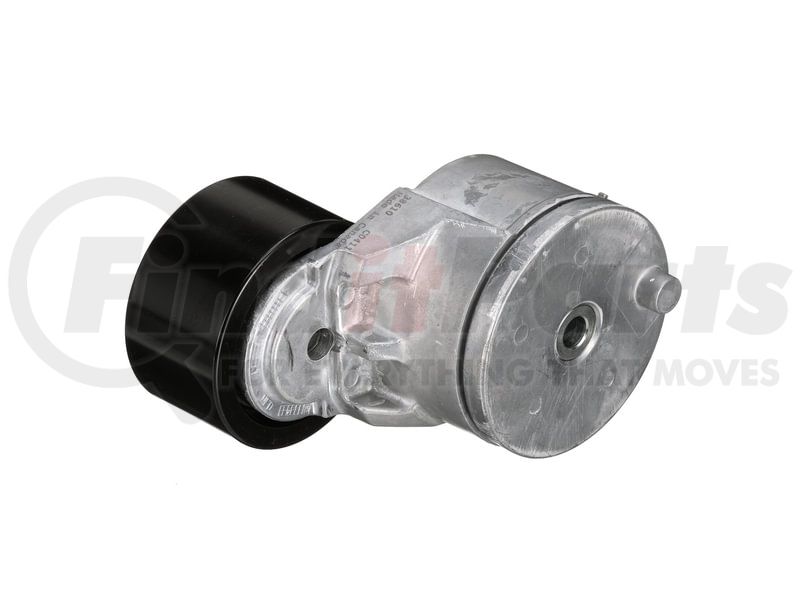

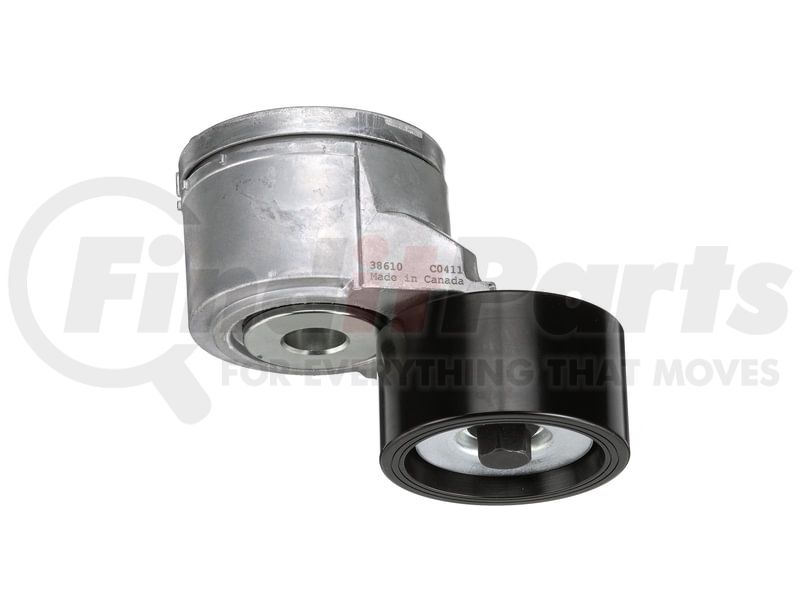

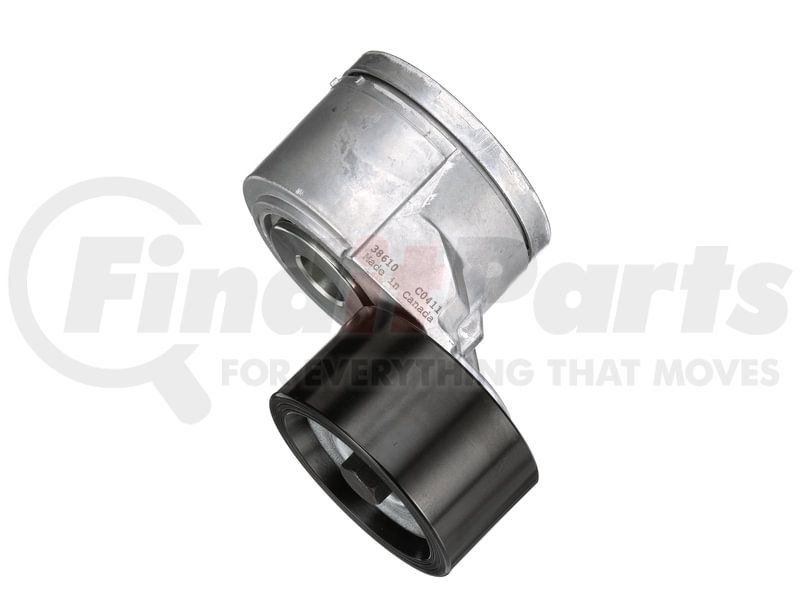

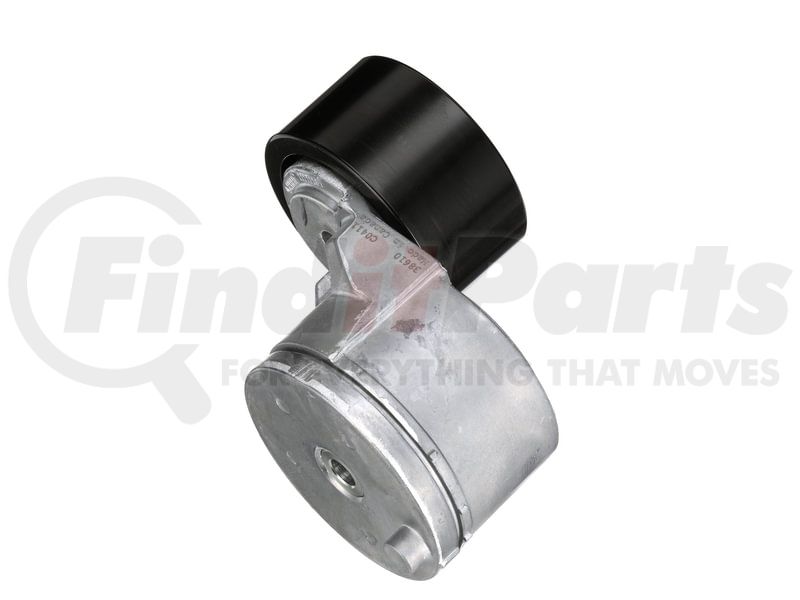

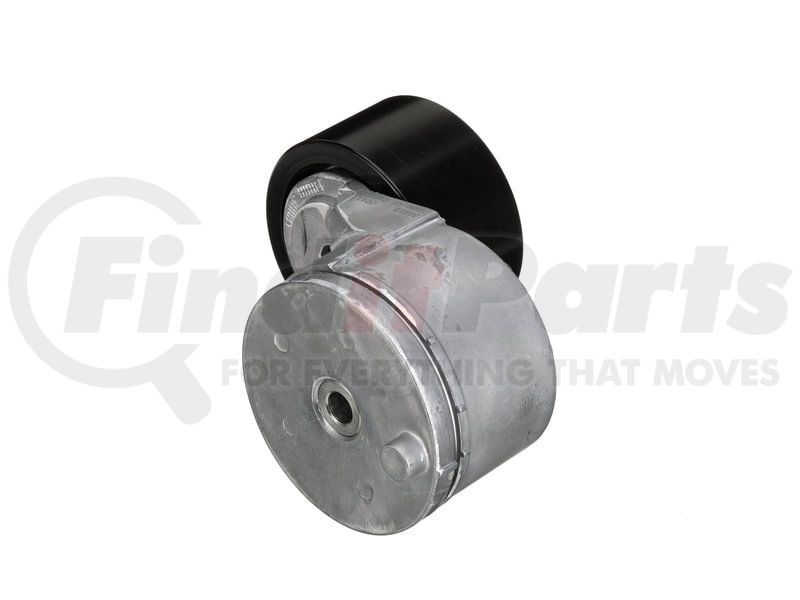

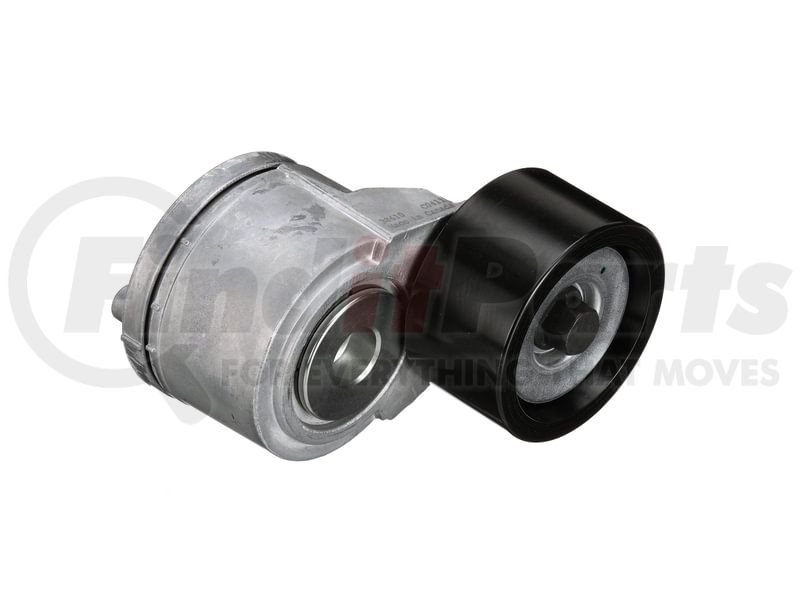

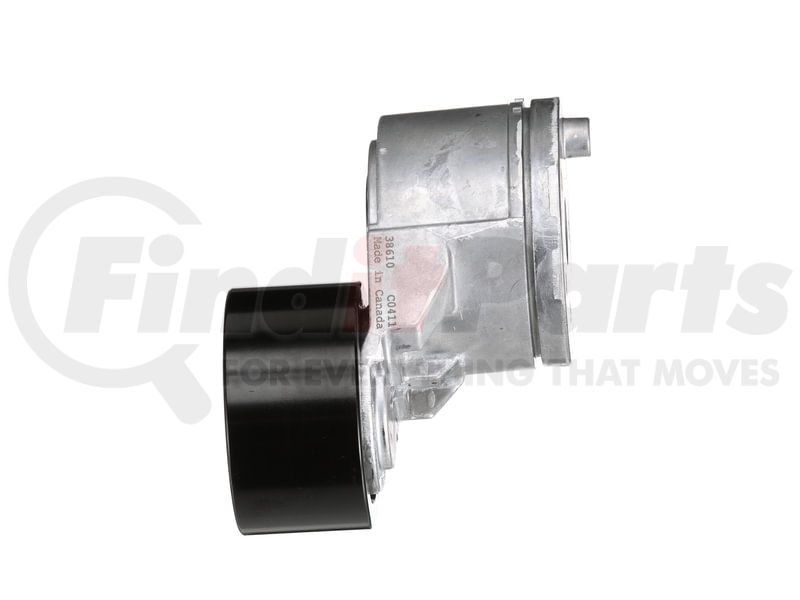

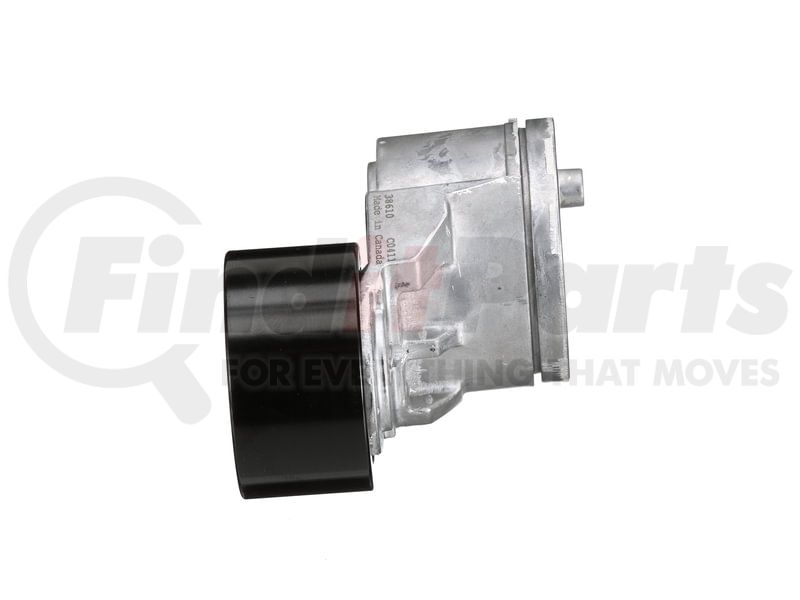

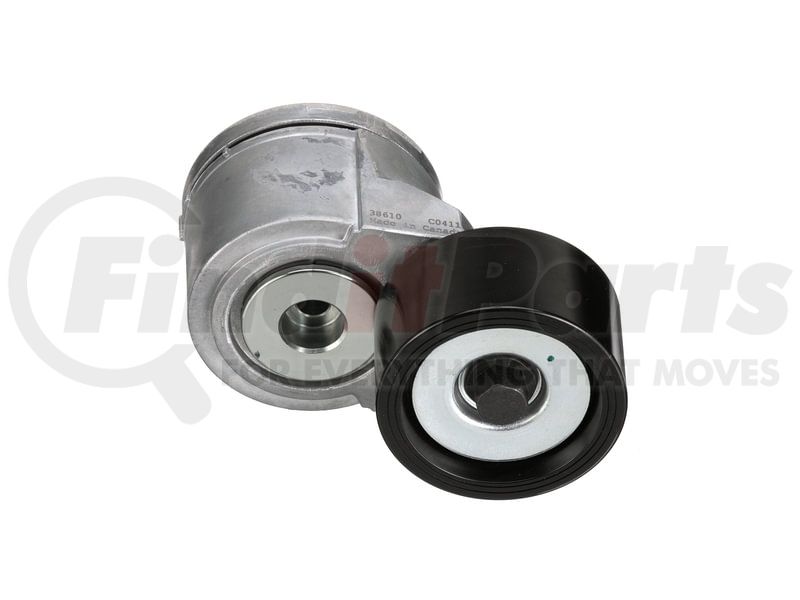

GATES 38610 Drivealign Heavy-Duty Automatic Belt Tensioner - BTENS Green Stripe Drivealign HD

★★★★★ (0)
Gates 38610 Accessory Drive Belt Tensioner Assembly Drivealign Heavy-Duty Automatic Belt Tensioner - BTENS Green Stripe
GATES
Tap to view 14 more
Gates 38610 Accessory Drive Belt Tensioner Assembly Drivealign Heavy-Duty Automatic Belt Tensioner - BTENS Green Stripe

MSRP: $329.69

$244.49

Save $85.20

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

GATES 38610 Part Description

Manufacturer

GATES

Product Description

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

Application Summary

2019-10 Freightliner, Cascadia, Cummins ISX15 Diesel, Tensioner Assy. - A.C.

Features & Benefits

  • Optimized components engineered for maximum strength and durability
  • Patented design provides superior belt alignment and tension for improved drive efficiency and life
  • Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
  • Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
  • Double row bearings carry more load and last up to 3X longer than two individual bearings
  • Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
  • Chrome-silicone round torsion spring for less flex-fatigue than flat-spring designs
  • Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components

GATES 38610 Specifications

Product Attributes

MaterialSteel
Contact SurfaceSmooth/Backside
Pulley 1 FlangedNo
Outside Diameter2.95 IN
Bearing Bore Inside Diameter1.18 IN
Width1.57 IN
Belt TypeV-Ribbed
Mounting Hole Quantity1
ContentsTensioner Assy.
Pulley Quantity1
Groove Quantity0
Pulley 1 Groove Quantity0
Outside Diameter 1 (in)2.95
Outside Diameter 1 (mm)75
Width 1 (in)1.57
Width 1 (mm)40
Bearing Bore Inside Diameter30 MM

Additional Information

Country of Origin (Primary)CA
Harmonized Tariff Code (Schedule B)8708998180
Stock StatusS
UPC00770075358329
VMRS Code042003076
UNSPSC26111805

GATES 38610 Cross References

BrandPart Number
77801110, GT38610
4-SEASONS45656
ACDelco38610
BANDO680047
CARQUEST38610
CONTINENTAL AG49582
Cummins2891940, 3104149, 3682255, 3690067, 3682683
Dayco89448
GOODYEAR BELTS55827
Goodyear49582
KIT MASTERS689448, 689448V2
Litens910568A
NAPA Belts/Hose38610
NAVISTARFLT689448
Tendeco910568

GATES 38610 Fits Vehicles

  • Autocar LLC. Xpeditor (2014-2019)
  • Freightliner 114SD (2016-2025)
  • Freightliner 122SD (2014-2021)
  • Freightliner Cascadia (2009-2025)
  • Freightliner Coronado (2011-2016)
  • International 5500i (2004-2009)
  • International 5600i (2005-2007, 2009, 2011)
  • International 5900i (2004-2008, 2014-2016)
  • International 9200i SBA (2003-2008)
  • International 9400i SBA (2003-2007)
  • International 9900i (2003-2010, 2014-2018)
  • International 9900ix (2004-2007, 2009)
  • International HX520 (2018-2022)
  • International HX620 (2017-2022)
  • International LT (2020, 2022-2023)
  • International LT625 (2018-2023)
  • International LoneStar (2009-2011, 2014-2017, 2019-2021)
  • International ProStar (2008-2017, 2019-2020)
  • Kenworth T2000 (2004-2008, 2010)
  • Kenworth T600A (2004-2007)
  • Kenworth T660 (2008-2018)
  • Kenworth T680 (2013-2023)
  • Kenworth T700 (2011-2015)
  • Kenworth T800 (2004-2022)
  • Kenworth T880 (2014-2023)
  • Kenworth W900 (2003-2023)
  • Kenworth W990 (2020-2023)
  • Mack Anthem (2019-2025)
  • Mack CL (2004-2007)
  • Mack CXU (2014-2018)
  • Peterbilt 320 (2012-2017)
  • Peterbilt 357 (2006-2007)
  • Peterbilt 365 (2011-2016, 2018)
  • Peterbilt 367 (2008-2016, 2018-2021)
  • Peterbilt 378 (2004-2007)
  • Peterbilt 379 (2003-2007)
  • Peterbilt 384 (2012-2015)
  • Peterbilt 386 (2007-2015)
  • Peterbilt 387 (2004-2011)
  • Peterbilt 388 (2008-2015)
  • Peterbilt 389 (2008-2023)
  • Peterbilt 520 (2019-2020)
  • Peterbilt 567 (2014-2023)
  • Peterbilt 579 (2013-2023)
  • Peterbilt 587 (2011-2017)
  • Volvo VNL (2003-2025)
  • Volvo VNL 300 (2016-2020)
  • Volvo VNL 400 (2017-2020)
  • Volvo VNL 430 (2015-2016)
  • Volvo VNL 630 (2015-2016)
  • Volvo VNL 670 (2015-2016)
  • Volvo VNL 740 (2017-2020)
  • Volvo VNL 760 (2017-2020)
  • Volvo VNL 860 (2017-2020)
  • Volvo VNM (2007)
  • Volvo VT (2006-2010)
  • Western Star 4900EX (2011-2023)
  • Western Star 4900FA (2011-2018)
  • Western Star 4900SA (2010-2018)
  • Western Star 49X (2022-2025)
  • Western Star 6900XD (2015)
