(888) 312-8812 Login SignupCENTRIC 406.62001 Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 406.62001 Part Description
Manufacturer
Product Description

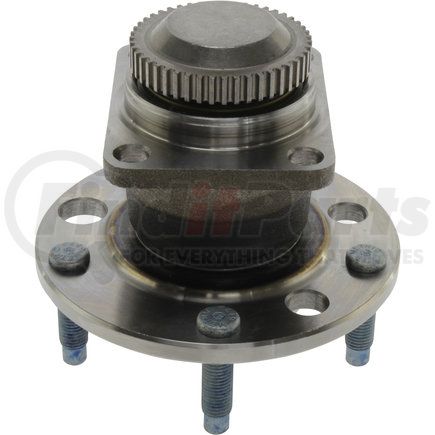

Centric Premium Hub and Bearing Assembly; With ABS Tone Ring
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 406.62001 Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Inner Mount Pilot [cntrc] In | 2.812 |
| Off-set [cntrc] In | 68.760 |
| Mounting Hole Qty [cntrc] | 4 |
| Off-set [cntrc] Mm | 2.707 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 71.420 |
| Mouting Thread Size [cntrc] Mm | 11.870 |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Notes [cntrc] | Flange Holes 12 O' clock 0.752'' 5 & 7 O' clock0.595" |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 69.700 MM |
| Wheel Pilot Diameter | 2.744 IN |
| Brake Pilot Diameter | 70.130 MM |
| Brake Pilot Diameter | 2.761 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.712 IN |
| Flange Diameter | 145.080 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890567400 |
CENTRIC 406.62001 Cross References
CENTRIC 406.62001 Fits Vehicles
- Chevrolet Corvette (1984-1990)
