CENTRIC part description

Product Description

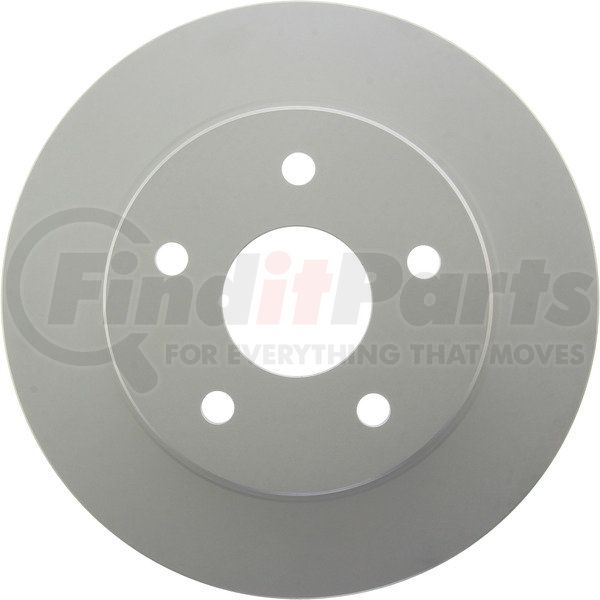

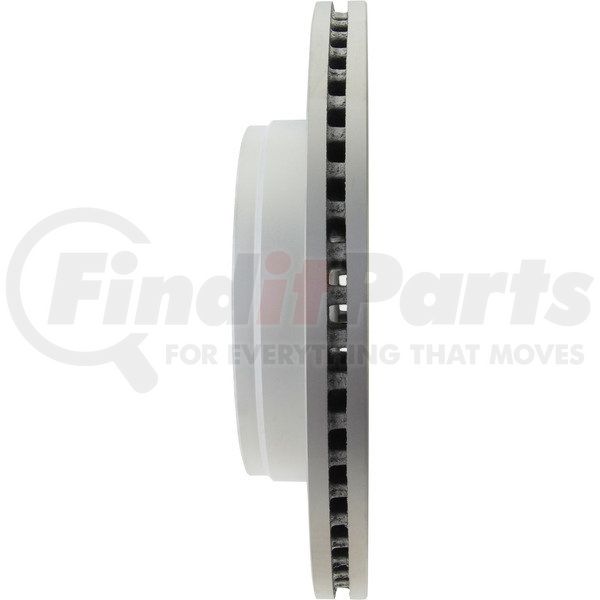

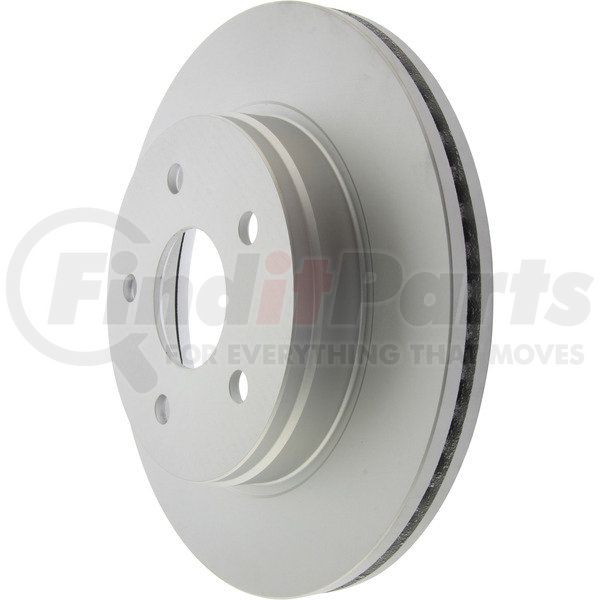

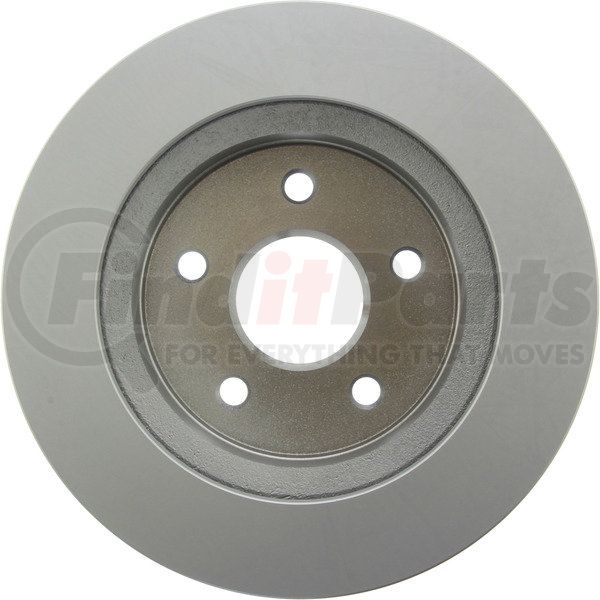

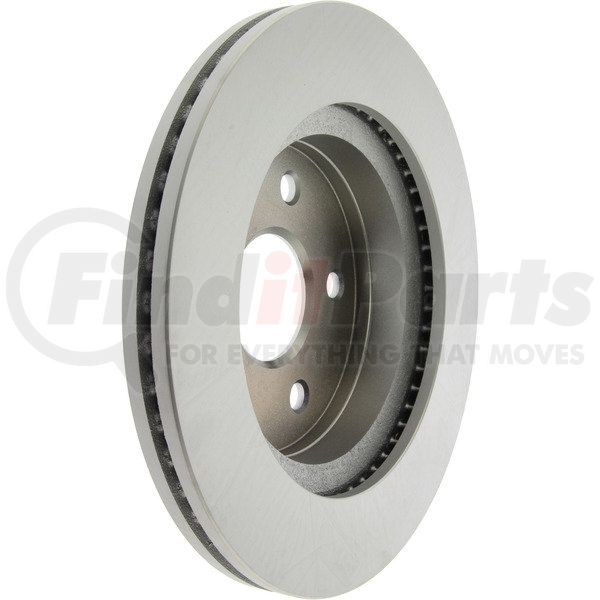

Centric GCX Rotor with Full Coating

Application Summary

Chrysler Aspen 2009-2007, Dodge Dakota 2010, Dakota 2012, Durango 2009-2004, Ram 1500 2010-2002, Ram 1500 2020-2011, 1500 Classic 2022-2019, 4000 2016

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor

Product Attributes

Discard Thickness 1.039 IN
Nominal Thickness 28.000 MM
Disc Finish Fully Coated
Hat Finish Coated
Overall Height 67.300 MM
Outside Diameter 336.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 78.500 MM
Mounting Bolt Hole Circle Diameter 139.700 MM
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 17.000 MM
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 0
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 11.840
Weight [cntrc] Lbs 26.100

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00889590393873

Part Interchanges

CENTRIC 320.67053F Cross Reference

We have 3 alternatives for the 320.67053F by CENTRIC:

Fits Vehicles

  • Ram 1500 Classic (2019-2022)
  • Chrysler Aspen (2007-2009)
  • Dodge Durango (2004-2009)
  • Dodge Dakota (2010, 2012)
  • Dodge Ram 1500 (2002-2010)
  • Ram 4000 (2016)
  • Ram 1500 (2011-2020)
