CENTRIC 123.42011 Part Description
Manufacturer
Product Description

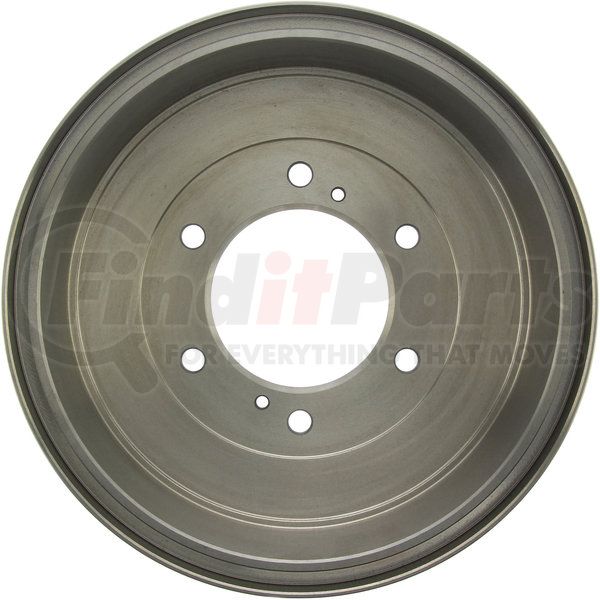

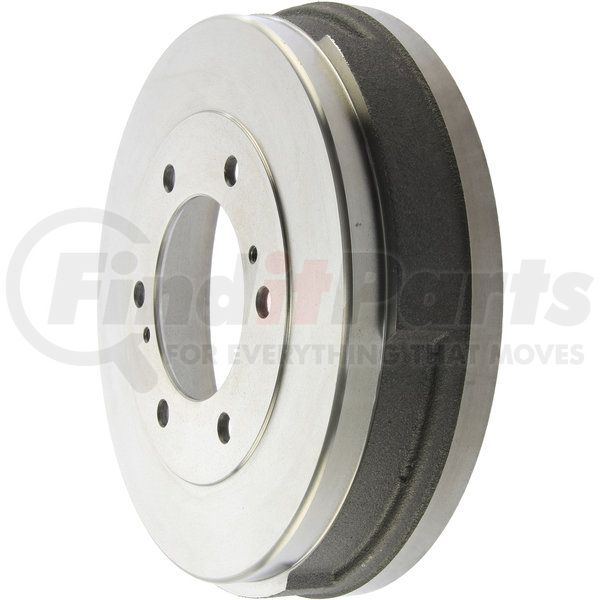

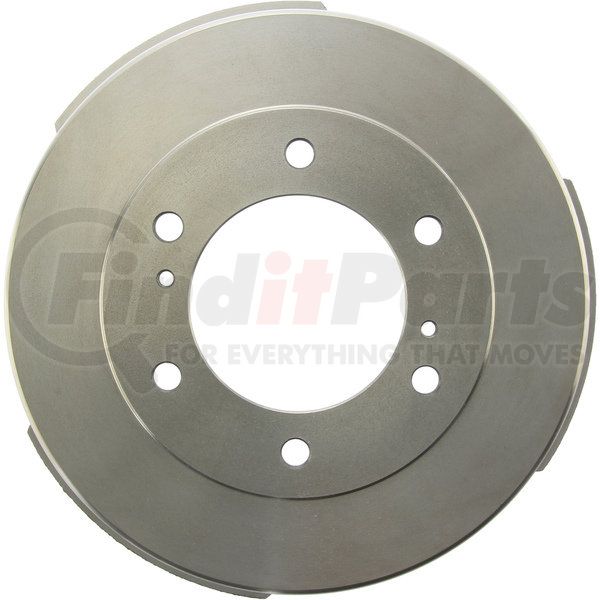

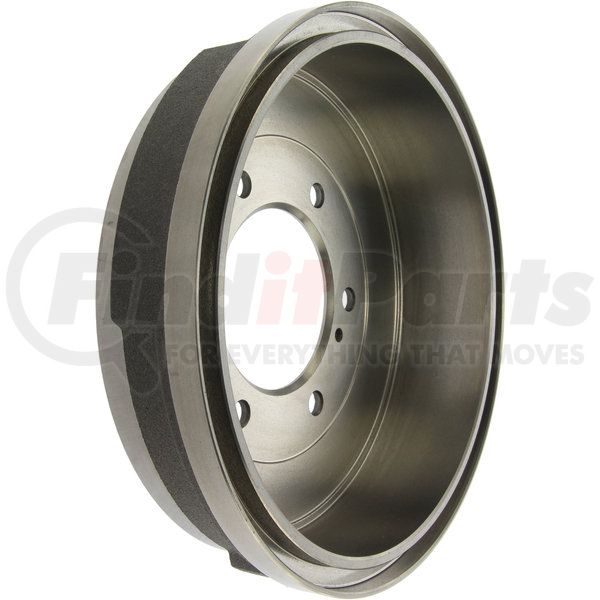

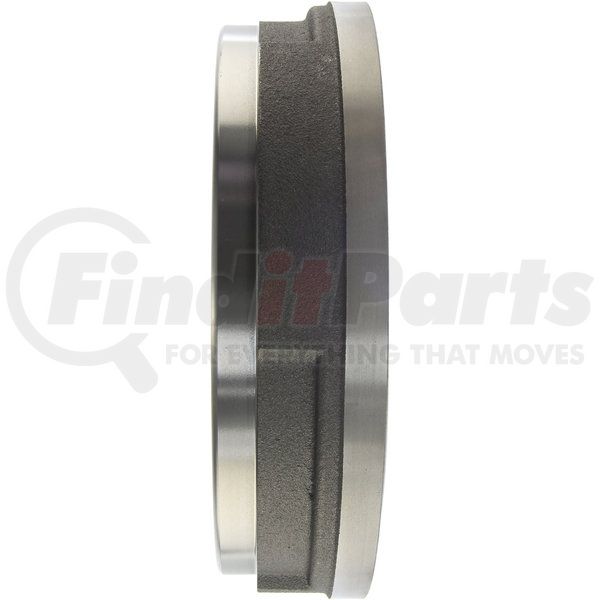

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.42011 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 7.182 |
| Weight [cntrc] Lbs | 15.800 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 100.500 |
| Hub Hole / Register [cntrc] In | 3.957 |
| Height [cntrc] Mm | 73.000 |
| Height [cntrc] In | 2.874 |
| Friction Surface Width [cntrc] Mm | 63.500 |
| Friction Surface Width [cntrc] In | 2.500 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 261.000 MM |
| Maximum Brake Diameter (Discard) | 10.276 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.750 MM |
| Mounting Hole Diameter | 0.502 IN |
| Nominal Drum Diameter | 260.000 MM |
| Nominal Drum Diameter | 10.236 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051671 |
CENTRIC 123.42011 Cross References
| Brand | Part Number |
|---|---|
| 109330, 9330, BD61837 | |
| N/A | BD61837, 3509, BD3509, 123.42011, 4320608G11, 116120, 3509G, 100261, 140526, PDR0526, 209090, 440-1585, 4401585, 6401585, 998, JBD184E, D9326, 87330, X21721, 21106, BD1584, 109330, 9330, 9330R, 9330DGS, 78804011, 78-04011, 7804011, 68320, 36567011 |
| PRONTO | BD3509 |
| RAYBESTOS | 9330, 9330R |
| WAGNER | BD61837 |
