(888) 312-8812 Login SignupCENTRIC 122.63022 Premium Brake Drum
Tap to view 1 more
$58.40
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.63022 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

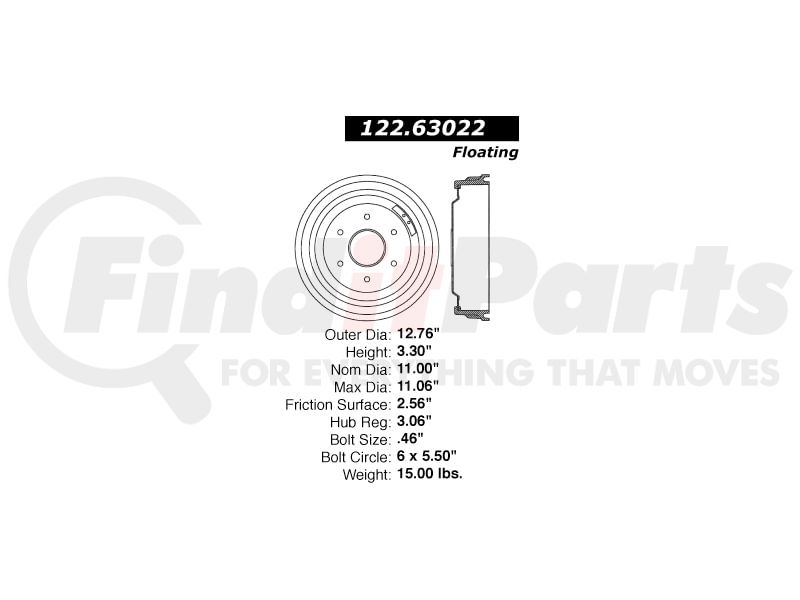

CENTRIC 122.63022 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.818 |
| Weight [cntrc] Lbs | 15.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 77.724 |
| Hub Hole / Register [cntrc] In | 3.060 |
| Height [cntrc] Mm | 83.820 |
| Height [cntrc] In | 3.300 |
| Friction Surface Width [cntrc] Mm | 65.024 |
| Friction Surface Width [cntrc] In | 2.560 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 280.900 MM |
| Maximum Brake Diameter (Discard) | 11.060 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 324.104 MM |
| Outside Diameter | 12.760 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 11.684 MM |
| Mounting Hole Diameter | 0.460 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
