CENTRIC 122.42011 Part Description
Manufacturer
Product Description

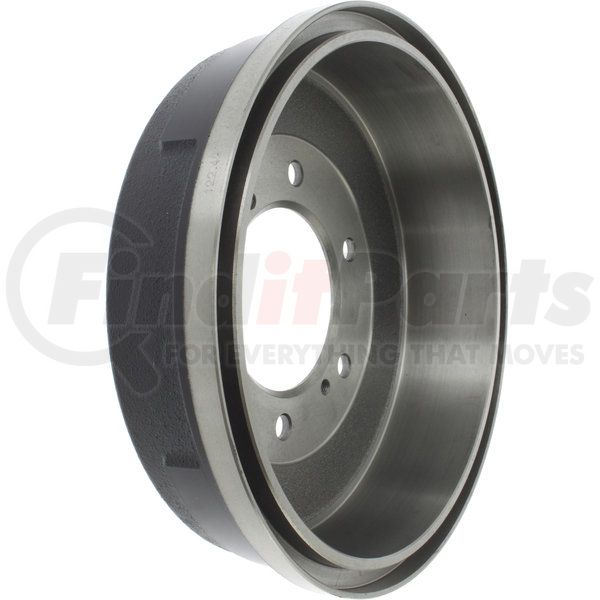

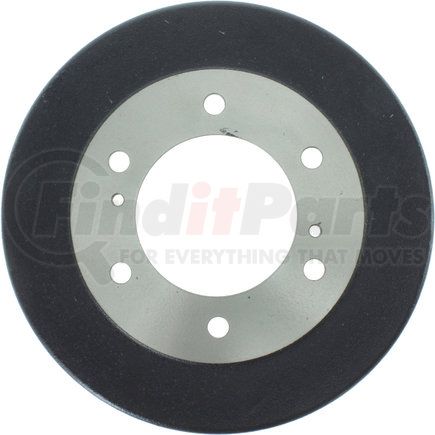

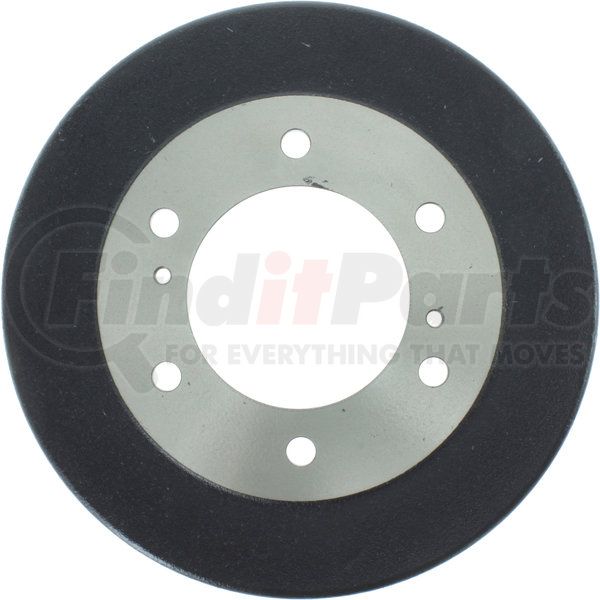

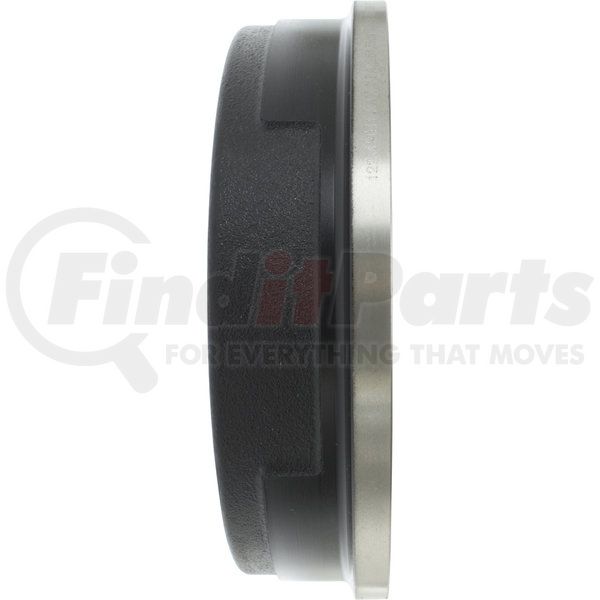

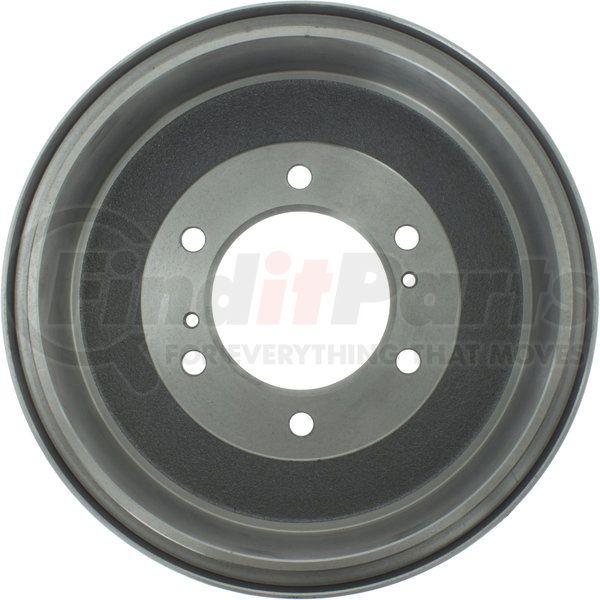

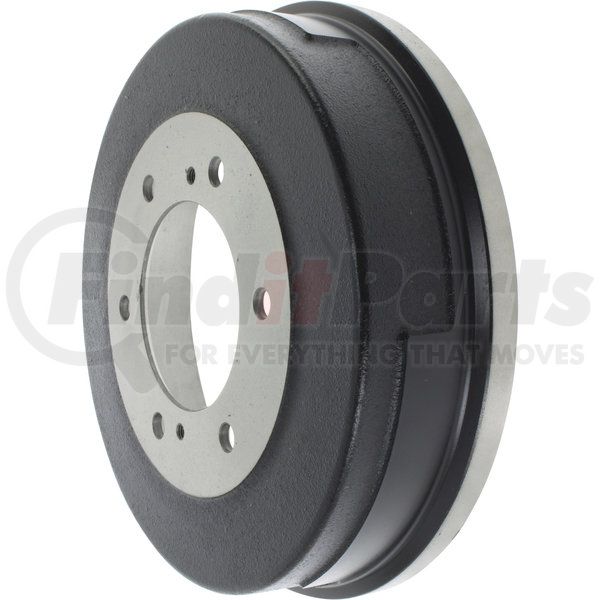

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.42011 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 7.045 |
| Weight [cntrc] Lbs | 15.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 100.500 |
| Hub Hole / Register [cntrc] In | 3.957 |
| Height [cntrc] Mm | 73.000 |
| Height [cntrc] In | 2.874 |
| Friction Surface Width [cntrc] Mm | 63.500 |
| Friction Surface Width [cntrc] In | 2.500 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 261.000 MM |
| Maximum Brake Diameter (Discard) | 10.276 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.750 MM |
| Mounting Hole Diameter | 0.502 IN |
| Nominal Drum Diameter | 260.000 MM |
| Nominal Drum Diameter | 10.236 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890044475 |
CENTRIC 122.42011 Cross References
| Brand | Part Number |
|---|---|
| 9330, BD61837 | |
| N/A | BD61837, 0832222, 63 76 360, 6376360, 4320608G11, 3509, 116120, 3509G, 372, 43206F4000, 43206VG300, 43206VM00B, 140526, 6401585, BRD521610, 998, DB4141, JBD184, D9326, E12747016, 100261, 87330, YH140526, 21106, X21721, BD1584, 9330, 8804011, 36567011 |
| RAYBESTOS | 9330, 9330R |
| WAGNER | BD61837 |
