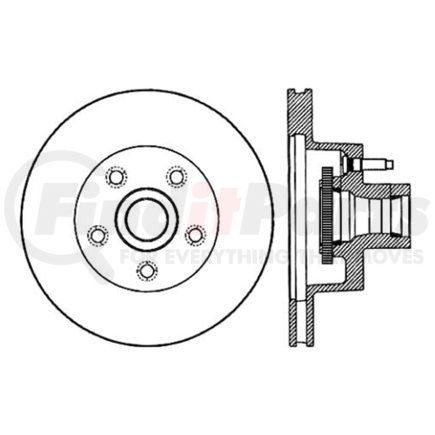

(888) 312-8812 Login SignupCENTRIC 121.61034 C-Tek Standard Disc Brake Rotor - 11.07 in. Outside Diameter
Tap to view 1 more
$84.85
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 121.61034 Part Description
CENTRIC 121.61034 Specifications
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Seal # [cntrc] | 417.61000 |
| Outer Bearing # [cntrc] | 410.91012 |
| Weight [cntrc] Lbs | 24.000 |
| Product Grade [cntrc] | Standard |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.91018 |
| Weight [cntrc] Kgs | 10.910 |
| Discard Thickness | 24.700 MM |
| Discard Thickness | 0.972 IN |
| Nominal Thickness | 26.160 MM |
| Nominal Thickness | 1.030 IN |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 134.200 MM |
| Overall Height | 5.283 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 281.400 MM |
| Rotor Outside Diameter | 11.079 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.500 MM |
| Center Hole Diameter | 2.776 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
CENTRIC 121.61034 Cross References
| Brand | Part Number |
|---|---|
| 66193, 1066193, 52-125020, 52125020, BD125020 | |
| MAGMA PRODUCTS | PMR203040 |
| N/A | 52-125020, 52125020, BD125020, E126-66-039, 5466, BR5466, 121.61034, 65815, 5466G, FOVY2C202A, F0VY1102A, F0VY2C202A, YW1Z1V125AA, 102660, PRT1553, 141553, 4886193, 86193, 491, AR8134, AR8134E, D17564, E12666039, 54388, 27027, X50555, BR1650, 1066193, 1066193R, 66193, 66193R, 78934034, 78-34034, 7834034, 8934034, 60056011 |
| RAYBESTOS | 66193, 66193R |
| WAGNER | BD125020 |
CENTRIC 121.61034 Fits Vehicles
- Lincoln Town Car (1990)
