CENTRIC 320.35086F Part Description
Manufacturer
Product Description

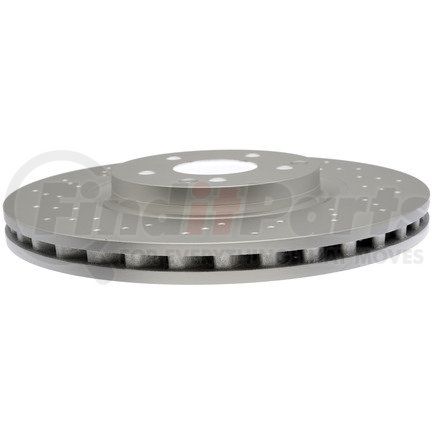

Centric GCX Rotor with Full Coating
Features & Benefits
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.35086F Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 21.600 |
| Vane Style [cntrc] | Curved |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 9.820 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Stud/Lug Hole Diameter | 0.524 IN |
| Stud/Lug Hole Diameter | 13.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.429 IN |
| Mounting Bolt Hole Circle Diameter | 112.500 MM |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| Overall Height | 1.854 IN |
| Overall Height | 47.100 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 28.100 MM |
| Nominal Thickness | 1.106 IN |
CENTRIC 320.35086F Cross References
CENTRIC 320.35086F Fits Vehicles
- Mercedes-Benz C230 (2003-2007)
- Mercedes-Benz C320 (2003-2005)
- Mercedes-Benz CLK350 (2007-2009)
- Mercedes-Benz SLK280 (2006-2008)
- Mercedes-Benz SLK300 (2009-2011)
- Mercedes-Benz SLK350 (2005-2011)
