(888) 312-8812 Login SignupCENTRIC 121.66009 C-Tek Standard Brake Rotor
Tap to view 4 more
$13949
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
CENTRIC 121.66009 Part Description
Manufacturer
Product Description

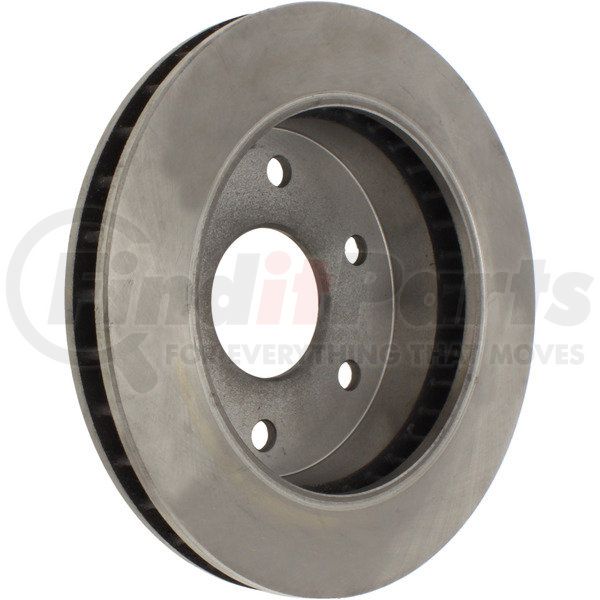

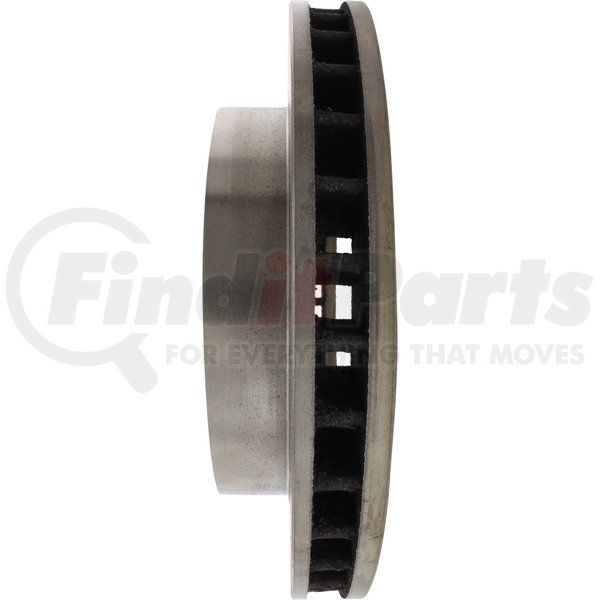

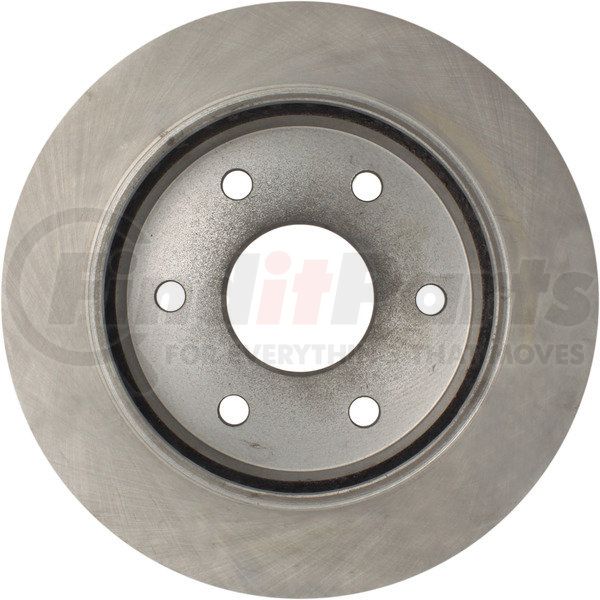

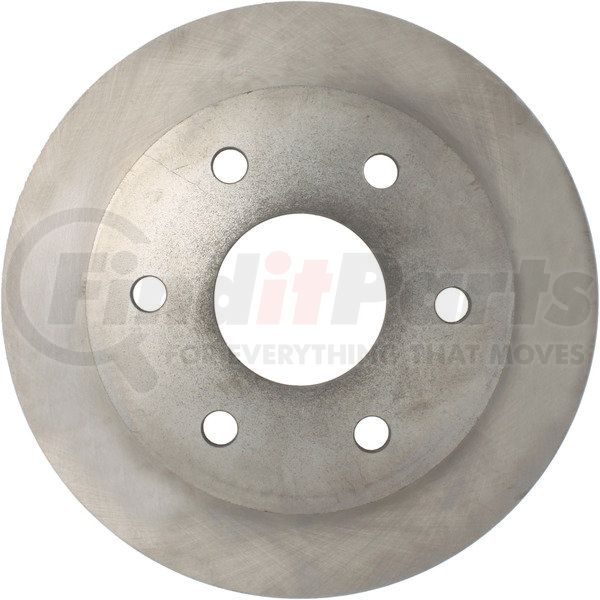

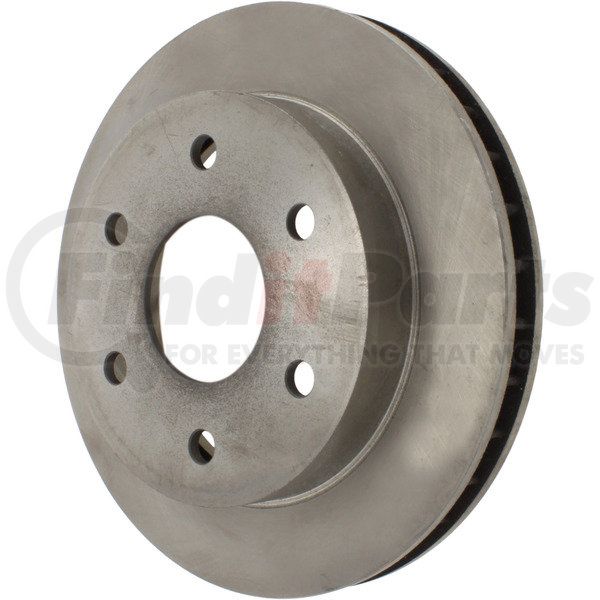

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.66009 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 16.000 |
| Product Grade [cntrc] | Standard |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.270 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.700 MM |
| Nominal Thickness | 1.287 IN |
| Overall Height | 2.622 IN |
| Overall Height | 66.600 MM |
| Outside Diameter | 294.800 MM |
| Outside Diameter | 11.606 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.098 IN |
| Center Hole Diameter | 78.700 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.610 IN |
| Stud/Lug Hole Diameter | 15.500 MM |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890050919 |
CENTRIC 121.66009 Cross References
| Brand | Part Number |
|---|---|
| 5962, 105962, 5962RGS, 52-61812, 5261812, BD61812 | |
| MAGMA PRODUCTS | PMR225178 |
| N/A | 52-61812, 5261812, BD61812, E126-71-014, 5569, BR5569, R93 940, BD5569, 55135, 5597, 5569G, 107238, 15521902, 15679710, 101690, 101690CO, PRT1453FC, 141453, 48880438, 85962, 444, AR8609E, D17350, E12671014, 5569HC, X50408, 27142, BR1532, 5962, 5962R, 5962RGS, 105962, 580438, 580438R, ZAR8609E, 19801, 78-44009, 7844009, 78944009, 65180, 60048008, 177671 |
| PRONTO | BR5569 |
| RAYBESTOS | 580438, 580438FZN, 580438PER, 580438R, 580438R2 |
| WAGNER | BD61812E, BD61812 |
CENTRIC 121.66009 Fits Vehicles
- Chevrolet K2500 (1988-1998)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet K1500 (1988-1999)
- GMC Yukon (1992-2000)
- Chevrolet Blazer (1992-1994)
- Cadillac Escalade (1999-2000)
- GMC K2500 (1988-1998)
- GMC K1500 Suburban (1992-1999)
- GMC K1500 (1988-1999)
- Chevrolet Tahoe (1995-2000)
