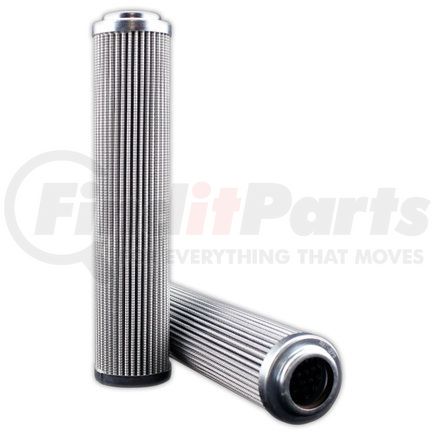

(888) 312-8812 Login SignupMAIN FILTER MF0591902 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
MSRP: $35.86
$3199
Save $3.87
Limited availability at this price!
In Stock
Get it by Monday, Jul 13
MAIN FILTER MF0591902 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM SCHUPP p/n HY20503
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0591902 replaces OEM HY20503 by SCHUPP and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.772 |
| Inide Diameter Top | 1.004 |
| Outside Diameter Bottom | 1.772 |
| Collapse Pressure | 305 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 11.47 |
| Filter Area sq in | 155 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM SCHUPP p/n HY20503
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0591902 replaces OEM HY20503 by SCHUPP and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM SCHUPP p/n HY20503
- All of our elements are manufactured following ISO specifications.
- Main Filter MF0591902 replaces OEM HY20503 by SCHUPP and is compatible in fit, form and function.
- Images may be a general representations of products
- Built using Quality Components with strict quality control.
- Main Filter MF0591902 replaces OEM HY20503 by SCHUPP and is compatible in fit, form and function.
MAIN FILTER MF0591902 Specifications
Product Attributes
| Bypass | No |
| Handle | No |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Dust Holding Capacity | 11.47 grams |
| Wrap | No |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Filter Area (sq. in.) | 155 |
| Collapse Pressure | 305 |
| Inside Diameter (Top) | 1 in. |
| Height (in.) | 8.23 |
| Beta Ratio 2 | 1000/4.5 |
| Micron Rating | 3 |
| Outside Diameter (Top) | 1.77 in. |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Product Media | Glass |
| Gasket Material | Viton |
| Flow Direction | Outside-In |
| Outside Diameter (Bottom) | 1.77 in. |
MAIN FILTER MF0591902 Cross References
| Brand | Part Number |
|---|---|
| SCHUPP | HY20503 |
