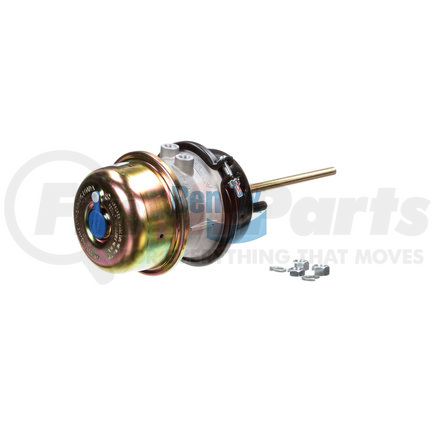

(888) 312-8812 Login SignupBENDIX NT2424LS-80 Spring Brake (S-Cam)
Tap to view 4 more
$12499
7 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
BENDIX NT2424LS-80 Part Description
Spring Brake (S-Cam)
BENDIX NT2424LS-80 Specifications
Product Attributes
| Brand | EnduraSure |
| Cautionary Note(s) | Do not disassemble while park side is caged under pressure |
| Chamber Style | Double Diaphragm |
| Chamber Type / Size | T24/24 |
| Clevis / Yoke Arm Bushing Pin Diameter | Not applicable to this part |
| Clevis / Yoke Arm Link Pin Diameter | Not applicable to this part |
| Clevis / Yoke Pin Spacing | Not applicable to this part |
| Clevis / Yoke Style | Not Included |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 175 AdegF (79 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting Stud Length | 1.46 IN (37.2 MM) |
| Parking Port (12) | 3/8-18 NPTF |
| Push Rod Length (to Yoke Pin Center when Applicable) [IN] | 8.00 in |
| Push Rod Thread / Style | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Double Clamp Band |
| Service Port (11) | 3/8-18 NPTF |
| Stroke | 2.50 IN (63.5 MM) |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Stud Thread Size | 5/8-11 UNC-2A |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078154922 |
| VMRS Code | 013004027 |
BENDIX NT2424LS-80 Cross References
| Brand | Part Number |
|---|---|
| N/A | 800921 |
BENDIX NT2424LS-80 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX NT2424LS-80 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
BENDIX NT2424LS-80 Questions & Answers
No questions yet
Be the first to ask a question about this product!
