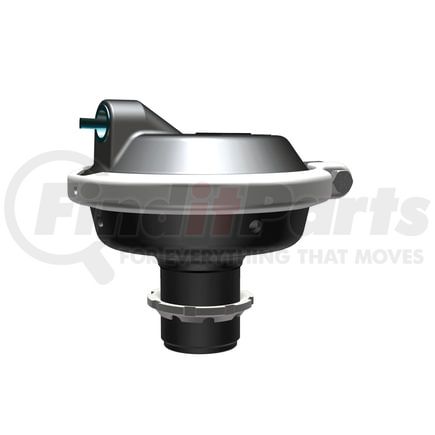

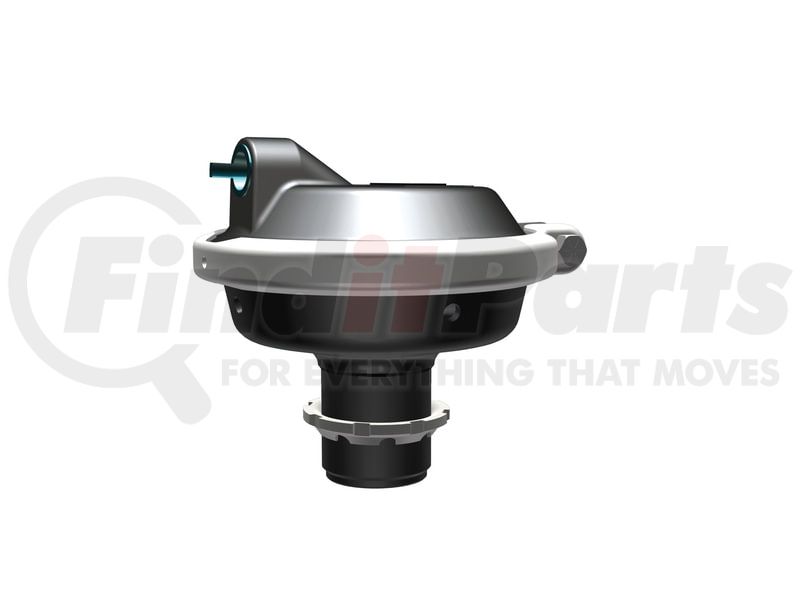

(888) 312-8812 Login SignupMGM BRAKES 1012001 Type 12 Wedge Brakes Service Chamber
$18849
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 1012001 Part Description
Manufacturer
Product Description
Wedge Brake Chamber
Features & Benefits
- Epoxy coating adds a protective finish over the formed-steel chamber
- Mounts with a 2.850-inch tube length matched to Meritor wedge brakes
- Service-only design contains no spring brake section for parking
- Ships without a yoke assembly, so the existing hardware transfers over
MGM Brakes Air Brake Chamber
Wedge brakes need their own style of actuator, and the MGM Brakes Air Brake Chamber is a Type 12 service chamber (model CW12) built for that job. Inside a formed-steel, epoxy-coated housing, a heavy-duty nylon-reinforced diaphragm converts air pressure into a 1.75-inch stroke that drives the wedge. The chamber installs on a 1 3/4-12 UN-2A mounting thread and offers both top and side 3/8-18 NPTF air ports. As an aftermarket unit, the MGM Brakes 1012001 may need its port and clamp-band angles rotated to match the original installation.
Specs
Aftermarket Unit
Mounting Bolt Thread: 1 3/4-12 UN-2A
Mounting Bolt Length (in.): 1.562
Port Size: 3/8-18 NPTF
Tube Length (in.): 2.850 (MERITOR)
Stroke (in.): 1.75
MGM BRAKES 1012001 Specifications
Product Attributes
| Chamber Type | Wedge Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.562 IN |
| Mounting Bolt Thread | 1 3/4-12 UN-2A |
| Port Size | 3/8-18 NPTF |
| Spring Size | N/A |
| Service Size | 12 |
| Stroke | 1.75 IN |
| Tube Length (MERITOR) | 2.850 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
| Push Rod Length - no yoke | - |
| Push Rod Length - with yoke | - |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013010034 |
