(888) 312-8812 Login SignupCENTRIC 320.65150F Centric GCX Rotor with Full Coating
Tap to view 4 more
$7249
Limited availability at this price!
In Stock
Get as soon as Thursday, Oct 22
CENTRIC 320.65150F Part Description
Manufacturer
Product Description

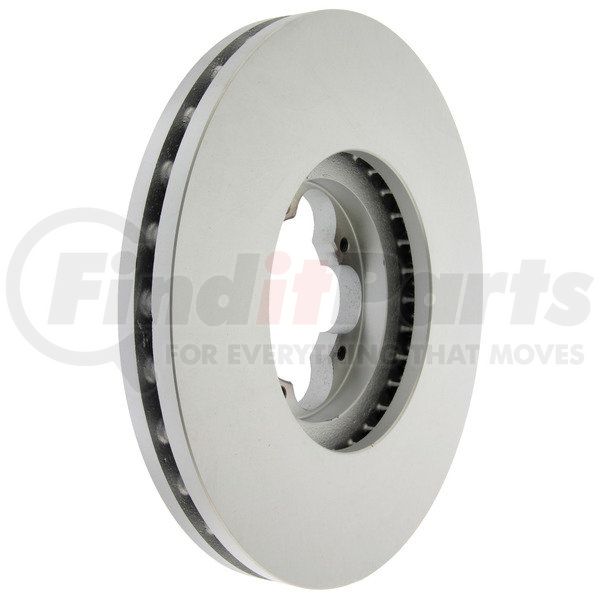

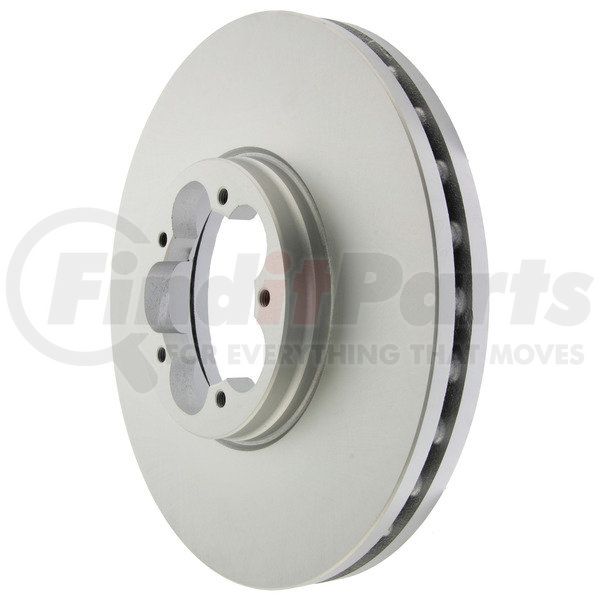

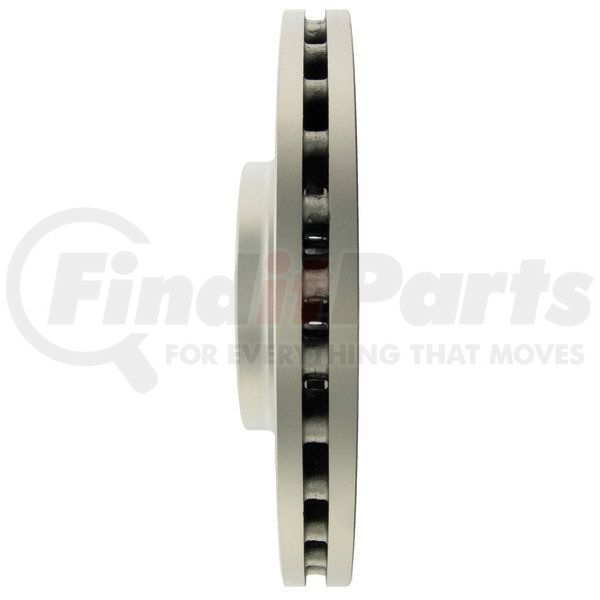

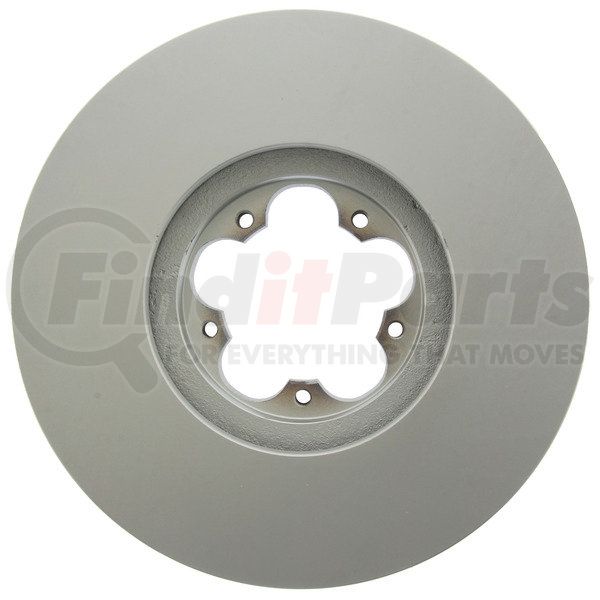

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65150F Specifications
Product Attributes
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 11.540 |
| Product Grade [cntrc] | Premium |
| OEM Vane Count [cntrc] | 90 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] In | 5.350 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 25.400 |
| Hat Id [cntrc] Mm | 135.900 |
| Disc Mounting [cntrc] | Behind the Hub |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30.000 MM |
| Nominal Thickness | 33.000 MM |
| Nominal Thickness | 1.299 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 55.000 MM |
| Overall Height | 2.165 IN |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308.000 MM |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 93.000 MM |
| Center Hole Diameter | 3.661 IN |
| Mounting Bolt Hole Circle Diameter | 114.500 MM |
| Mounting Bolt Hole Circle Diameter | 4.508 IN |
| Mounting Bolt Hole Diameter | 10.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590393293 |
CENTRIC 320.65150F Cross References
CENTRIC 320.65150F Fits Vehicles
- Ford Transit (2014-2015)
- Ford Transit Custom (2017)
- Ford Transit-150 (2015-2023)
- Ford Transit-250 (2015-2017, 2019-2023)
- Ford Transit-350 (2015-2017, 2019-2023)
- Ford Transit-350 HD (2019-2021)
