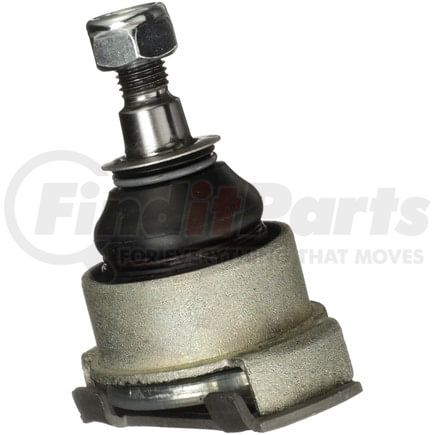

DELPHI TC509 Ball Joint

★★★★★ (0)
Delphi TC509 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 4 more

$17.49

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC509 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC509 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower Outer
MaterialSteel
Maximum Outside Diameter2.992 IN
Maximum Outside Diameter76.00 MM
ColorSilver
Stud Thread Diameter0.472 IN
Stud Thread Diameter12 MM
Castle Nut IncludedNo
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width76 MM
Cotter Pin IncludedNo
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Washers IncludedNo
Height3.661 IN
Height93.00 MM
Nuts IncludedYes
Mounting Hole Quantity0
AdjustableNo
GreaseableNo
Stud Thread Length0.768 IN
Stud Thread Length19.5 MM
Wrench Size19mm
Stud TypeThreaded
Mounting TypePress-In
Dust Boot MaterialRubber
Mounting Bolts IncludedNo
Mount Plate IncludedNo
Tapered StudYes
Stud Tapered End 2 Diameter0.65 IN
Stud Tapered End 2 Diameter16.5 MM
Stud Tapered End 1 Diameter0.567 IN
Stud Tapered End 1 Diameter14.4 MM
Stud Thread Pitch1.5 MM
Length76.00 MM
Length2.990 IN

Additional Information

Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
UPC00689604259597
VMRS Code016001015
UNSPSC25174203

DELPHI TC509 Cross References

BrandPart Number
BMW3112 1096 685, 3112 1140 398, 3112 6758 510
Beck/Arnley101-5114
CORTECO49398871
DORMANB9916, B9916PR
MAS IndustriesB9916
MEYLE3160100003/HD
MOOGK9916
MOOG Chassis ProductsK500080, K9916
MevotechMK9916
N/AGK9916, KBJ4116
QUICK STEERK9916
TRWJBJ122
VAICOV20-7023

DELPHI TC509 Fits Vehicles

  • BMW 318i (1992-1998)
  • BMW 318is (1992-1999)
  • BMW 318ti (1995-1999)
  • BMW 320i (1992-1995)
  • BMW 323i (1998-2000)
  • BMW 323is (1998-1999)
  • BMW 325i (1992-1995)
  • BMW 325is (1992-1995)
  • BMW 328i (1996-2000)
  • BMW 328is (1996-1999)
  • BMW M3 (1996-1999)
  • BMW Z3 (1996-2002)
