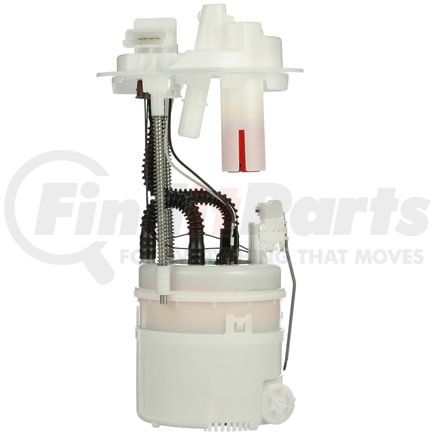

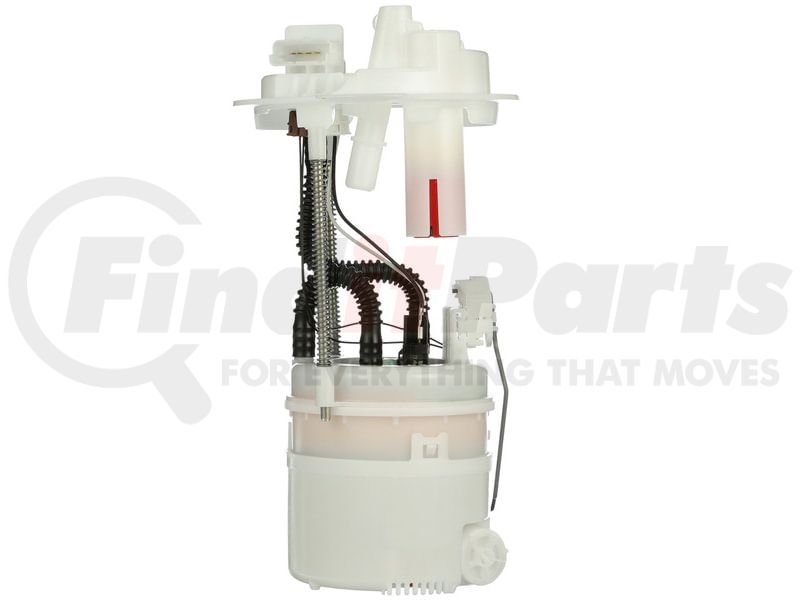

(888) 312-8812 Login SignupDELPHI FG2152 Fuel Pump Module Assembly
$58899
Limited availability at this price!
In Stock
Get it by Thursday, Jun 25
DELPHI FG2152 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG2152 Specifications
Product Attributes
| Outlet Outside Diameter | 0.313 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 300 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 12 68 |
| Average Flow Rating | 37 GPH |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Module, Tank Seal, Installation Sheet |
| System Pressure | 58 psi |
| Vapor Pressure Sensor | No |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Maximum Pressure | 62 PS |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Country of Origin (Primary) | PL |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Remanufactured Part | N |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604290729 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2152 Cross References
| Brand | Part Number |
|---|---|
| AutoZone | CFG2152 |
| Chrysler | 5202 9625AA, 6826 6524AA |
| Fiat | 5202 9625AA, 6827 8801AA |
| N/A | 52029625AA |
DELPHI FG2152 Fits Vehicles
- Fiat 500X (2016-2018)
- Jeep Renegade (2015-2023)
DELPHI FG2152 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FG2152 Questions & Answers
No questions yet
Be the first to ask a question about this product!
