DELPHI part description

Product Description

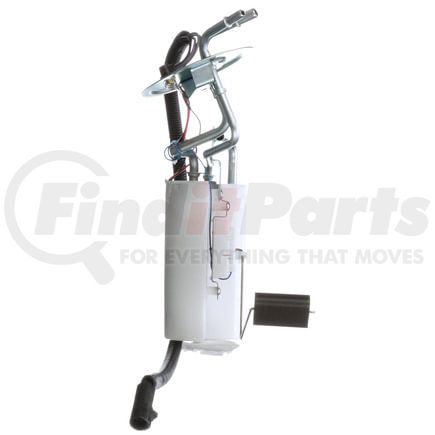

Fuel Pump Hanger Assembly

Product Attributes

Item Grade Standard Replacement
Package Contents Fuel Pump Hanger Assembly w/Float Arm, Jumper Harness, Lock Ring, Retainers, Seal, Splices, Instruction Sheet
Fuel Level Sender Assembly Included Yes
System Pressure 43 psi
Outlet Outside Diameter 0.375 IN
Voltage 12.0 2H
Fuel Type Gas
Maximum Pressure 100.0 PS
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 15.0 82
Resistance Ohms Full 160.0 82
Internal Or External Strainer External
Pump Type Electric
Average Current Draw 10.0 68
Average Flow Rating 21.0 GPH

Additional Information

Harmonized Tariff Code (Schedule B) 8413309000
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
UPC 00689604339022
VMRS Code 044003257
UNSPSC 40151532

Part Interchanges

Fits Vehicles

  • Ford F-250 HD (1997)
  • Ford F-350 (1992-1997)
  • Ford F-250 (1992-1996)
  • Ford F-150 (1992-1996)
  • Ford F Super Duty (1992-1997)
