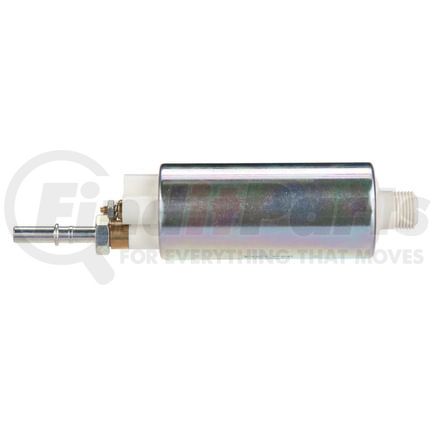

(888) 312-8812 Login SignupDELPHI FD0029 Electric Fuel Pump - In-Line, 28 GPH Average Flow Rating
MSRP: $211.00
$11499
Save $96.01
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
DELPHI FD0029 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FD0029 Specifications
Product Attributes
| Package Contents | Electric Fuel Pump, Extra Fitting, (2) Retaining Clips, Seal, (2) Splices, Terminal Hardware, Instruction Sheet |
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Position(s) | In-Line |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 0.313 IN |
| Inlet Outside Diameter | 7.9 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 193.3 MM |
| Fuel Type | Gas |
| Internal Or External | External |
| Regulator Included | No |
| Maximum Pressure | 99.0 PS |
| Terminal Type | Threaded |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Threaded |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| Pump Design | Rollevane |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 28.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Terminals |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 5.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| UPC | 00689604032619 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FD0029 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2070, EP286, EP288, EP356 |
| AUTOBEST | F1011, HP1011 |
| Airtex | E2000, E2002, E2036, E2127S, E2145S, E2126S |
| AutoZone | CFD0029 |
| BorgWarner | EP7109, P233H, P378H |
| Bosch | 67018, 67033, 67034, 67071, 69100, 69115 |
| CARTER FUEL PUMPS | P74028 |
| Carquest | E319609 |
| Carter | P74028, P74058, P74062, P74101, P74517S, P74519S, P74534S, P74550S, P74592S |
| DENSO | 951-3000 |
| DENSO Auto Parts | 951-3000 |
| EVO Driveline | AFS0001P, RE0054S, RE0091S, AFS0987S, RE0001P, RE0987S |
| FACET FUEL PUMPS | FEP2000 |
| Ford | E3FZ 9350-C, E3SZ 9350-C, E3SZ 9350-D, E4DZ 9350-B, E4ZZ 9350-B, E5TZ 9C407-A, E5TZ 9H307-H, E5ZF 9C407-BA, E69Z 9C407-B, E6KF 9C407-AASR, E77F 9C407-AASR, E7TZ 9A407-G, E7TZ 9C407-A, E7TZ 9C407-AA, E7TZ 9C407-B, E7TZ 9C407-BA, E7UZ 9C407-A, E7UZ 9C407-AA, E8TZ 9A407-A |
| GMB | 525-1011 |
| Hygrade Tuneup | EFP204 |
| Kem | EFP1046H, EFP1053H, EFP201, EFP2035, EFP329 |
| Master Parts Division | E2000, E2002, E2036 |
| MasterPro Fuel Pumps | MPE16020 |
| Motorcraft | PF-3, PF-4, PF-5, PFS-24 |
| N/A | 9513000, E3FZ9350C, E3SZ9350C, E3SZ9350D, E4DZ9350B, E4ZZ9350B, E5TZ9C407A, E5TZ9H307H, E5ZF9C407BA, E69Z9C407B, E6KF9C407AASR, E77F9C407AASR, E7FZ9H307D, E7TZ9A407G, E7TZ9C407A, E7TZ9C407AA, E7TZ9C407B, E7TZ9C407BA, E7UZ9C407A, E7UZ9C407AA, E8TZ9A407A, E9FZ9H307A, PF3, PF4, PF5, PFS24, USEP2000, F1011, 402-P2000, B0001E, E2131S, 4020110 |
| Niehoff | EP7109, F19, P233H, P378H, PF81631 |
| Precision Fuel | E16020, E16045 |
| Spectra Premium | SP1121, SP220H |
| TYC | 152035-A |
| TruGrade | 5211007 |
| Walbro | 5CA201, GCL601 |
DELPHI FD0029 Fits Vehicles
- Merkur XR4Ti (1985-1989)
- Mercury Marquis (1984-1986)
- Mercury Grand Marquis (1983-1984)
- Mercury Cougar (1984)
- Mercury Capri (1983-1985)
- Lincoln Continental (1983-1984)
- Ford Thunderbird (1983-1984)
- Ford Ranger (1985-1988)
- Ford Mustang (1983-1986)
- Ford LTD (1984-1986)
- Ford F-350 (1987-1989)
- Ford F-250 (1985-1989)
- Ford F-150 (1985-1989)
- Ford F-Super Duty (1997)
- Ford E-350 Econoline Club Wagon (1987-1991)
- Ford E-350 Econoline (1987-1991)
- Ford E-250 Econoline Club Wagon (1987-1991)
- Ford E-250 Econoline (1986-1991)
- Ford E-150 Econoline Club Wagon (1986-1991)
- Ford E-150 Econoline (1986-1991)
- Ford Bronco II (1986-1989)
- Ford Bronco (1985-1989)
- Ford Aerostar (1986-1987)
