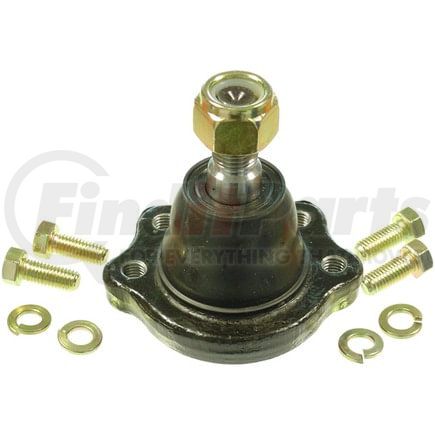

DELPHI TC393 Part Description
DELPHI TC393 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 3.307 IN |
| Maximum Outside Diameter | 84.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 84 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.142 IN |
| Mounting Bolt Length | 29.00 MM |
| Washers Included | Yes |
| Height | 4.394 IN |
| Height | 111.60 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length | 0.965 IN |
| Stud Thread Length | 24.5 MM |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 64.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.591 IN |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.906 IN |
| Mounting Bolt Thread Length | 23.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.63 IN |
| Stud Tapered End 1 Diameter | 16 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 84.00 MM |
| Length | 3.310 IN |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259368 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC393 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3416 |
| CORTECO | 49399574 |
| DORMAN | BJ69066, BJ69066XL, 536-641 |
| Datsun/Nissan | 1954430, 40110-01G00, 40110-01G25, 40110-01G26, 40110-0F000, 40110-B9500, 40110-E0100, 40110-F1700, 40110-T3060, 40110-T6000, 40110-T6025, 40110-V0100 |
| Deeza | NI-F203 |
| Ford | 1954430, D011001G25 |
| Import Direct | BJ06013 |
| MAS Industries | B9022, BJ69066 |
| MOOG Chassis Products | K9022 |
| Mcquay-Norris | FA1227 |
| Mevotech | MK9022, MS30141 |
| N/A | GK9022, BJ69066XL |
| Raybestos Chassis | 500-1045 |
| TRW | JBJ369 |
DELPHI TC393 Fits Vehicles
- Nissan 720 (1980-1986)
- Nissan 620 (1978-1979)
- Nissan Pickup (1995-1997)
- Nissan Pathfinder (1987-1995)
- Nissan D21 (1986-1994)
