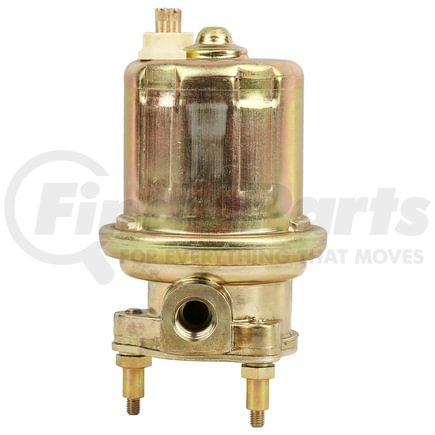

DELPHI FE0539 Electric Fuel Pump - In-Line, 52 GPH Average Flow Rating

★★★★★ (0)

$77.49

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 18
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI FE0539 Part Description

Manufacturer

DELPHI

Product Description

Electric Fuel Pump

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Delphi pumps are designed to operate under extreme temperatures with quick engine starts
  • Improved pump performance as a result of Delphi's innovative design and durability
  • Restores fast pressure performance and system integrity, translating to better pumping through less energy
  • Part is validated, tested and matched to the right vehicle application
  • Lower amperage draws less load on vehicle's electrical system
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Always replace the fuel strainer when doing a fuel pump repair

DELPHI FE0539 Specifications

Product Attributes

Position(s)In-Line
System Pressure5 psi
Fuel TypeDiesel/Gas
Item GradeStandard Replacement
Package ContentsElectric Fuel Pump, Bracket, (2) Extra Fittings, (12) Flat & Split Washers, (4) Metal Clamps, (3) Nuts/Bolts, (3) Pall Nuts, (3) Spacers, Splice, (2) Wire Harness w/Connector, Instruction Sheet
Fuel Sending Unit IncludedNo
Negative GroundNo
Inlet Outside Diameter0.375 IN
Inlet Outside Diameter9.5 MM
Outlet Outside Diameter0.375 IN
Outlet Outside Diameter9.5 MM
Length160.0 MM
Fuel TypeDiesel
Internal Or ExternalExternal
Regulator IncludedNo
Maximum Pressure7.5 PS
Terminal TypeThreaded
Mounting Hardware IncludedYes
Wire Quantity1
Gasket Or Seal IncludedNo
Terminal Quantity2
Seal And Lock Ring IncludedNo
Connector GenderMale
Terminal GenderMale
Wiring Harness IncludedYes
Strainer IncludedNo
Inlet TypeHose
Outlet TypeHose
Outlet Quantity1
Pump DesignRollevane
Mounting Bracket IncludedYes
Voltage12.0 2H
Average Current Draw3.0 68
Average Flow Rating52.0 GPH
Universal Or Specific FitSpecific
Grade TypePremium
Connector ShapeTerminals
Minimum Pressure5 PS
Maximum Amperage Draw3.0 68

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Harmonized Tariff Code (HTS)8413309030
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)CN
UPC00689604230725
VMRS Code044003259
UNSPSC40151532

DELPHI FE0539 Cross References

BrandPart Number
AirtexE84070, E84070N
AutoZoneCFE0539
Bosch69404
CARTER FUEL PUMPSP4070, P4594, P60898
CarterP4070, P4600HP, P4601HP
FordE1HZ 9350-A, M9350C111
N/AP4602RV, USEP84070, 40262, B0139E, B0182E, B0238E, B0267E, B0219E, B0220E, B0226E, SP8109, P4594, U2541854, 4020102
Precision FuelE16048
Spectra PremiumSP1130, SP8115, SP8117, SP8132

DELPHI FE0539 Fits Vehicles

  • American Motors AMX (1968)
  • American Motors Ambassador (1967-1968)
  • American Motors American (1967)
  • American Motors Javelin (1968)
  • American Motors Rebel (1967-1968)
  • Buick Electra (1966)
  • Buick Gran Sport (1966)
  • Buick Riviera (1966)
  • Buick Skylark (1966)
  • Buick Wildcat (1966)
  • Cadillac Calais (1973-1974)
  • Cadillac DeVille (1973-1974)
  • Cadillac Eldorado (1973-1974)
  • Cadillac Fleetwood (1973-1974)
  • Chevrolet Bel Air (1965-1966, 1973-1975)
  • Chevrolet Biscayne (1965-1966)
  • Chevrolet Blazer (1973)
  • Chevrolet C10 Pickup (1973)
  • Chevrolet C10 Suburban (1973)
  • Chevrolet C20 Pickup (1968-1969, 1973)
  • Chevrolet C20 Suburban (1973)
  • Chevrolet C30 Pickup (1968-1969, 1973)
  • Chevrolet Camaro (1973)
  • Chevrolet Caprice (1966, 1973-1976)
  • Chevrolet Chevelle (1965-1966, 1973)
  • Chevrolet El Camino (1973)
  • Chevrolet Impala (1965-1966, 1973-1976)
  • Chevrolet K10 Suburban (1973)
  • Chevrolet K20 Pickup (1968-1969)
  • Chevrolet K20 Suburban (1973)
  • Chevrolet K30 Pickup (1968-1969)
  • Chevrolet Malibu (1965-1966)
  • Chevrolet Nova (1973)
  • Chevrolet P10 Van (1973)
  • Chevrolet P20 Van (1973)
  • Chevrolet P30 Series (1965)
  • Chevrolet P30 Van (1973)
  • Dodge Charger (1972)
  • Dodge Coronet (1972)
  • Ford B-600 (1980-1983)
  • Ford B-700 (1980-1983)
  • Ford E-250 Econoline (1975-1978)
  • Ford E-250 Econoline Club Wagon (1975-1978)
  • Ford E-350 Econoline (1975-1978)
  • Ford E-350 Econoline Club Wagon (1977-1978)
  • Ford LTD II (1979)
  • Ford Mustang (1969-1970)
  • GMC C15/C1500 Pickup (1973)
  • GMC C25/C2500 Pickup (1967-1969, 1973)
  • GMC Jimmy (1973)
  • GMC K25/K2500 Pickup (1967-1969)
  • GMC K35/K3500 Pickup (1968-1969, 1973)
  • GMC P35/P3500 Van (1973)
  • GMC Sprint (1973)
  • GMC Suburban (1965)
  • Oldsmobile 442 (1965)
  • Oldsmobile 98 (1966)
  • Oldsmobile Cutlass (1965)
  • Oldsmobile Delta 88 (1966)
  • Oldsmobile F85 (1965)
  • Oldsmobile Starfire (1966)
  • Oldsmobile Toronado (1966)
  • Pontiac Bonneville (1972-1974)
  • Pontiac Catalina (1972-1974)
  • Pontiac Firebird (1972-1974)
  • Pontiac GTO (1970)
  • Pontiac Grand Am (1973)
  • Pontiac Grand Safari (1972-1974)
  • Pontiac Grandville (1972-1973)
  • Pontiac LeMans (1972-1974)
  • Pontiac Ventura (1972-1974)
