DELPHI part description

Product Description

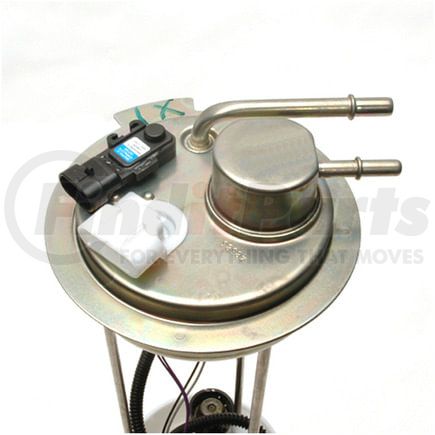

Fuel Pump Module Assembly

Product Attributes

Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor Yes
System Pressure 54 psi
Item Grade Standard Replacement
Fuel Type Flex
Outlet Outside Diameter 0.375 IN
Voltage 12.0 2H
Regulator Included Yes
Maximum Pressure 73.0 PS
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 40.0 82
Resistance Ohms Full 250.0 82
Internal Or External Strainer Internal
Pump Type Electric
Average Current Draw 11.0 68
Average Flow Rating 28.0 GPH

Additional Information

Harmonized Tariff Code (Schedule B) 8413309000
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) MX
UPC 00689604155905
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

Fits Vehicles

  • Chevrolet LCF 3500 (2016-2018)
  • Isuzu NPR-HD (2004-2008)
  • Isuzu NPR (2004-2008)
