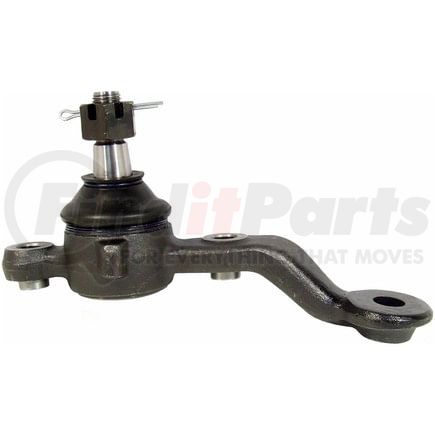

(888) 312-8812 Login SignupDELPHI TC2422 Ball Joint
Tap to view 2 more
MSRP: $69.69
$5999
Save $9.70
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC2422 Part Description
DELPHI TC2422 Specifications
Product Attributes
| Position(s) | Front Left Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.969 IN |
| Maximum Outside Diameter | 50.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 92 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.772 IN |
| Mounting Bolt Length | 45.00 MM |
| Washers Included | No |
| Height | 3.504 IN |
| Height | 89.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.591 IN |
| Stud Thread Length | 15 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 44.10 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.669 IN |
| Mounting Bolt Head Diameter | 17.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 0.965 IN |
| Mounting Bolt Thread Length | 24.50 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.831 IN |
| Stud Tapered End 2 Diameter | 21.1 MM |
| Stud Tapered End 1 Diameter | 0.602 IN |
| Stud Tapered End 1 Diameter | 15.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604257456 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2422 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7355 |
| Toyota | 43340-39305, 43340-39376 |
DELPHI TC2422 Fits Vehicles
- Lexus GS300 (1993-1997)
DELPHI TC2422 Customer Reviews
No reviews yet
Be the first to review this product!
