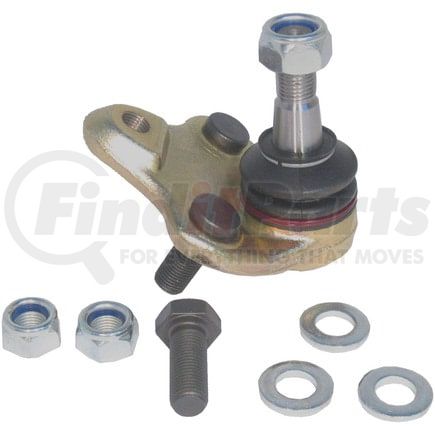

DELPHI TC1413 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1413 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.346 IN |
| Maximum Outside Diameter | 85.00 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 85 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.457 IN |
| Mounting Bolt Length | 37.00 MM |
| Washers Included | Yes |
| Height | 3.307 IN |
| Height | 84.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.756 IN |
| Stud Thread Length | 19.2 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 55.90 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Head Diameter | 0.709 IN |
| Mounting Bolt Head Diameter | 18.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.984 IN |
| Mounting Bolt Thread Length | 25.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.594 IN |
| Stud Tapered End 2 Diameter | 15.1 MM |
| Stud Tapered End 1 Diameter | 0.713 IN |
| Stud Tapered End 1 Diameter | 18.1 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 98.00 MM |
| Length | 3.860 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252338 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1413 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4808, 101-5320, 101-5777 |
| CORTECO | 49399610 |
| DORMAN | BJ75065, BJ75065XL |
| Deeza | TY-F217 |
| Import Direct | BJ07010 |
| MAS Industries | B90309, BJ75065 |
| MOOG | K90309 |
| MOOG Chassis Products | K90309 |
| Mcquay-Norris | FA2211 |
| Mevotech | MK90309, MK9756, MS20244, MS20245, MS9806, MS9807 |
| N/A | GK9756, GK90309, BJ75065XL, 610.44022 |
| Raybestos Chassis | 505-1308 |
| TRW | JBJ681 |
| Toyota | 43330-09070, 43330-09090, 43330-09230, 43330-19115 |
DELPHI TC1413 Fits Vehicles
- Toyota Prius AWD-e (2019-2022)
- Toyota Prius Prime (2017-2022)
- Toyota RAV4 (2001-2005)
- Toyota Prius (2001-2003, 2016-2022)
- Toyota Corolla (1996-2008, 2019-2024)
- Toyota Celica (2000-2005)
- Geo Prizm (1996-1997)
- Chevrolet Prizm (1998-2002)
