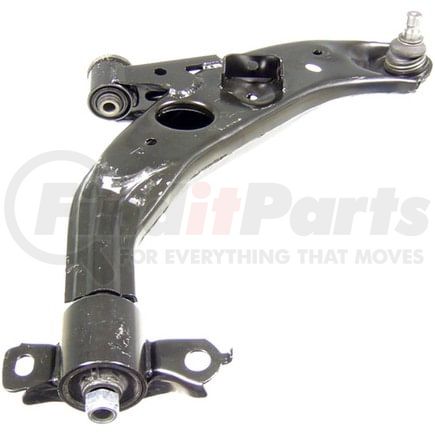

(888) 312-8812 Login SignupDELPHI TC1103 Control Arm and Ball Joint Assembly
Tap to view 2 more
$13249
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 25
DELPHI TC1103 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1103 Specifications
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 16.339 IN |
| Control Arm Maximum Width | 415.00 MM |
| Control Arm Color | Black |
| Ball Joint Stud Length | 3.228 IN |
| Ball Joint Stud Length | 82.00 MM |
| Control Arm Maximum Length | 18.307 IN |
| Control Arm Maximum Length | 465.00 MM |
| Mounting Hole Diameter | 18.00 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Mounting Hole Diameter | 0.709 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604250785 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1103 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4711, 102-4711 |
| CORTECO | 49399449 |
| DORMAN | CB30514, CB30514PR |
| Dorman | 520-266 |
| Ford | 3703128, GA6BE-34-300 |
| MAS Industries | CB30514, CB30514PR |
| MOOG Chassis Products | CK620321, K9615, RK620321, 102-4711 |
| Mazda | GA2A-34-300, GA2A-34-300A, GA6B-34-300A, GA6B-34-300E, GA6BE-34-300, GA6BE-34-350 |
| Mevotech | CMS7507 |
| N/A | GS7507 |
DELPHI TC1103 Fits Vehicles
- Mazda 626 (1992-1997)
- Mazda MX-6 (1993-1997)
- Ford Probe (1993-1997)
