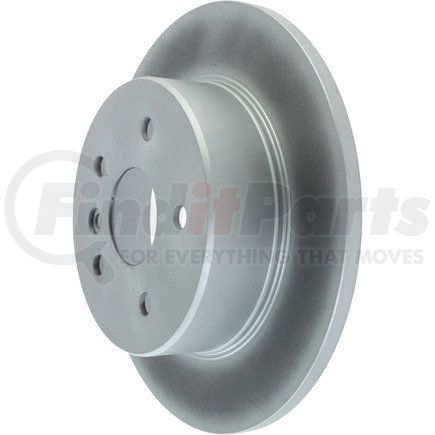

CENTRIC 320.44117 Part Description
Manufacturer
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.44117 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 3 |
| Max Pb Drum Dia [cntrc] Mm | 171.000 |
| Max Pb Drum Dia [cntrc] In | 6.732 |
| Weight [cntrc] Kgs | 5.450 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 12.000 |
| Discard Thickness | 11.000 MM |
| Discard Thickness | 0.433 IN |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 64.800 MM |
| Overall Height | 2.551 IN |
| Outside Diameter | 11.339 IN |
| Outside Diameter | 288.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 170.100 MM |
| Nominal Drum Diameter | 6.697 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590251081 |
