RAYBESTOS 96932 Part Description
Manufacturer
Product Description

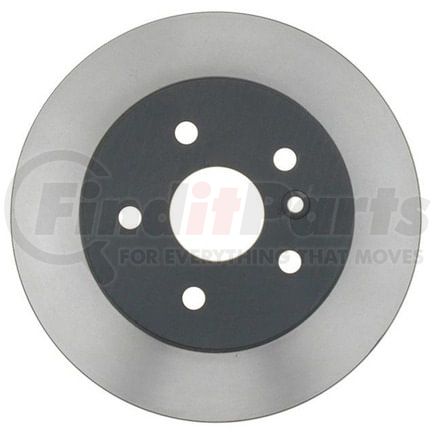

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2000 Toyota Avalon Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96932 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.433 IN |
| Discard Thickness | 11 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.34 IN |
| Outside Diameter | 288.05 MM |
| Overall Height | 2.56 IN |
| Overall Height | 65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730627113 |
RAYBESTOS 96932 Cross References
| Brand | Part Number |
|---|---|
| 74820400, 747730627113 | |
| ADVANCE AUTO PARTS | 145292, YH145292, YH145292C, YH145292P |
| AMERICAN REMANUFACTURED | 89-22121 |
| AUTOSPECIALTY | JBR934, JBR934E |
| AUTOXTRA | 126000, AX31268 |
| AUTOZONE | 31268, 31268DG |
| BECK/ARNLEY | 083-2870 |
| BENDIX | 145292 |
| BRAKEBEST | 50011238, 96932, 96932R, 96932RGS, BD126000 |
| BREMBO | 08.B462.10, 25853 |
| CENTRIC | 120.44117, 120.44117CRY, 121.44117, 126.44117SL, 126.44117SR, 127.44117L, 127.44117R, 320.44117, 321.44117 |
| CONTINENTAL-CONTITECH | CW12704 |
| Casting Numbers | 211284-C, 325522 |
| Centric Parts | 120.44117, 120.44117CRY, 121.44117, 126.44117SL, 126.44117SR, 127.44117L, 127.44117R, 320.44117, 321.44117 |
| DURA CORP | BR31268 |
| DuraGo | BR31268 |
| GUARDIAN | 52-126000 |
| MAGMA PRODUCTS | PSR563068 |
| MIGHTY DISTRIBUTING SYSTEM | 31268 |
| NEOTEK | 106398GF |
| NEWTEK AUTOMOTIVE | 31268 |
| Newtek Automotive USA | 31268 |
| PEP BOYS | 31268G |
| POWERSTOP | JBR934EVC |
| PROMAX | 14-31268 |
| PRONTO | BR31268 |
| QUALIS | 31268 |
| QUALITY BRAND | 31268, Q004 |
| STANDARD ROTORS AND DRUMS | 31268 |
| THE UNIVERSAL GROUP | 107299 |
| TOYOTA | 4243107030 |
| TRUSTAR | 479365 |
| TopNotch | TN96932GEO |
| UAP | 31268 |
| Universal | 107299 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51377 |
| WABCO | PS126000 |
| WABCO - Archived | PS126000 |
| WAGNER | BD126000, BD126000E |
| WAGNER BRAKE | BD126000 |
| WINHERE | 661411 |
| WORLDPAC | 1407-78942 |
| Wagner Brake | BD126000E |
RAYBESTOS 96932 Fits Vehicles
- Toyota Avalon (2000-2004)
