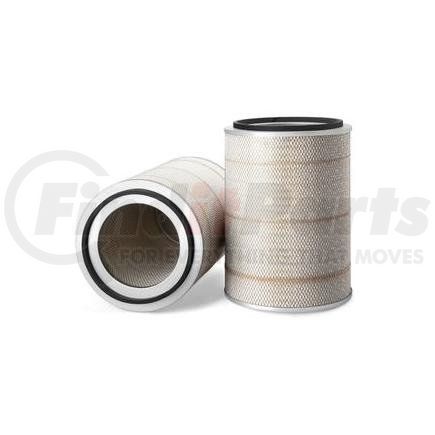

(888) 312-8812 Login SignupFLEETGUARD AF4583M Air Filter - Primary, 12.08 in. OD, Donaldson XLP772523
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FLEETGUARD AF4583M Part Description
FLEETGUARD AF4583M Specifications
Product Attributes
| Flame Resistant Media | No |
| Flow Direction | Outside In |
| Inside Diameter (Largest End) | 7.73 in. (196.34 mm) |
| Length | 16.68 in. (423.67 mm) |
| Notes | Primary |
| Outside Diameter (Largest) | 12.08 in. (306.83 mm) |
| Seal Type | Axial |
| Largest Id | 7.732 inch |
| Largest Od | 306.8 mm |
| Overall Length | 423.7 mm |
| Largest Outside Diameter | 12.07874668 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD AF4583M Cross References
| Brand | Part Number |
|---|---|
| FGAF4583M, H2BZ14A005L | |
| Atlas-Copco | 3216708100, 3216708101 |
| BALDWIN | LL2945 |
| Baldwin | PA2945 |
| Big A | 94698 |
| CARQUEST | 88698 |
| Case | 1201733H1 |
| Crosland | 8076 |
| DONALDSON | XLP772523 |
| Donaldson | P770819, P771523, P772523, P774525, SMP771523, XLP774525 |
| FRAM | CA2546 |
| Fiatagri | 1930788 |
| Filtron | AM4592 |
| Hengst | E1885L |
| John Deere | AZ39761 |
| Komatsu | 1201733H1 |
| Kralinator | LA1499 |
| LUBER-FINER | LAF8660 |
| Liebherr | 592160914, 7615043 |
| MAHLE | LX765 |
| Mann-Filter | C311310 |
| Massey Ferguson | LA1930788 |
| N/A | 1457433774, HF494, 3I1419, 321549350, 1201733H1, 503135344, 5615043, 026P772523, M2750512, S7368A, AP9761, SFA1523P, SA16523 |
| NAPA | 6698 |
| Nelson | 70753A |
| Permatic | FA3105 |
| Purflux | A283 |
| ROLLS ROYCE | CV9686 |
| Renault | 5000953712 |
| Rolls-Royce | CV9686 |
| Sakura | A54491 |
| Tecnocar | A914 |
| WIX FILTERS | WIX FILTERS, 46698 |
| Wix | 46698, 546698 |
| Woodgate | WGA1047 |
FLEETGUARD AF4583M Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD AF4583M Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
