(888) 312-8812 Login SignupMONROE 5527 OESpectrum Suspension Shock Absorber
Tap to view 3 more
$6249
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
MONROE 5527 Part Description
Manufacturer
Product Description

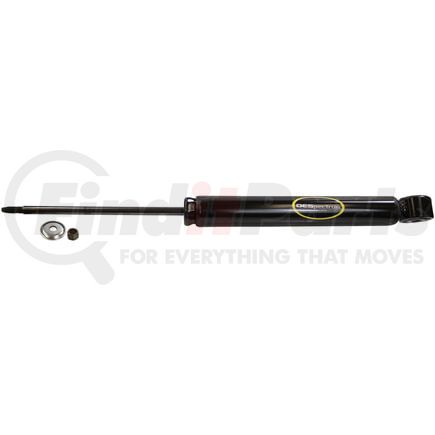

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5527 Specifications
Product Attributes
| Lower Mount Code | LS42 |
| Upper Mount Code | S1 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 13.74 IN |
| Extended Length | 23.02 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.5/16" Sleeve OAL |
| Parts Pack(s) | P01505 |
| Travel Length | 9.28 in |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Compressed Length | 349 MM |
| Extended Length | 584.7 MM |
| Travel Length | 235.7 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598178930 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5527 Part Interchanges
| Brand | Part Number |
|---|---|
| Volkswagen | 5C0413031AF, 5C0413031CS, 5C0413031T, 5C0513025AE, 5C0513025Q, 5C0513029AA, 5C0513029AB, 5C0513029AG, 5C0513029J, 5C0513029R |
| OEM | 5C0513029AA, 5C0513029AB, 5C0513025AE, 5C0513029R |
| KYB | 3430019, 349137 |
| NAPA Shocks | 5527 |
| PRT | 932849 |
MONROE 5527 Fits Vehicles
- Volkswagen Beetle (2012-2019)
MONROE 5527 Cross References
We have 6 alternatives for the 5527 by MONROE:
