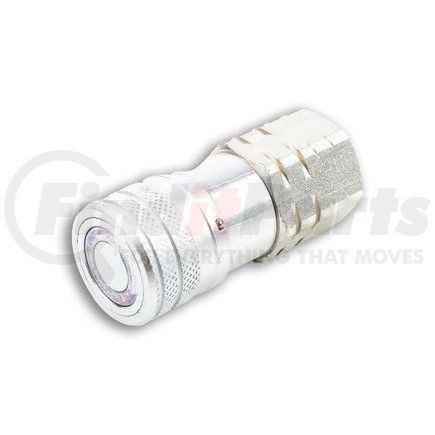

(888) 312-8812 Login SignupWEATHERHEAD 12FFS75 FF Series Hydraulic Coupling / Adapter - Female, 1.42" hex, 3/4-14 thread, 2-way valve
$143.59
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WEATHERHEAD 12FFS75 Part Description
Manufacturer
| Product Name | Eaton Hansen and Gromelle FF Series Quick Disconnect Couplings Socket |
| Compliances | European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3 REACH RoHS Compliant |
| Certifications | ISO 16028 |
| Torque | 43.8 lb/ft |
| Port size | 3/4 IN |
| Working temperature - min | -13 F |
| Working pressure | 5800 Psi |
| Finish/plating | Guardian Seal™ |
| Hex Size 1 | 1.42 IN |
| Connection style | Manual Connect |
| Burst pressure | 20300 Psi |
| Internal connection type | Flat Face |
| End type 2 | NPTF |
| End type 1 | Push to Connect |
| Working temperature - max | 212 F |
| Item type | Female Half |
| End Size 2 | 1/2 IN |
| Product material | Carbon steel |
| Thread sealant | No |
| Media | Hydraulic |
| Flow rate | 20.3 GQ |
| End Size 1 | 3/4 IN |
| Body size | 1/2 |
| Angle (shape) | Straight |
| Seal material | NBR+AU |
| End gender 2 | Male |
| Fluid compatibility | Hydraulic Spilage concern |
| Fluid loss | .012 CUC |
| Safety locking mechanism | Sleeve lock |
| Thread Size 1 | 3/4-14 |
| Air inclusion - max | .013 CUC |
| Application | Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size |
| End gender 1 | Male |
| Valve type | 2 way |
WEATHERHEAD 12FFS75 Customer Reviews
No reviews yet
Be the first to review this product!
WEATHERHEAD 12FFS75 Manufacturer Information
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
