RAYBESTOS 980823 Part Description
Manufacturer
Product Description

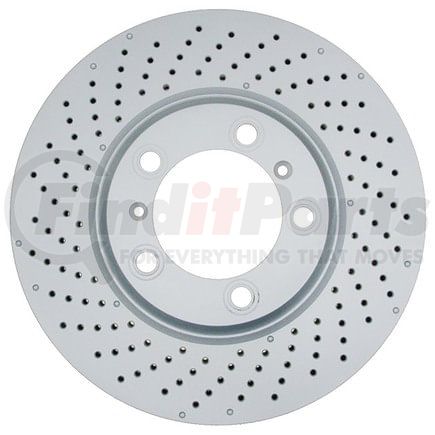

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2010-2009 Porsche 911 Front Left
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980823 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.9 IN |
| Center Hole Diameter | 98.0 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.3 IN |
| Discard Thickness | 32.0 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.1 IN |
| Mounting Bolt Hole Circle Diameter | 130.0 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.3 IN |
| Nominal Thickness | 34.0 MM |
| Outside Diameter | 8.0 IN |
| Outside Diameter | 204.0 MM |
| Overall Height | 2.7 IN |
| Overall Height | 69.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Directional |
| Inside Diameter | 8.0 IN |
| Inside Diameter | 203.5 MM |
| Material | 322.0 |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 15.5 MM |
| Bearings Included | No |
| Maximum Brake Diameter (Discard) | 330.0 MM |
| Rust Resistant Coating | Yes |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213020281 |
RAYBESTOS 980823 Cross References
RAYBESTOS 980823 Fits Vehicles
- Porsche 911 (2009-2010)
