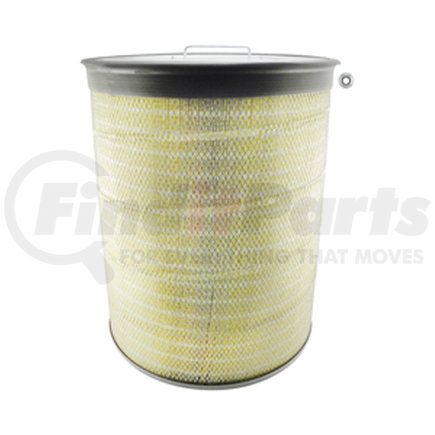

(888) 312-8812 Login SignupBALDWIN PA2363XP Engine Air Filter - Extreme Performance Axial Seal Element for Various Applications
$30199
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
BALDWIN PA2363XP Part Description
Manufacturer
Product Description
Extreme Performance Nano Air Element
Application Summary
Cat, Euclid, Hitachi, Terex, WABCO Equip
Extreme Performance Nano Air Element
BALDWIN PA2363XP Specifications
Product Attributes
| Inside Diameter 1 | 15/16 |
| Use With | {PA2364} |
| Replaces | Caterpillar 9Y6835; KW-Dart 3040562; Terex 6945659; WABCO VA2186 |
| Remark 2 | & |
| Remark 1 | Boot |
| Related to | {LL2363} (Long-Life Media Version);{PA2363} (Standard Media Version) |
| Outside Diameter 2 (mm) | 465.1 |
| Outside Diameter 2 | 18 5/16 |
| Outside Diameter 1 (mm) | 447.7 |
| Outside Diameter 1 | 17.625 |
| Inside Diameter 2 (mm) | 279.4 |
| Inside Diameter 2 | 11 |
| Inside Diameter 1 (mm) | 23.8 |
| Height (mm) | 597.7 |
| Height | 23.53125 |
| Furnished Gasket | [1] Included |
| Fits | Caterpillar, Euclid, Hitachi, KW-Dart, Terex, Unit Rig, WABCO Equipment |
| Attached Gasket | [2] Attached |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440090606 |
BALDWIN PA2363XP Cross References
| Brand | Part Number |
|---|---|
| BLDPA2363XP | |
| ACDELCO | A554C |
| AIR REFINER | ARM181038, ARM115069 |
| AMERICAN PARTS | 93440, 1147 |
| BALDWIN FILTERS | PA2363XP |
| BIG A FILTER | 93440, 1147 |
| BOWES | LAF5069 |
| CANADIAN FILTER CO. | CFM528 |
| CARQUEST | 87440XP |
| CATERPILLAR | 9Y7662, 9Y6835, 2925862, 3I0791 |
| CHAMPION LABORATORIES | LAF5069, AF5069 |
| CLARCOR UK | FMA0969 |
| CONTINENTAL AG | PCA573 |
| COOPERS | AEM2012 |
| CUMMINS | 3638679, 3015349, 3013214, 3010306 |
| CYCLONE | PMA115069 |
| DART TRUCKS | 3040562 |
| DELUXE | AF681, 681 |
| DEMAG | 988635 |
| DONALDSON | SRG290024, SRG290023, SRG290010, SRG290011, SRG290002, SRG290001, SRG290000, SRG200059, SRG200038, SRG200031, SRG200008, SMP181038, P181038, P184038, P148024, P140236, P129600, P126900, P115069, G290023, G200008, G290000, EAF5038, DBA7038 |
| EUCLID | E4082222, 6945659, 4082222, 4031216 |
| EUROFILTER | 3105 |
| FLEETGUARD | AF879NF, AF879, AA2906 |
| FLEETLIFE | FA115069 |
| FLEETRITE | AFR8879, AAR82906 |
| FRAM | CA573 |
| GARDNER DENVER | 5825543 |
| GFF | AF486280 |
| GLOBAL FILTERS | 62363 |
| GM GENERAL MOTORS | 9059560, 9059510, 8994204, 6947176, 6945659, 6945186, 645185 |
| GONHER | GA573, GA879 |
| GRAINGER | 46T383, 2NVJ2 |
| GUARDIAN FILTER CO. | G115069 |
| HEAVY DUTY AIR | HDA5069, A3888 |
| HITACHI | L4331923, 4331923 |
| INGERSOLL RAND | 52242971, 57087264, 56964562 |
| JURA (HIFI) | SA10829 |
| KENWORTH | 3040553, 3040562, 10005140, 3040683 |
| KRALINATOR | LA528 |
| LEROI | 43669 |
| LETOURNEAU | YA0003, VA0003, PB1242, PB0687, 4078927, 1438, VS2186, PB2433 |
| LUBER-FINER | LAF5079, LAF5069, LAF5069MXM |
| M.T.U. | 8690940080 |
| MANN+HUMMEL | C453265X |
| MARATHON | 4078927 |
| NAPA GOLD | 2440NP, 2440 |
| NELSON | 70400N |
| NELSON-WINSLOW | 115069 |
| NORTHWEST | 62101232 |
| NU-TECH | S2587, N2587 |
| O&K ORENSTEIN & KOPPEL | 1408439, 101080 |
| PROMATCH | 9Y6835 |
| PURE FLOW | PAF5069 |
| PUROLATOR | AF2919, AF2916, A72919 |
| QUAKER STATE | QSA573 |
| REFILCO | AF2440 |
| REYTOR | IT115069 |
| RYCO | HDA5370, HDA5069 |
| SAKURA | A9217S, A9217 |
| SF-FILTER / SCHUPP | SL8944 |
| SICARD | 10005140 |
| SURE FILTER TECHNOLOGY | SFA0879P |
| TEREX | 6945659 |
| UNIT RIG | 901727, 23126, 20801 |
| UNITED ENGINE LIFE | U15069 |
| V.M.E. (VOLVO-MICHIGAN-EUCLID) | 40822223, 4082222 |
| VOLVO | VOE40822223, VOE4082222, 40822223, 4082222 |
| WABCO | VS2186, VA0003, TA3537, PB2433, PB1242, PB0687 |
| WIX | 42440NP, 42440 |
| WIX FILTERS | WIX FILTERS, 42440NP, 42440 |
| WOODGATE | WGA393 |
BALDWIN PA2363XP Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PA2363XP Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
