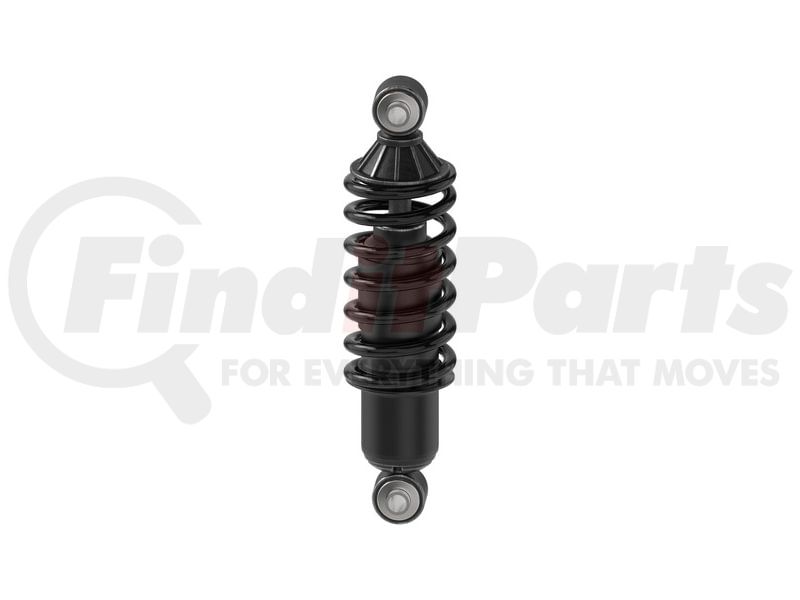

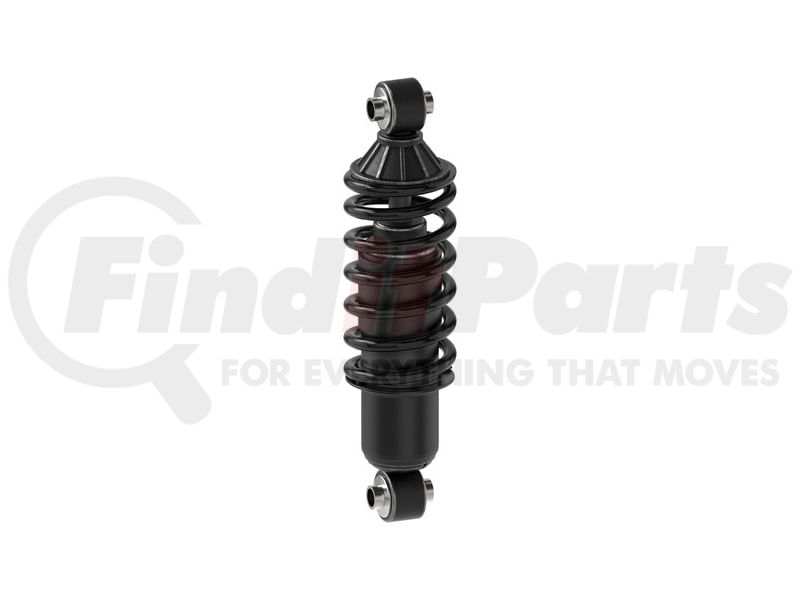

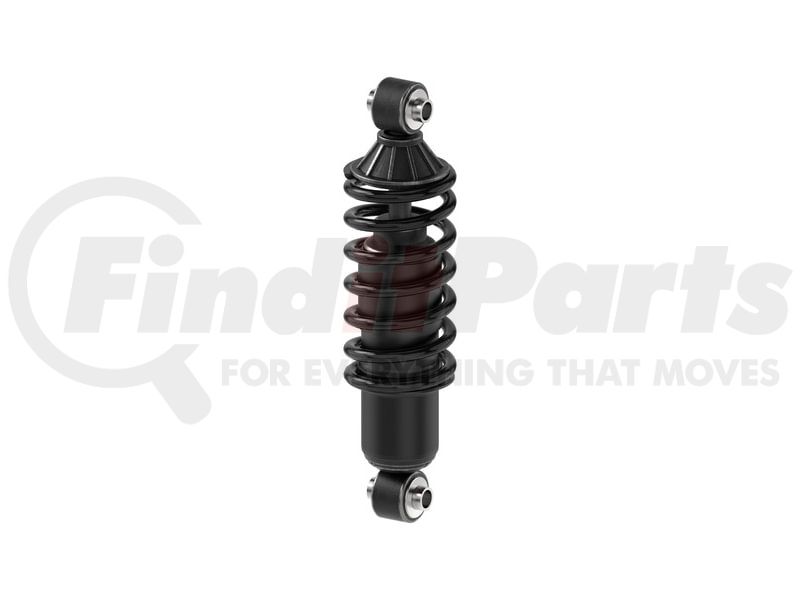

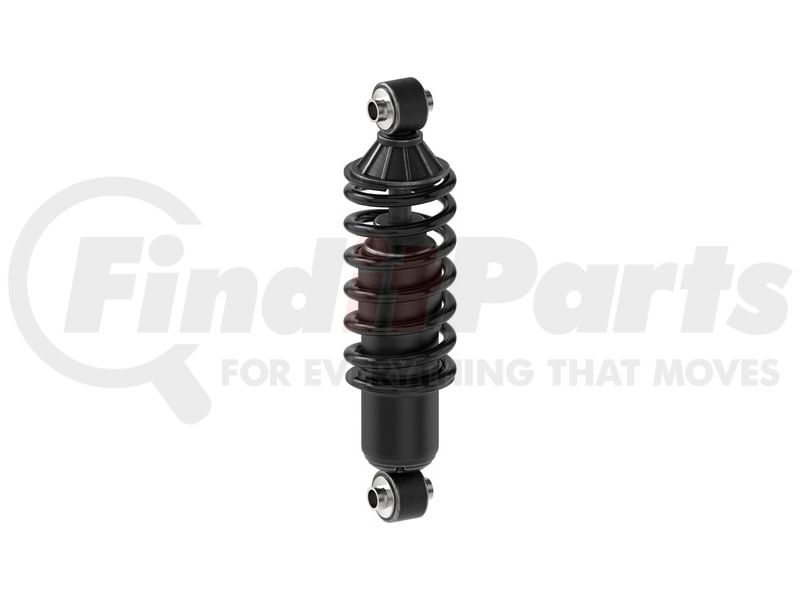

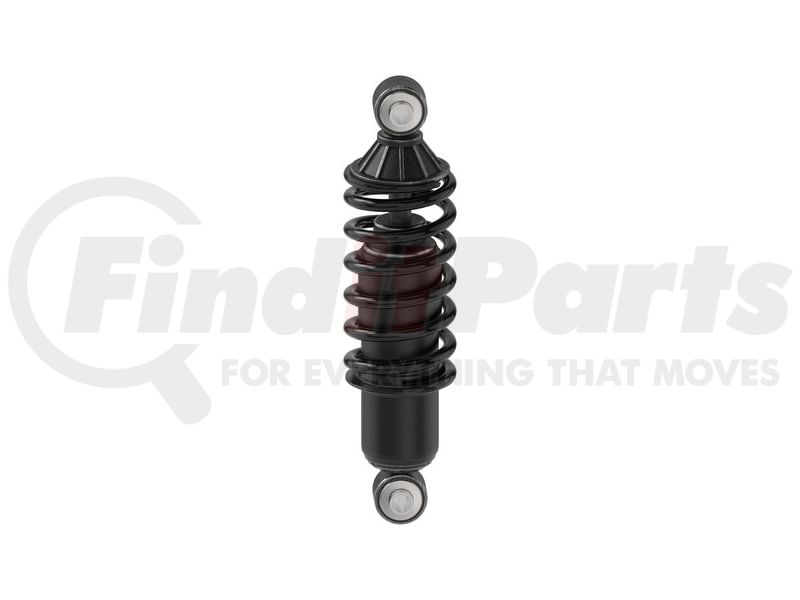

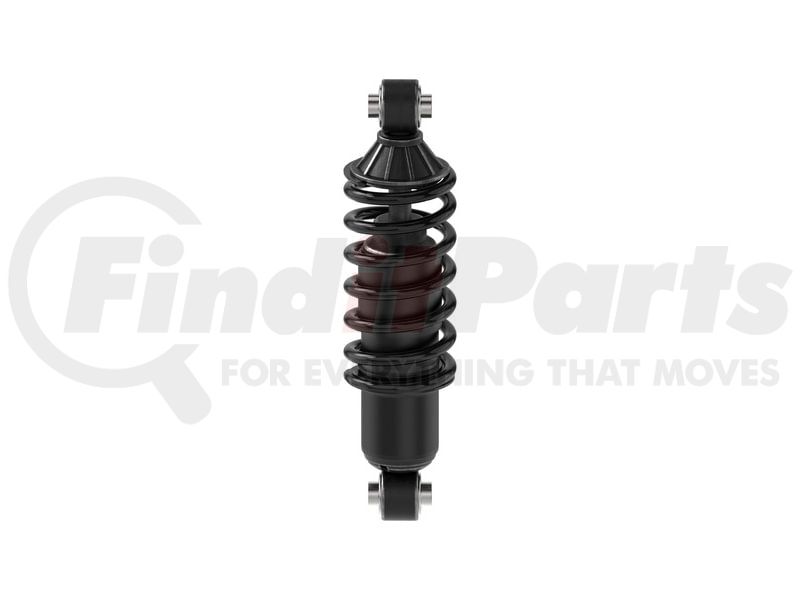

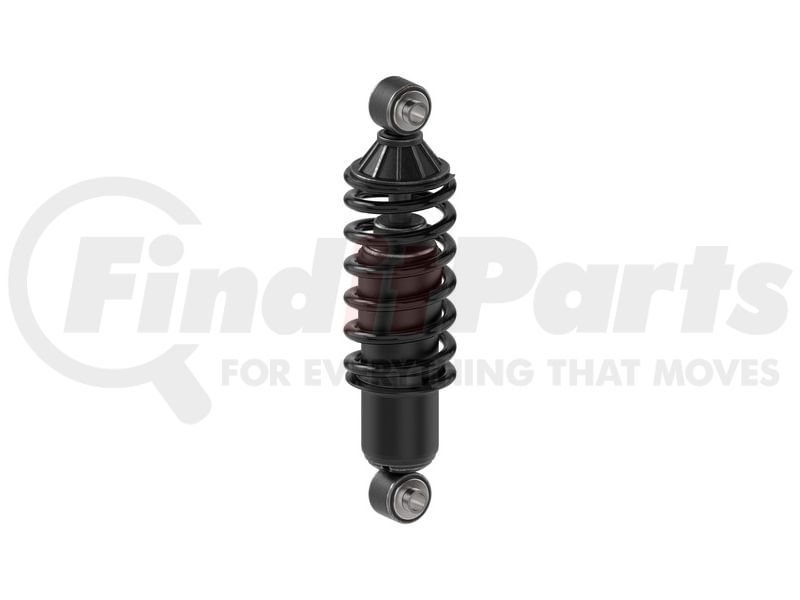

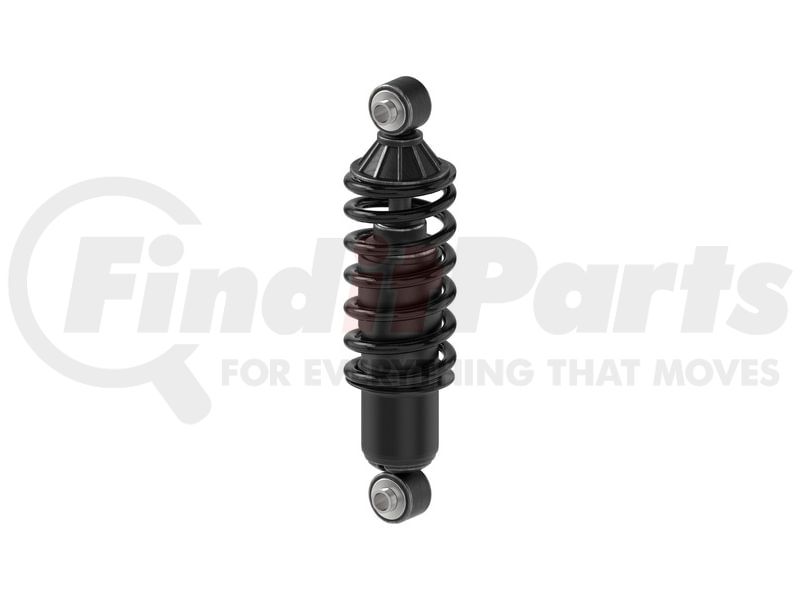

(888) 312-8812 Login SignupMONROE 58648 Load Adjusting Ensamble de Amortiguador y Muelle de Resorte Paquete de 2
Tap to view 11 more
MSRP: $297.92
$17449
Save $123.43
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
MONROE 58648 Part Description
Manufacturer
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58648 Specifications
Product Attributes
| Compressed Length | 266.4 MM |
| Compressed Length | 10.49 IN |
| Extended Length | 15.6 in |
| Extended Length | 395.5 MM |
| Travel Length | 129 MM |
| Travel Length | 5.08 in |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.5/8" Sleeve OAL |
| Lower Mount Code | LS28 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 41.28MM Sleeve OAL |
| Upper Mount Code | LS28 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Parts Pack(s) | None |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Damping Type | Oil |
| Grade Type | Premium |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598006806 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58648 Cross References
| Brand | Part Number |
|---|---|
| 58648ST, FV6Z14A318BJA | |
| Chrysler | 4670688AB, 4670693AD, 4670693AE, 4670693AF, 4670693AG, 4721686AB, 4721686AC, 4721690AB, 4721690AC, 4721691AB, 4721691AC, 4721692AC, 4743566AA, 4743658AA, 5151600AB, 5151610AB, 5168572AA, 68033952AA, 68042864AA, 68087339AA, 68138247AB, 68138247AC, 68138247AD, 68138247AE, 68144122AB, 68144122AC, 68144123AB, 68144123AC, 68144549AB, 68144549AC, 68144549AD, 68144549AE, 68156980AA, 68156980AB, 68158083AA |
| Dodge | 4670688AB, 4670693AD, 4670693AE, 4670693AF, 4670693AG, 4721686AB, 4721686AC, 4721687AB, 4721690AB, 4721690AC, 4721691AB, 4721691AC, 4721692AB, 4721692AC, 4743566AA, 4743658AA, 5151600AB, 5151610AB, 5151630AA, 5168572AA, 5168573AA, 68033950AB, 68033952AA, 68042864AA, 68050141AA, 68050141AB, 68087339AA, 68092726AA, 68138247AB, 68138247AC, 68138247AD, 68138247AE, 68138247AF, 68144122AB, 68144122AC, 68144123AB, 68144123AC, 68144549AB, 68144549AC, 68144549AD, 68144549AE, 68144549AF, 68144550AD, 68156980AA, 68156980AB, 68156980AC, 68158083AA, 68158085AA |
| FCS | SC00021 |
| GABRIEL | G64042 |
| NAPA Shocks | 58648 |
| OEM | 7B0513031B, 4721691AC, 68144549AC, 68138247AC, 7B0513031G, 7B0513031F, 4721690AC, 5168572AA, 68138247AB, 7B0513031J, 4670693AD, 68144549AD, 7B0513031C, 68138247AD, 5151610AB, 4721692AC, 5151600AB, 7B0513031K |
| Ram | 4670693AG, 68138247AB, 68138247AC, 68138247AD, 68138247AE, 68144122AB, 68144549AE, 68158083AA |
| Volkswagen | 7B0412031, 7B0412031B, 7B0412031C, 7B0513031A, 7B0513031B, 7B0513031C, 7B0513031D, 7B0513031E, 7B0513031F, 7B0513031G, 7B0513031J, 7B0513031K, 7B0513031P, 7B0513031Q, 7B0513031R |
MONROE 58648 Fits Vehicles
- Ram C/V (2012-2015)
- Volkswagen Routan (2009-2014)
- Dodge Grand Caravan (2008-2020)
- Chrysler Town & Country (2008-2016)
