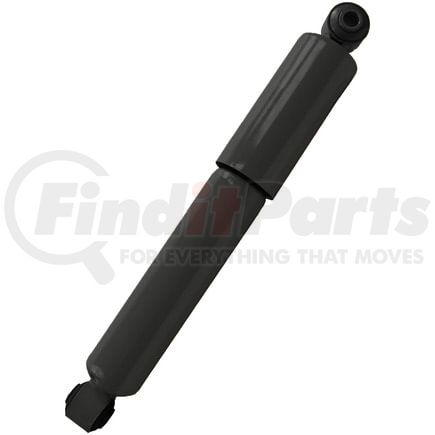

(888) 312-8812 Login SignupMagnum Suspension Shock Absorber
| Lower Mount Code | LS54 |
| Upper Mount Code | LS53 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Internal Construction Type | Twin Tube |
| Adjustable Damping | No |
| Color | Black |
| Finish | Painted |
| Shock Absorber Bore Size | 1-3/4 IN |
| Foam Cell Design | No |
| Shaft Diameter | 18 MM |
| Compressed Length | 14.63 IN |
| Extended Length | 23.61 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.97 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Compressed Length | 371.6 MM |
| Extended Length | 599.7 MM |
| Travel Length | 227.8 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Bore Size | 44.5 MM |
| Shock Absorber Bore Size | 1.75 IN |
| Adjustable Damping | No |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS54 |
| Upper Mount Code | LS53 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598127174 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| G2BZ5827406BE, 65179MM | |
| BULLDOG HD SHOCKS | HD1215-0154 |
| Fleetrite | AMS65179 |
| GABRIEL | 85995 |
| INTERNATIONAL | 3810581C4, 3806341C3, 3810581C3, 3806341C4 |
| International Harvester (IHC) | 3810581C3 |
| Monroe Shocks & Struts | OE18169 |
| Monroe Vintage | OE18169 |
| NAPA Shocks | 65179 |
| Navistar | 3806341C3, 3806341C4, 3810581C3, 3810581C4, 4164150C1 |
| OEM | 3810581C3 |
