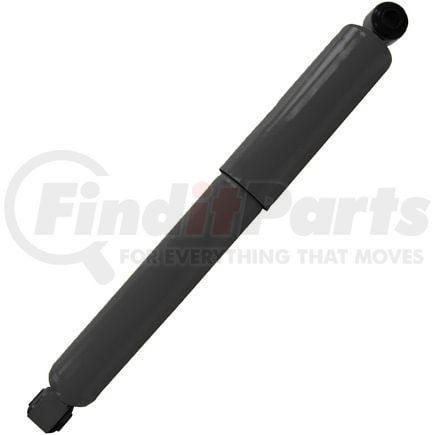

(888) 312-8812 Login SignupShock Absorber
| Compressed Length | 14.45 IN |
| Compressed Length | 367 MM |
| Extended Length | 22.86 in |
| Extended Length | 580.6 MM |
| Travel Length | 8.41 in |
| Travel Length | 213.6 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS54 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Upper Mount Code | LS54 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598127631 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 66448MM, GA1Z5804608CB | |
| Bulldog HD | HD12140528 , HD12140528 |
| Freightliner | 1617684000 |
| GABRIEL | 85058, 89431 |
| NAPA Shocks | 66448 |
| OEM | 1617684000 |
| PRT HD | 925116 |
| SACHS NORTH AMERICA | 316834, 471700003011 |
| Sachs | 316834, 471700003011 |
