MONROE part description

Product Description

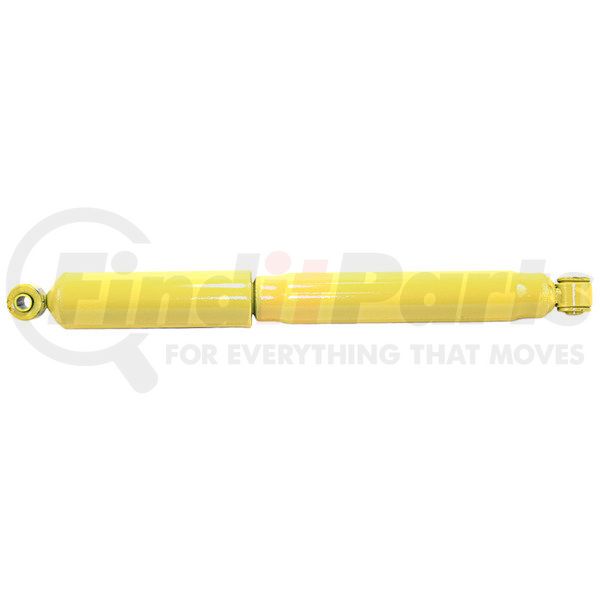

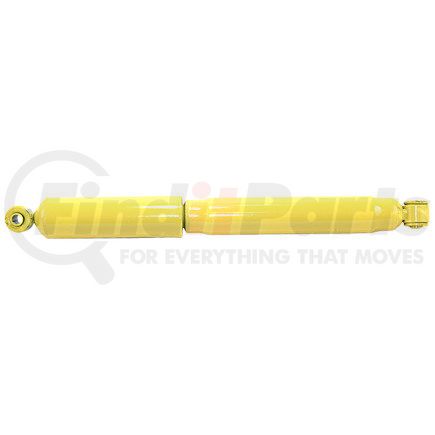

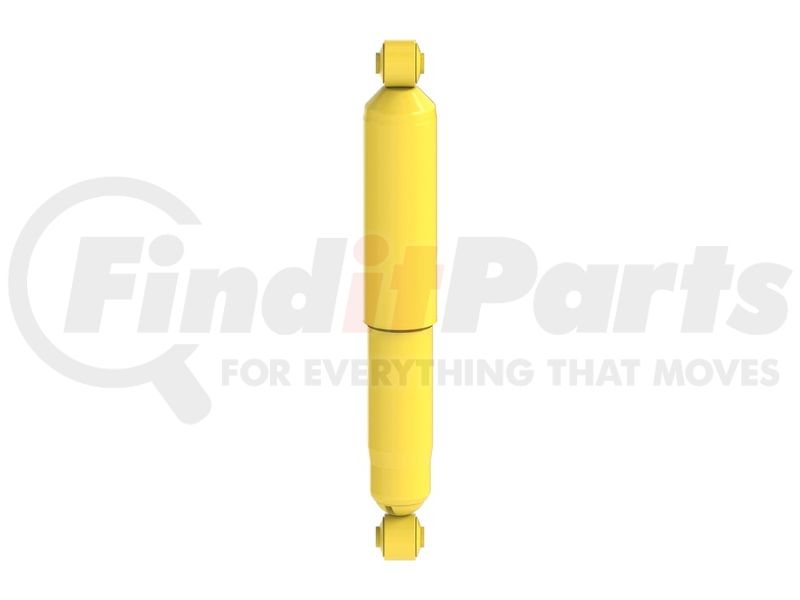

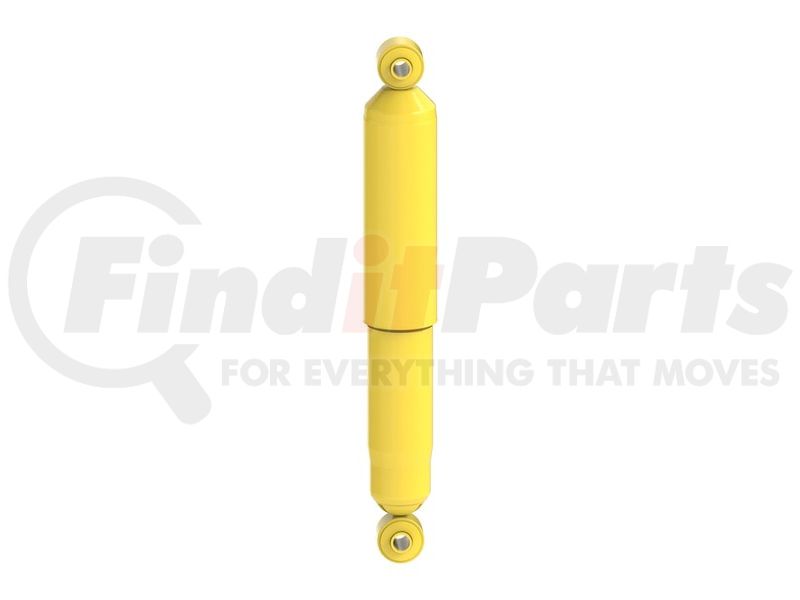

Gas-Magnum Shock Absorber

Application Summary

2011-2021 Ram 1500 Sport SLT ST Laramie Big Horn Tradesman Outdoorsman Laramie Longhorn Express Lone Star Special Service Laramie Limited (Rear) (Rear Spring: Coil & Mfr Body Code: DS & Drive: 4WD, RWD / Qualifier: Premium, Old Body Style); 2019-2022 Ram 1500 Classic (Rear) (Rear Spring: Coil / Qualifier: Premium); 2009-2010 Dodge Ram 1500 (Rear) (Drive: RWD, 4WD / Qualifier: Premium, without Air Suspension)

Features & Benefits

  • DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
  • Diámetro de 1-3/8 pulgadas: menor presión de funcionamiento que las unidades estándar de 1 pulgada
  • BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
  • Tubo de reserva de 2 pulgadas: más fluido para un rendimiento más consistente.
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
  • Vástago de pistón de 5/8 pulgadas: Barra nitrocarburada de alta resistencia para una larga vida útil. Solo en unidades sin cubrepolvos
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • Fluido para todo clima: Contiene modificadores especiales para reducir la fricción y asegurar una reacción suave de la barra.
  • LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
  • Valvulado desplazado completo: Mejor rango de valvulado en los ciclos de compresión y extensión de la unidad para una conducción suave y cómoda
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • Cargado con gas nitrógeno: Para una mejor conducción y manejo, ayuda a mantener el contacto de la llanta con el suelo al reducir la aireación - en la mayoría de las aplicaciones
  • Pistón de hierro sinterizado: Más fuerte que los metales tradicionales, mejora la durabilidad para una vida útil más larga.
  • Retén especial: Retén de fluido "autolubricante" diseñado para retener el gas sin desgaste o fricción excesivos

Product Attributes

Compressed Length 16.42 IN
Travel Length 9.11 in
Extended Length 25.53 in
Gas Charged Yes
Dust Shield Included No
9783 No
9789 LS47
9791 LS47
9792 No
9908 Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Part Description Shock Absorber
Parts Pack(s) None
Upper Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number 01164
UPC 00048598136947
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.

Fits Vehicles

  • Ram 1500 Classic (2019-2022)
  • Ram 1500 (2011-2021)
  • Dodge Ram 1500 (2009-2010)
