(888) 312-8812 Login SignupCENTRIC 102.03680 C-Tek Semi-Metallic Brake Pads with Shims
Tap to view 2 more
$24.69
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 102.03680 Part Description
Manufacturer
Product Description

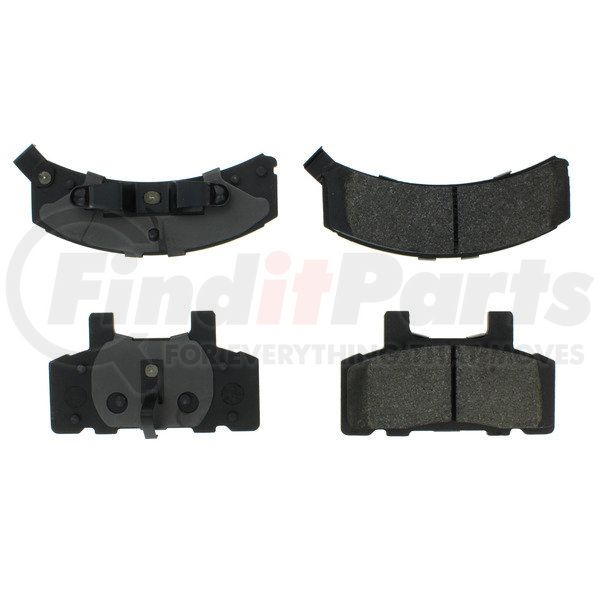

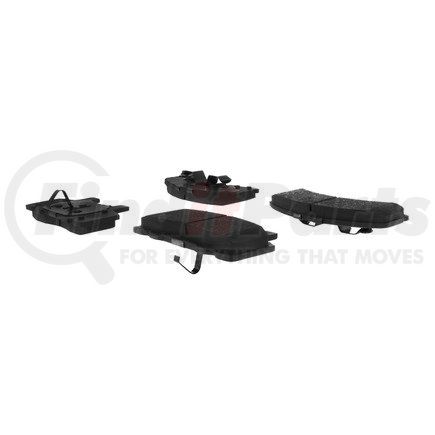

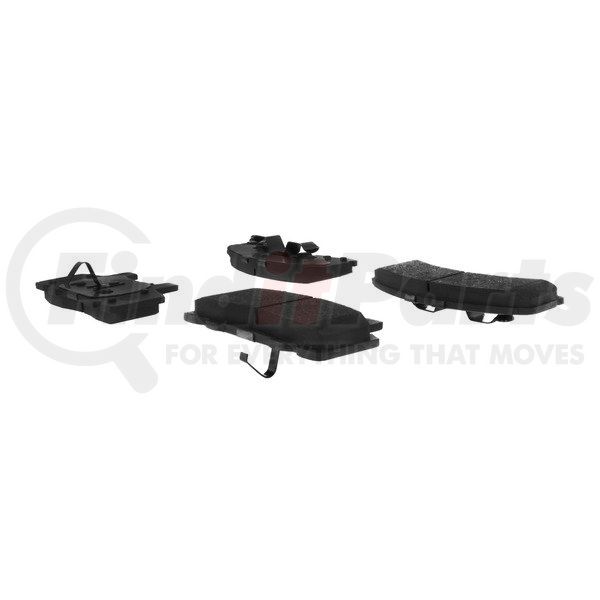

C-Tek Semi-Metallic Brake Pads with Shims
Features & Benefits
- Shimmed to eliminate noise and vibration. Formulated for reduced noise. Semi-Metallic compounds. Post cured for consistent performance throughout the service life of the brake pad. 100% Asbestos and Copper free formulas.
- C-TEK® brake pads are OE matched providing consistent stopping power
- C-TEK(R) brake pads are OE matched providing consistent stopping power
- OE Matched
- Vibration Damping Shims
- For optimal noise control over a wide temperature range
- OE Matched Slots and Chamfers
- Slots & chamfers match OE design, allowing for less noise, vibration, and harshness.
CENTRIC 102.03680 Specifications
Product Attributes
| Weight [cntrc] Kgs | 2.18 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Notes01 [cntrc] | 2 Pads with 1 Wear Sensor |
| Hardware Kit Number [cntrc] | 117.62022 |
| Weight [cntrc] Lbs | 4.80 |
| Product Grade [cntrc] | Standard |
| Pad Wear Sensor Included | Yes |
| Friction Material Composition | Semi-Metallic |
| Mounting Hardware Included | No |
| Pad Shims Included | Yes |
| Friction Material Attachment | Integrally Molded |
| Pad Quantity | 4 |
| Prepared For Pad Wear Sensor | Yes |
| Outer Pad Height | 2.354 IN |
| Outer Pad Height | 59.800 MM |
| Inner Pad Height | 72.900 MM |
| Inner Pad Height | 2.870 in |
| Outer Pad Width | 147.300 MM |
| Outer Pad Width | 5.799 IN |
| Inner Pad Width | 125.700 MM |
| Inner Pad Width | 4.949 in |
| Outer Pad Overall Thickness | 15.700 MM |
| Outer Pad Overall Thickness | 0.618 in |
| Inner Pad Overall Thickness | 16.600 MM |
| Inner Pad Overall Thickness | 0.654 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305090 |
| UPC | 00805890057901 |
CENTRIC 102.03680 Cross References
| Brand | Part Number |
|---|---|
| BRAKE PRO | BKP368M |
| MAGMA PRODUCTS | MXD368M |
| N/A | MS7259, SS7259M, AE7259M, TS7259M, ZX368, MX368, 7259D368, D368, 1402-69917, 2836801, 2836803, ED368V, 12321428, 12321447, 18012226, 18012232, 18014155, 18014733, 18024901, 18024903, BP1397M, MRD368, RPD368M, SGD368M |
| PRONTO | BP368MS |
| RAYBESTOS | PGD368QS, PG D368QS, MGD368M, SP368TR, SGD368M, PG-D368M |
| VORTEX | VXD368M |
CENTRIC 102.03680 Fits Vehicles
- Chevrolet K1500 (1988-1991)
- GMC K1500 (1988-1991)
- Chevrolet Cargo Van (1997-2000)
- Chevrolet C1500 (1988-1991)
- GMC C1500 (1988-1991)
