(888) 312-8812 Login SignupCENTRIC 125.62040 Premium High Carbon Alloy Brake Rotor
*Representative image - actual part not displayed
$97.83
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.62040 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

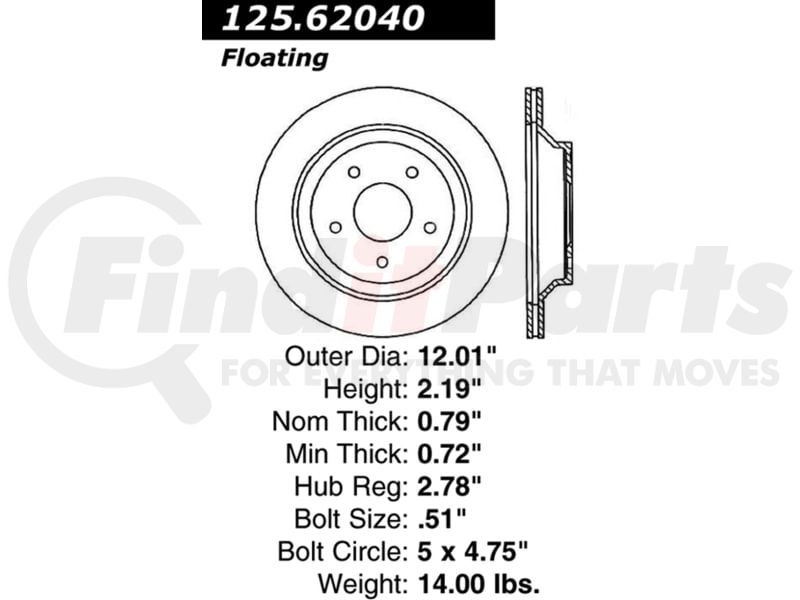

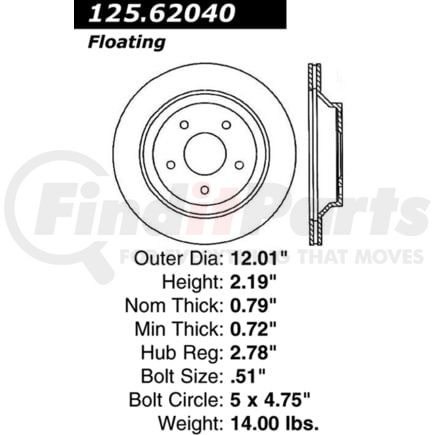

CENTRIC 125.62040 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.360 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 14.000 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 120.650 MM |
| Mounting Bolt Hole Circle Diameter | 4.750 IN |
| Center Hole Diameter | 70.700 MM |
| Center Hole Diameter | 2.783 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.008 IN |
| Outside Diameter | 305.000 MM |
| Overall Height | 55.600 MM |
| Overall Height | 2.189 IN |
| Hat Finish | Painted |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Discard Thickness | 18.400 MM |
| Discard Thickness | 0.724 IN |
CENTRIC 125.62040 Cross References
CENTRIC 125.62040 Fits Vehicles
- Chevrolet Corvette (1988-1994)
