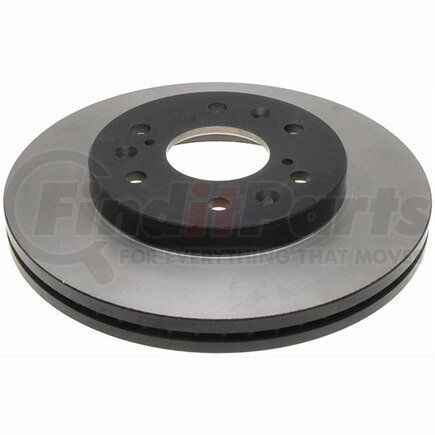

ACDelco 18A1705 - Disc Brake Rotor - 6 Lug Holes, Cast Iron, Plain Turned, Vented, Front
$12449
MSRP: $129.83
Save: $5.34
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
ACDELCO part description
Gold™ Disc Brake Rotor - Front, Vented
Product Description
Front Brake Rotor
Product Attributes
| Nominal Thickness | 30mm (1.181 in.) |
| Center Hole Diameter | 78.74mm (3.1 in.) |
| BOLT CIRCLE | 140.462mm (5.53 in.) |
| Lug Holes Quantity | 6 |
| Minimum Thickness | 27.991mm (1.102 in.) |
| Minimum Thickness | 27.991mm (1.102 in.) |
| Quantity | 1 Per Pack |
| Quantity | 1 Per Pack |
| Rotor Construction | 1-Piece |
| Rotor Construction | 1-Piece |
| Rotor Design | Rotors Only |
| Rotor Design | Rotors Only |
| Rotor Diameter | 330mm (12.99 in.) |
| Rotor Diameter | 330mm (12.99 in.) |
| Rotor Finish | Turned |
| Rotor Finish | Turned |
| Rotor Height | 55.88mm (2.2 in.) |
| Rotor Height | 55.88mm (2.2 in.) |
| Rotor Material | Cast Iron |
| Rotor Material | Cast Iron |
| Rotor Style | Plain |
| Rotor Style | Plain |
| Rotor type | Vented |
| Rotor type | Vented |
| Discard Thickness | 1.102 IN |
| Nominal Thickness | 1.181 IN |
| Height (in) | 2.2 in |
| Pad Contact Surface Width | 2.3 IN |
| Center Bore Diameter (in) | 3.1in |
| Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Length (In) | 13.3 IN |
| Width (in) | 13.3 in |
| Weight | 26 lb |
| Outside Diameter | 329.95 MM |
| Bearings Included | No |
| Height (mm) | 55.5 mm |
| Pad Contact Surface Width | 58.9 MM |
| Center Bore Diameter (mm) | 78.6mm |
| Bolt Circle Diameter (mm) | 139.7 mm |
| Bolt Circle Diameter (in) | 139.7 mm in |
| Overall Height | 2.19 IN |
| Overall Rotor Diameter (mm) | 329.95mm |
| Outside Diameter | 12.99 IN |
| Features & Benefits - Bullet 1 | Cross drilled for quick brake response and heat dissipation |
| Product Description | ACDelco Gold (Professional) Non-Coated Disc Brake Rotor and Hub Assemblies are a high quality alternative to Original Equipment (OE) parts. These rotors are mounted to the wheel hub where the calipers can press the brake pads against the brake surface to help stop the vehicle. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including special applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Material | Cast Iron |
| Construction | Full Cast |
| Programming Required | No |
| Slotted | No |
| Grade Type | Performance |
| Surface Type | Smooth |
| Hat Finish | Turned |
| Disc Finish | Turned |
| Solid Or Vented Type Rotor | Vented |
| Rust Resistant Coating | Yes |
| Features & Benefits - Bullet 2 | Black coating on hat and vanes |
| Features & Benefits - Bullet 3 | Quality validated for proper metallurgy and correct brake plate thickness |
| Features & Benefits - Bullet 4 | Tighter tolerances similar to GM OE specifications |
| Features & Benefits - Bullet 5 | Some ACDelco Gold parts may have formerly appeared as ACDelco Professional |
| Features & Benefits - Bullet 6 | Premium aftermarket replacement part |
| Features & Benefits - Bullet 7 | Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models |
| Discard Thickness | 28 MM |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 15.9 MM |
| Mounting Bolt Hole Diameter | 0.625 IN |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 30 MM |
| Center Hole Diameter | 78.5 MM |
| Center Hole Diameter | 3.09 IN |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Stud/Lug Hole Quantity | 6 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Overall Height | 55.65 MM |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | TX |
| UPC | 00707773321423 |
Fits Vehicles
- GMC Yukon XL (2015-2020)
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019)
- Chevrolet Silverado 1500 Classic (2007)
- Cadillac XTS (2013-2019)
- GMC Sierra 1500 Classic (2007)
- GMC Sierra 1500 (2005-2018)
- GMC Savana 1500 (2009-2014)
- Chevrolet Silverado 1500 (2005-2018)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Express 1500 (2009-2014)
- Chevrolet Suburban (2015-2020)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2020)
- Cadillac Escalade (2007-2020)
- Chevrolet Tahoe (2007-2020)
- GMC Yukon XL 1500 (2007-2014)
- GMC Yukon (2007-2020)
- Chevrolet Avalanche (2007-2013)
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
