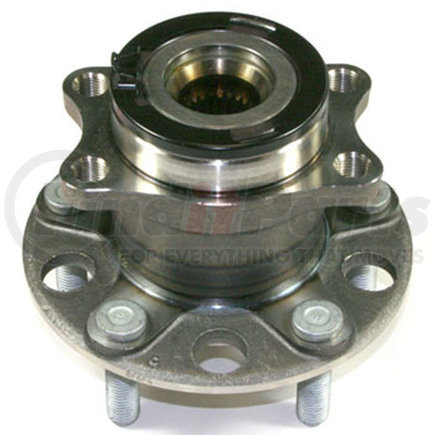

(888) 312-8812 Login SignupCENTRIC 401.63000 Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 401.63000 Part Description
Manufacturer
Product Description
Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 401.63000 Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Notes [cntrc] | Flange Holes 5 x 0.710", Magnetic ABS Encoder (Seal) |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] In | 60.270 |
| Inner Mount Pilot [cntrc] Mm | 73.810 |
| Inner Mount Pilot [cntrc] In | 2.906 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Mounting Hole Qty [cntrc] | 4 |
| Off-set [cntrc] Mm | 2.373 |
| Spline Quantity | 25 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.730 MM |
| Wheel Pilot Diameter | 2.627 IN |
| Brake Pilot Diameter | 79.780 MM |
| Brake Pilot Diameter | 3.141 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.512 IN |
| Flange Diameter | 140.000 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890634119 |
CENTRIC 401.63000 Cross References
| Brand | Part Number |
|---|---|
| BCA | WE60468 |
| GMB | 7200347 |
| MEVOTECH | H512333 |
| N/A | H512333, HA590230, 512333, BR930649, 512381, RWF190, WE60468, 05105 770AB, 05105 770AC, 05105 770AD, 05105 770AE, 05105 770AF, 05105770AA, 05105770AC, 05105770AD, 05105770AE, 05150577AF, 3785A009, 5150577AF, 5105 770AC, 5105 770AD, 5105 770AE, 5105 770AF, 5105770AA, 5105770AB, 5105770AC, 5105770AD, 5105770AE, 05105770AB, 05105770AF, 5105770AF, HUB091T 35, HUB091T25, HUB091T35, HUB091T36 |
| NTN | WE60468 |
CENTRIC 401.63000 Fits Vehicles
- Mitsubishi Lancer (2013-2017)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Dodge Caliber (2007)
