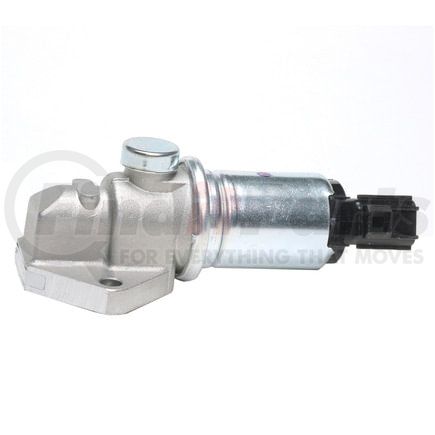

(888) 312-8812 Login SignupDELPHI CV10113 Fuel Injection Idle Air Control Valve
MSRP: $128.02
$9299
Save $35.03
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI CV10113 Part Description
Manufacturer
Product Description
Fuel Injection Idle Air Control Valve
Features & Benefits
- Delphi's 100% OE replacement idle air control valves allow for accurate, stable, and precise air flow during the idle phase
- Provides superior fit resulting in an easier installation
- Maximizes fuel and engine efficiency
- Manufactured and engineered with premium quality and stringent standards eliminating potential for malfunctions
DELPHI CV10113 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Injection Idle Air Control Valve, Gasket, Instruction Sheet |
| Length | 5.1 IN |
| Length | 130.0 MM |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Metal |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Housing Color | Silver |
| Installation Instructions Included | Yes |
| Mounting Hole Diameter | 0.27 IN |
| Mounting Hole Diameter | 7.0 MM |
| Port Quantity | 2 |
| Air Intake Port Maximum Diameter | 16 MM |
| Air Intake Port Maximum Diameter | 0.6 IN |
| Mounting Hardware Included | No |
| Connector Shape | Rectangle |
| Throttle Position Sensor Included | No |
| Voltage | 12.0 2H |
| Grade Type | Standard Replacement |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8481809020 |
| UPC | 00689604127155 |
| VMRS Code | 044003287 |
| UNSPSC | 25172405 |
DELPHI CV10113 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2171458, 2171803 |
| BLD | 3311 |
| BorgWarner | 31010 |
| Echlin | 220260 |
| Ford | F65Z 9F715-EA, F65Z 9F715-HA |
| HOLSTEIN | 2IAC0390 |
| Hitachi Automotive | ABV0054, AESP109-23A |
| Kem | 150-255 |
| Motorcraft | CX-1874 |
| N/A | AESP10923A, 150255, F65Z9F715EA, F65Z9F715HA, CX1874, 215-92037 |
| Niehoff | 31010 |
| STANDARD IGNITION | AC158 |
| Standard Motor Products | AC214, AC158 |
| WALKER PRODUCTS | 215-92037, 215-2037 |
| Wells | TV220, TV229 |
DELPHI CV10113 Fits Vehicles
- Ford F-250 (1997-1998)
- Ford F-150 (1997-1999)
- Ford Expedition (1997-2001)
