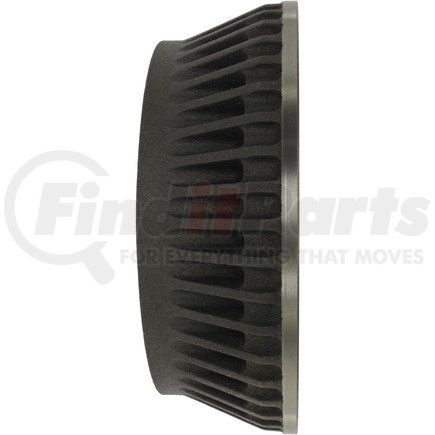

Centric 123.62012 - C-Tek Standard Brake Drum
$10399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 10.227 |
| Weight [cntrc] Lbs | 22.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Hub Hole / Register [cntrc] Mm | 70.866 |
| Hub Hole / Register [cntrc] In | 2.790 |
| Height [cntrc] Mm | 102.870 |
| Height [cntrc] In | 4.050 |
| Friction Surface Width [cntrc] Mm | 71.628 |
| Friction Surface Width [cntrc] In | 2.820 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 243.600 MM |
| Maximum Brake Diameter (Discard) | 9.590 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 305.054 MM |
| Outside Diameter | 12.010 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.462 MM |
| Mounting Hole Diameter | 0.530 IN |
| Nominal Drum Diameter | 241.300 MM |
| Nominal Drum Diameter | 9.500 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890915034 |
Part Interchanges
CENTRIC 123.62012 Cross Reference
We have 2 alternatives for the 123.62012 by CENTRIC:
Fits Vehicles
- Pontiac Tempest (1966-1968)
- Pontiac Firebird (1967-1968)
- Buick GS 455 (1970)
- Buick GS (1970)
- Buick Sportwagon (1965-1970)
- Buick Special (1964-1969)
- Pontiac LeMans (1966-1969)
- Pontiac GTO (1966-1968)
- Buick Gran Sport (1965-1966)
- Buick Skylark (1964-1972)
- Buick GS 400 (1968-1969)
- Buick GS 350 (1968-1969)
