(888) 312-8812 Login SignupMONROE MA785 Max-Air Air Adjustable Air Shock Absorber Pack of 2
Tap to view 5 more
MSRP: $184.99
$11499
Save $70.00
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 24
MONROE MA785 Part Description
Manufacturer
Product Description

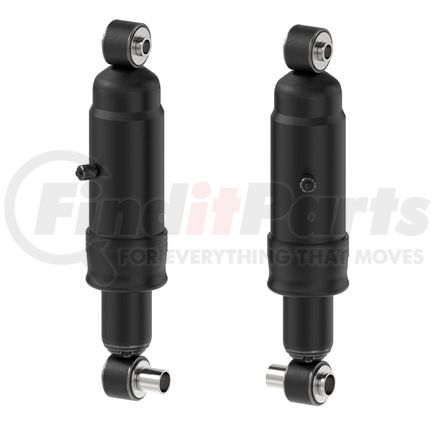

Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA785 Specifications
Product Attributes
| Compressed Length | 9.5 IN |
| Extended Length | 14 in |
| Travel Length | 4.5 in |
| Lower Mount Code | LS53 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Upper Mount Code | LS14 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.3/8" Sleeve OAL |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Hydraulic Lockout | No |
| Parts Pack(s) | (2) P00437 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | Yes |
| Compressed Length | 241.3 MM |
| Extended Length | 355.6 MM |
| Travel Length | 114.3 MM |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598031075 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA785 Part Interchanges
| Brand | Part Number |
|---|---|
| Gabriel | 49304 |
| ACDelco | 504557 |
| NAPA Shocks | MA785 |
MONROE MA785 Fits Vehicles
- Chevrolet Corvette (1963-1982)
MONROE MA785 Cross References
We have 3 alternatives for the MA785 by MONROE:
