MONROE part description

Product Description

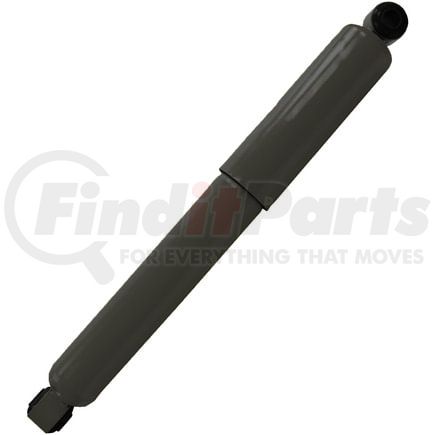

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791 LS54
9789 LS54
Dust Shield Included Yes
9783 No
9908 No
9792 No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 14 IN
Dust Shield Material Metal
Extended Length 22.5 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) None
Travel Length 8.5 in
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170095
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • International 5600i (1999-2014)
  • International 9400 (1990-1999)
  • International 8200 (1990-1998)
  • International 8100 (1990-2003)
  • International 9300 (1989-1999)
  • International 8300 (1989-1994)
  • International 9600 (1989-1996)
  • International 9700 (1989-1996)
  • International 4900 (1990-2003)
  • International 4800 (1990-2003)
  • International 4700 (1990-2003)
  • International 4600 (1990-1994)
  • Thomas School Bus (1988-1991, 2000, 2006)
