MONROE MA776 Part Description
Manufacturer
Product Description

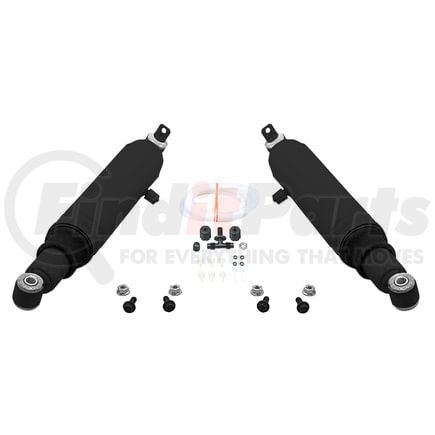

Max-Air Air Adjustable Rear Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA776 Specifications
Product Attributes
| Compressed Length | 15 IN |
| Compressed Length | 381 MM |
| Extended Length | 619.1 MM |
| Extended Length | 24.375 in |
| Travel Length | 9.375 in |
| Travel Length | 238.1 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Code | LS26 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Upper Mount Code | XP7 |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Parts Pack(s) | (2) P00941 |
| Part Description | Air Shock Absorber |
| Boot Included | Yes |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Grade Type | Premium |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598031617 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA776 Cross References
| Brand | Part Number |
|---|---|
| MA776MM, JC3Z2664417CA | |
| Ford | 1L2Z18124EA, 1L2Z18125HA, 1L5Z18125AA, 1L5Z18125KA, 3U2Z18124BN, 3U2Z18124CAA, 4L2Z18125DA, F1TZ18124C, F1TZ18124D, F1TZ18124E, F1TZ18124F, F1TZ18125C, F1TZ18125D, F1TZ18125E, F57Z18124MFA, F57Z18124SF, F57Z18125AC, F57Z18125BC, F57Z18125LG, F57Z18125RE, F5TZ18124B, F77Z18124VA, F77Z18124VB, XL2Z18124BA, XL2Z18125BA, XL2Z18125CA, XL2Z18125FA, XL2Z18125FB |
| GABRIEL | 49225, 49232 |
| Mazda | ZZL228700, ZZL334700 |
| Mercury | F57Z18124SF, F57Z18125AC, F57Z18125BC, F57Z18125LG, F57Z18125RE, F5TZ18124B, F77Z18124VA, F77Z18124VB, XL2Z18124BA, XL2Z18125FA, XL2Z18125FB |
| NAPA Shocks | MA776 |
MONROE MA776 Fits Vehicles
- Ford Explorer Sport (2001-2003)
- Ford Explorer Sport Trac (2001-2005)
- Mazda Navajo (1991-1994)
- Mercury Mountaineer (1997-2001)
- Ford Explorer (1991-2001)
