MONROE MA717 Part Description
Manufacturer
Product Description

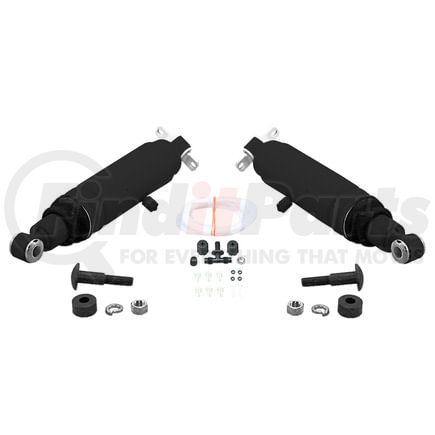

Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA717 Specifications
Product Attributes
| Compressed Length | 12.75 IN |
| Extended Length | 20.875 in |
| Travel Length | 8.125 in |
| Lower Mount Code | L1/CP3 |
| Lower Mount Type | L1/CP3 |
| Upper Mount Code | XP7 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Hydraulic Lockout | No |
| Parts Pack(s) | (2) P00576 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | No |
| Compressed Length | 323.8 MM |
| Extended Length | 530.2 MM |
| Travel Length | 206.4 MM |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
| Boot Included | Yes |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Grade Type | Premium |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598030801 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA717 Cross References
| Brand | Part Number |
|---|---|
| MA717MM, JB5Z78237A05A | |
| Buick | 22003121, 22003254, 22046424, 22046427, 22064048, 22064049, 22064104, 22064105, 22064107, 22064179, 22064183, 22064298, 22064299, 22064309, 22064310, 22064311, 22064400, 22064401, 22064433, 22064434, 22064435, 22064436, 22064601, 22064603, 22064630, 22181553, 88945177, 88945188, 88945821, 88945844, 88946013, 88946032, 88946558, 88946562 |
| Chevrolet | 22046423, 22046424, 22046426, 22046427, 22046428, 22046810, 22064040, 22064041, 22064042, 22064043, 22064044, 22064045, 22064100, 22064101, 22064264, 22064265, 22064298, 22064299, 22064400, 22064401, 22064412, 22064413, 22064421, 22064422, 22064433, 22064434, 22064435, 22064499, 22064600, 22064603, 22064618, 22064630, 22064856, 22140148, 22140213, 22181553, 22181559, 88945177, 88945188 |
| GABRIEL | 49334, 49152 |
| NAPA Shocks | MA717 |
| Oldsmobile | 22046424, 22046426, 22046427, 22064040, 22064041, 22064298, 22064299, 22064400, 22064401 |
| Pontiac | 12322219, 22046423, 22046424, 22046426, 22046427, 22064040, 22064041 |
MONROE MA717 Fits Vehicles
- Pontiac Grand Safari (1977-1978)
- Pontiac GTO (1973)
- Chevrolet Chevelle (1973)
- Pontiac Laurentian (1980-1981)
- Pontiac Safari (1987-1989)
- Pontiac Parisienne (1980-1986)
- Pontiac LeMans (1973-1977)
- Pontiac Grand Prix (1973-1977)
- Pontiac Grand LeMans (1975-1977)
- Pontiac Grand Am (1973-1975)
- Pontiac Catalina (1977-1981)
- Pontiac Bonneville (1977-1981)
- Oldsmobile Cutlass Supreme (1973-1977)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Cutlass Salon (1975-1977)
- Oldsmobile Custom Cruiser (1977-1992)
- Oldsmobile Cutlass (1973-1977)
- Chevrolet Monte Carlo (1973-1977)
- Chevrolet Malibu (1973-1977)
- Chevrolet Impala (1977-1982)
- Chevrolet Caprice (1977-1996)
- Buick Roadmaster (1991-1996)
- Buick Regal (1973-1977)
- Buick LeSabre (1986-1990)
- Buick Estate Wagon (1977-1979)
- Buick Electra (1982-1989)
- Buick Century (1973-1977)
